Qotom Multi COM Fanless Mini PC Q10100P J1900 N2920

Qotom Multi COM Fanless Mini PC Q10100P J1900 N2920

$82.00 USD
$0.00 USD $82.00 USD
Sale Sold out
Shipping calculated at checkout.
Q10100P series
Configuration

Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q190P S08 J1900 4 4 2.00Ghz 2M
Q192P S08 N2920 4 4 1.86Ghz 2M
Processor System
CPU Intel Bay Trail Processor
CPU TDP By CPU
Memory 1 × DDR3L SO-DIMM Socket
(Up to 8G, 1333/1600MHz)
Chipset By CPU
Graphics By CPU
LAN Chipset 2 × Realtek Gigabit LAN
Audio Realtek HD Audio
Watch Dog No

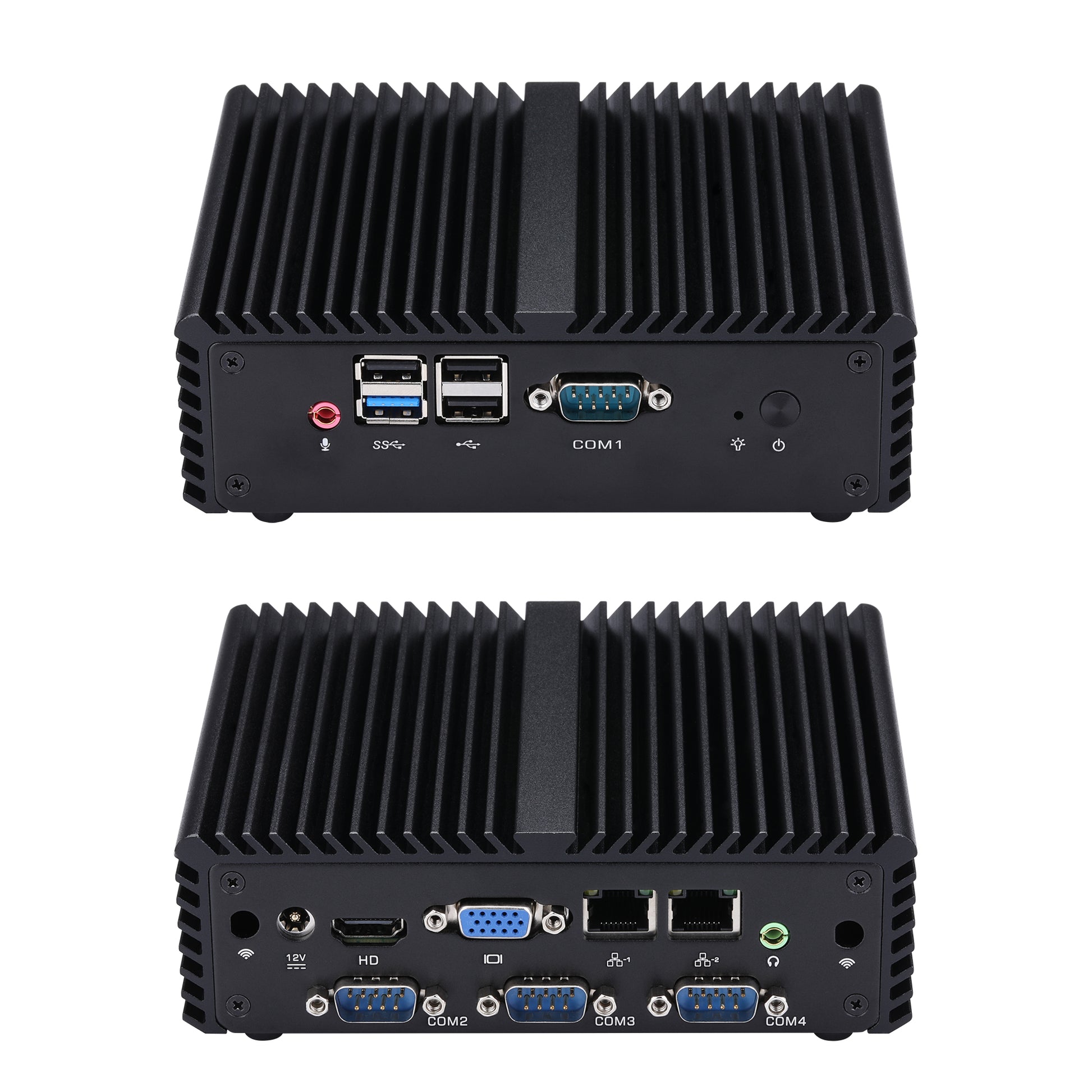

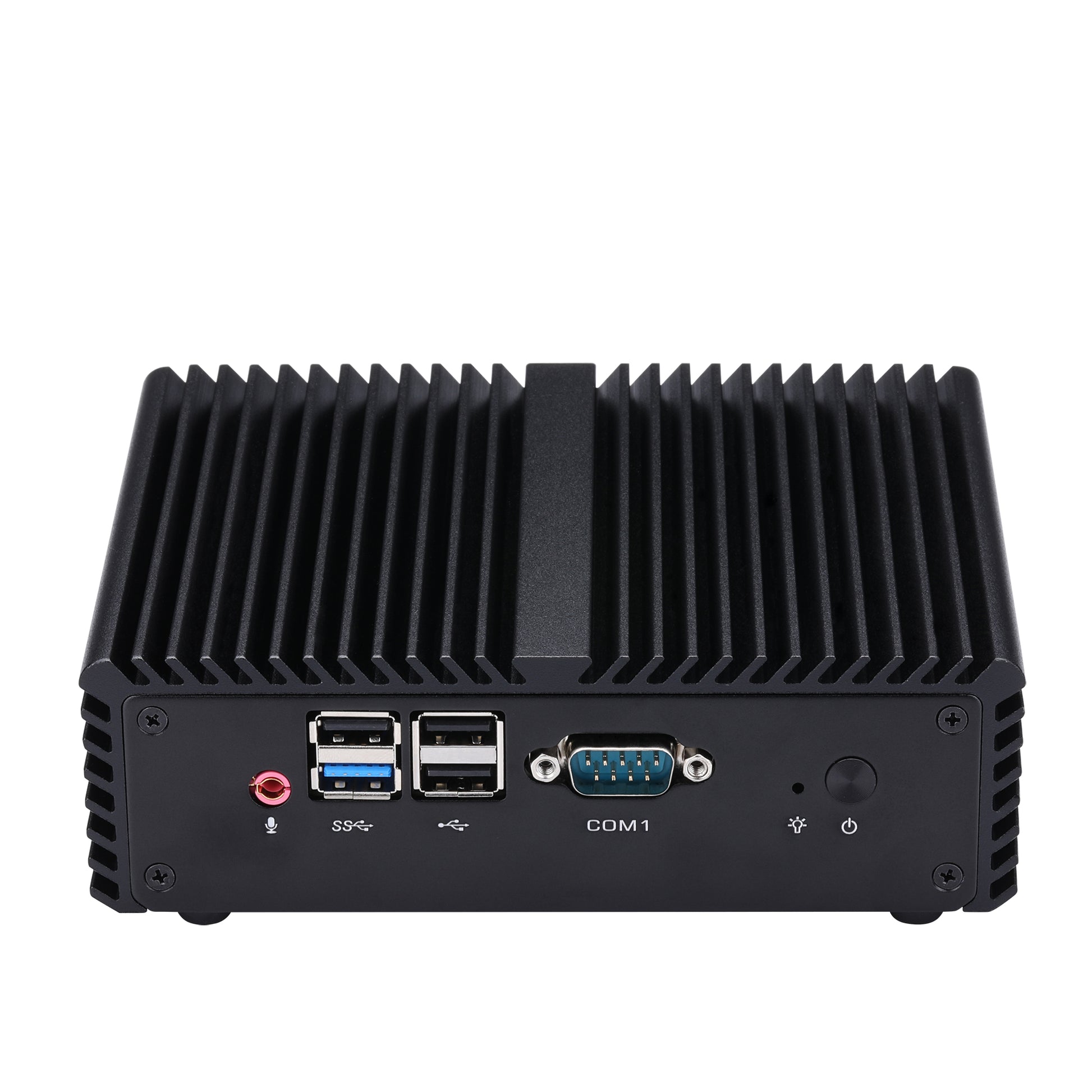

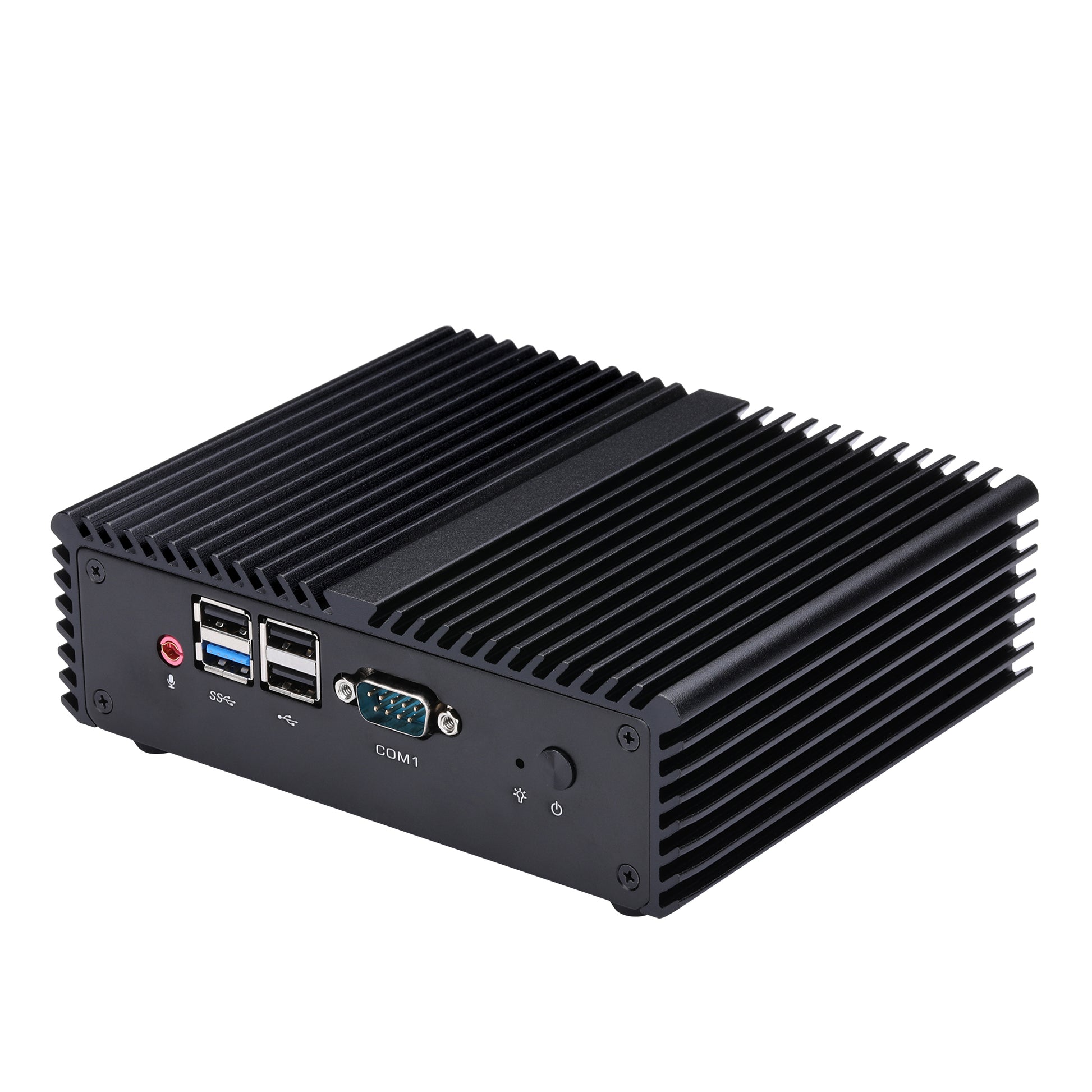

Front I/O
Power Button 1
LED 1 × Power LED
Serial Port 1 × RS-232 (COM1)
USB 1 × USB 3.0, 3 × USB 2.0
Audio 1 (Mic-in)

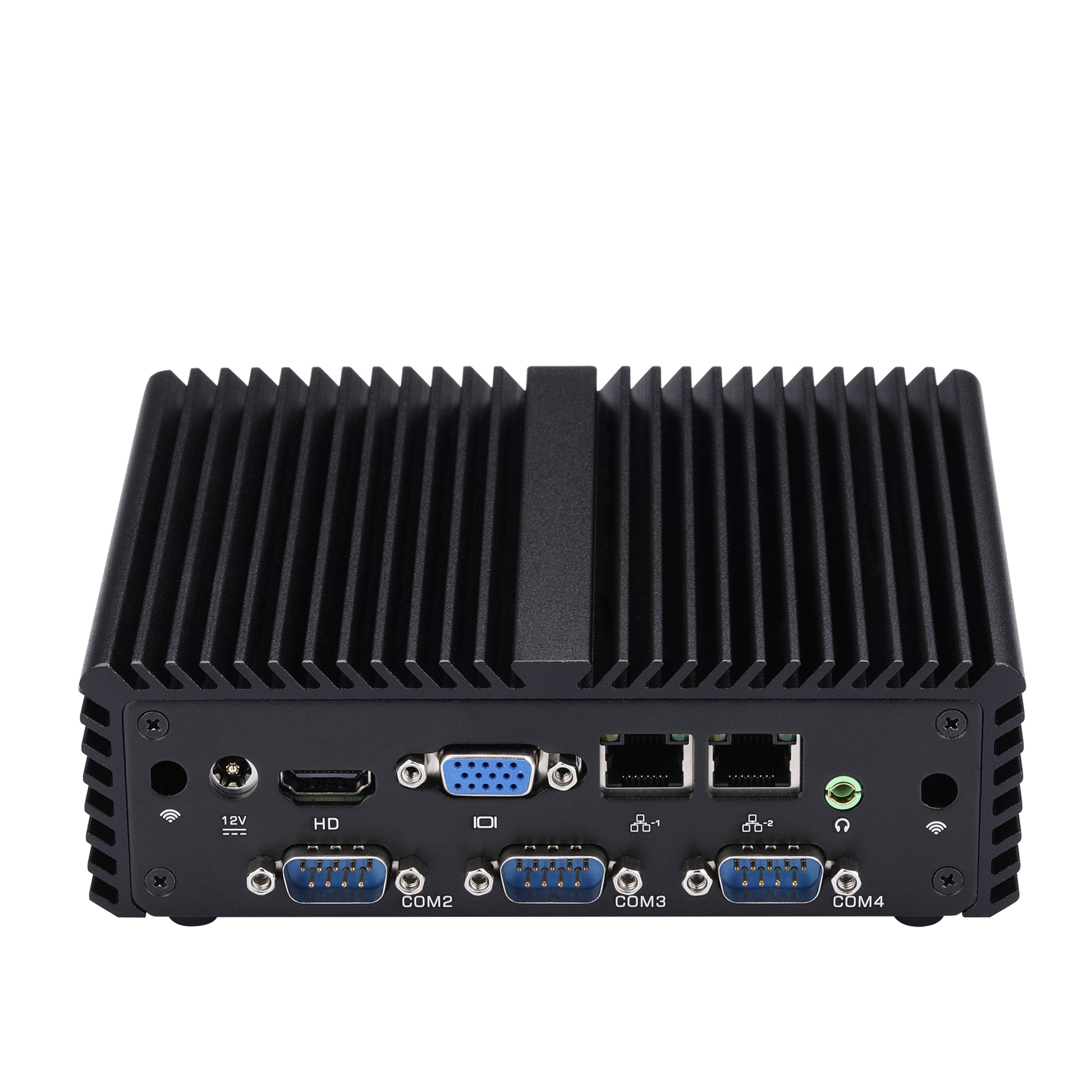

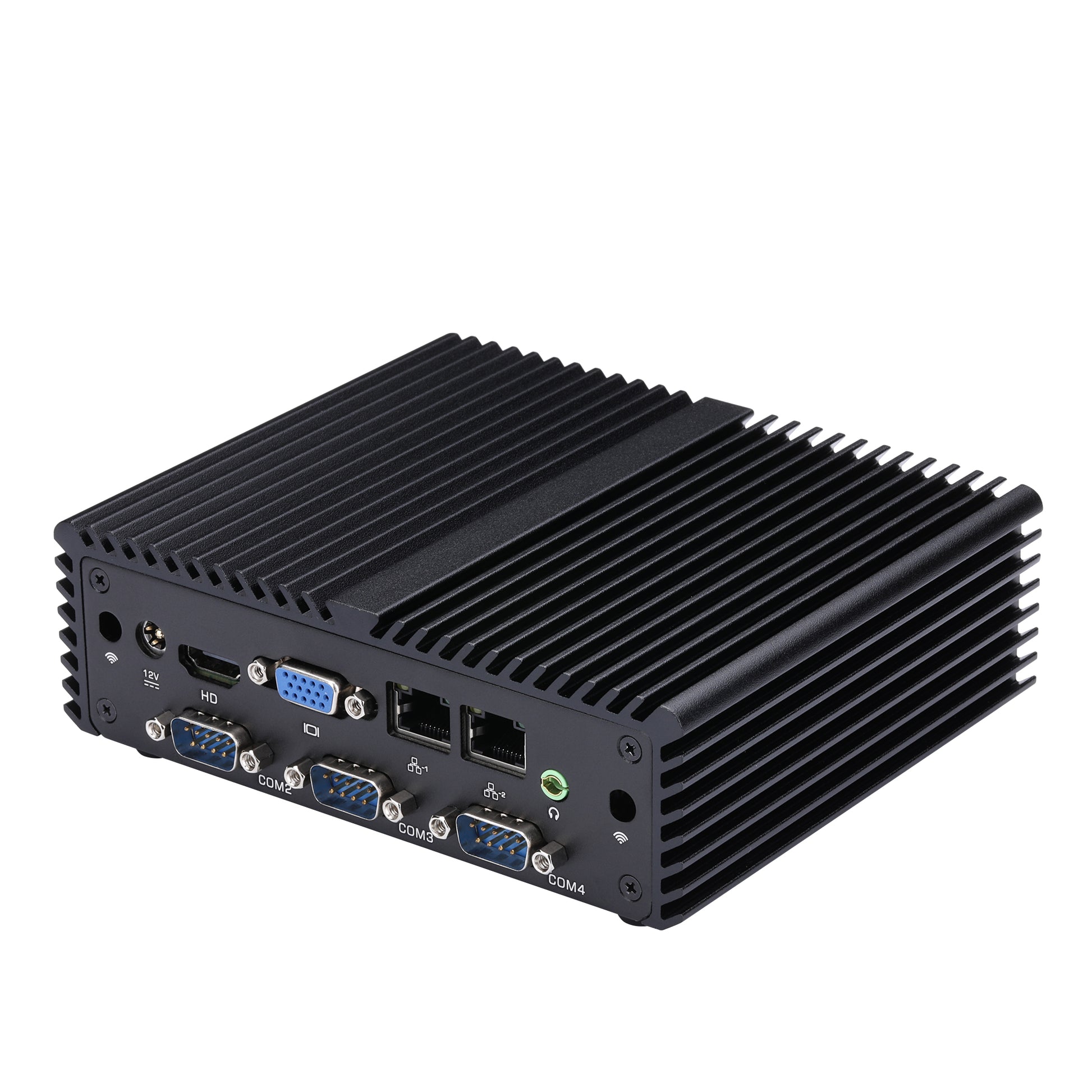

Rear I/O
Power 1 × DC Jack
Video Output 1 × HDMI, 1 × VGA
LAN 2 × Realtek Gigabit LAN
USB 0
Audio 1 (Line-out)
Serial Port 3 × RS-232 (COM2, COM3, COM4)
Storage
Type 1 × 2.5-inch HDD/SSD
1 × Mini PCIe for mSATA SSD
Expansion
mSATA 1 × Full Length Mini PCIe for SSD
Mini PCIe 1 × Half-length Mini PCIe for Wi-Fi
SIM Card Slot 0
AutoStart Jumper No
VGA 0
GPIO No
DC-in No
Power Requirement
Power Adapter 12V3A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension S08: 155 × 127 × 48mm
Mounting VESA Mounting Bracket
Kensington Lock No
Cooling Mode Fanless Design
OS Support, Drivers, Bios
OS Windows 7, Windows 8, Windows 10, Linux
Drivers Visit
Bios Visit
