Qotom OPS Q31200OPS series Computer i5 12450H

Qotom OPS Q31200OPS series Computer i5 12450H

$215.00 USD
$0.00 USD $215.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should by paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Max Turbo Frequency Cache
Q51251OPS - i5-12450H 8 12 4.4Ghz 12M
Processor System
CPU Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
CPU TDP By CPU
Memory 1 × DDR4 SO-DIMM Socket
(Up to 32G, 3200MHz)
Chipset By CPU
Graphics By CPU
LAN Chipset 1 × Intel I225-V/I226-V 2.5 Gigabit LAN
Audio Cmedia USB Audio（HS100B）
Watch Dog No

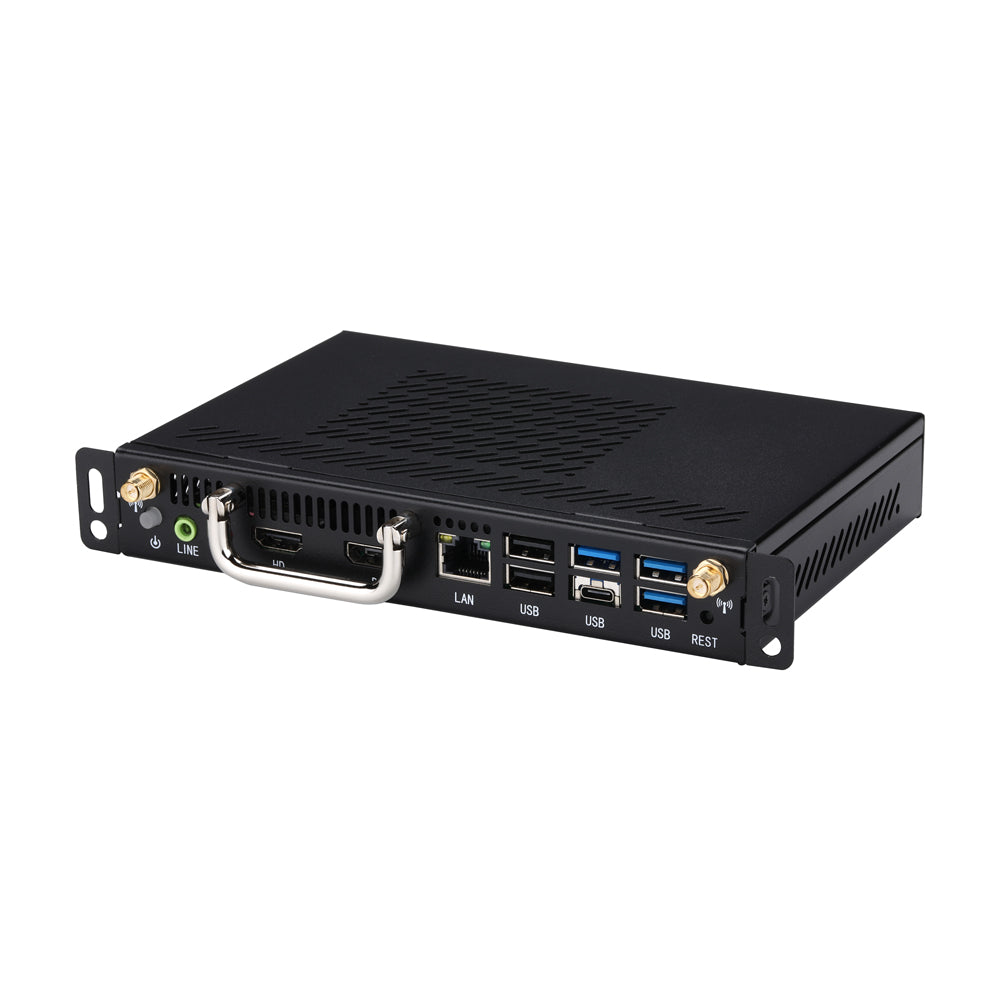

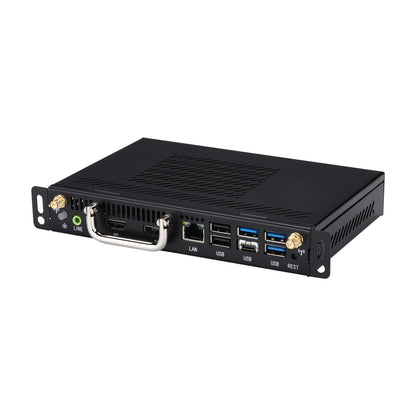

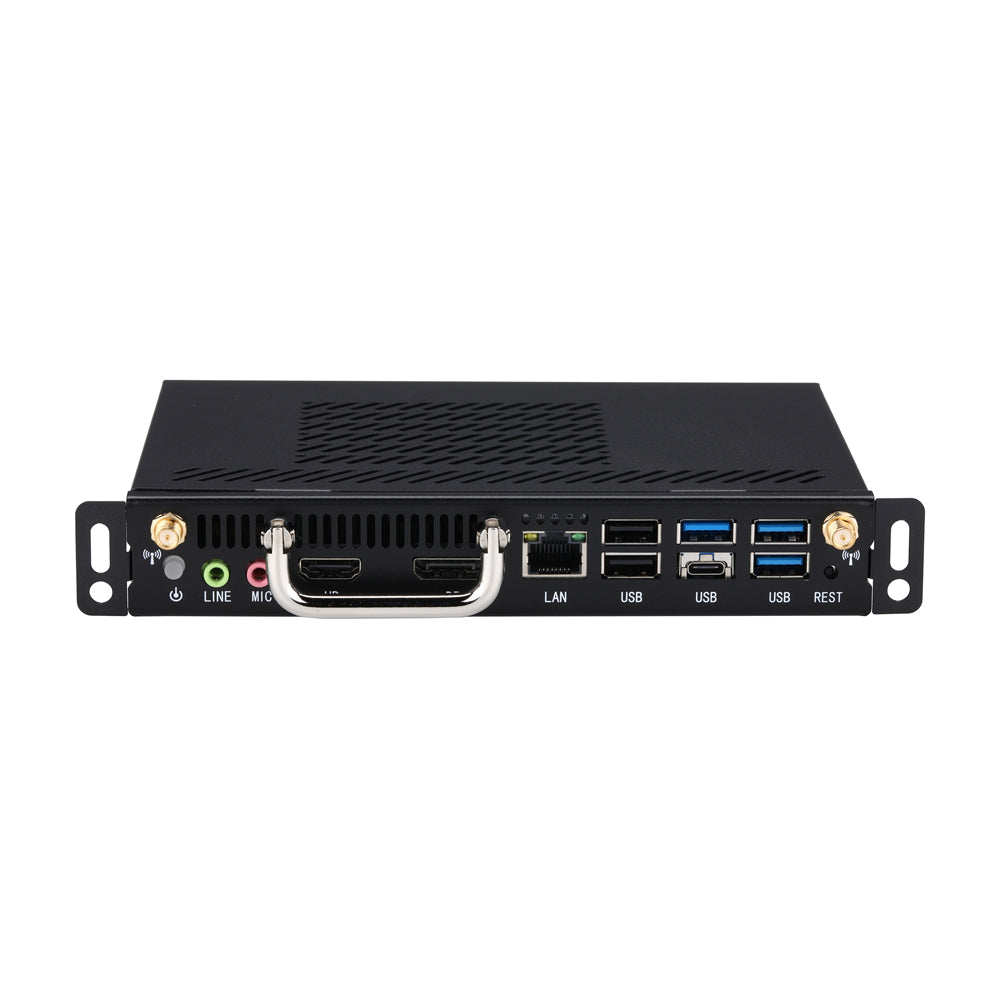

Front I/O
Audio 1 × Mic-in, 1 × Line-out
Video Output 1 × Display Port 1.4, 1 × HDMI 2.0
Type C 1 × Type C (USB3.0 , Display Port)
USB 2 × USB 3.0, 2 × USB 2.0
LAN 1 × Intel I225-V/I226-V 2.5 Gigabit LAN
Power Button 1 × Power Button, 1 × Reset Button
LED 1 × Power LED, 1 × HDD LED

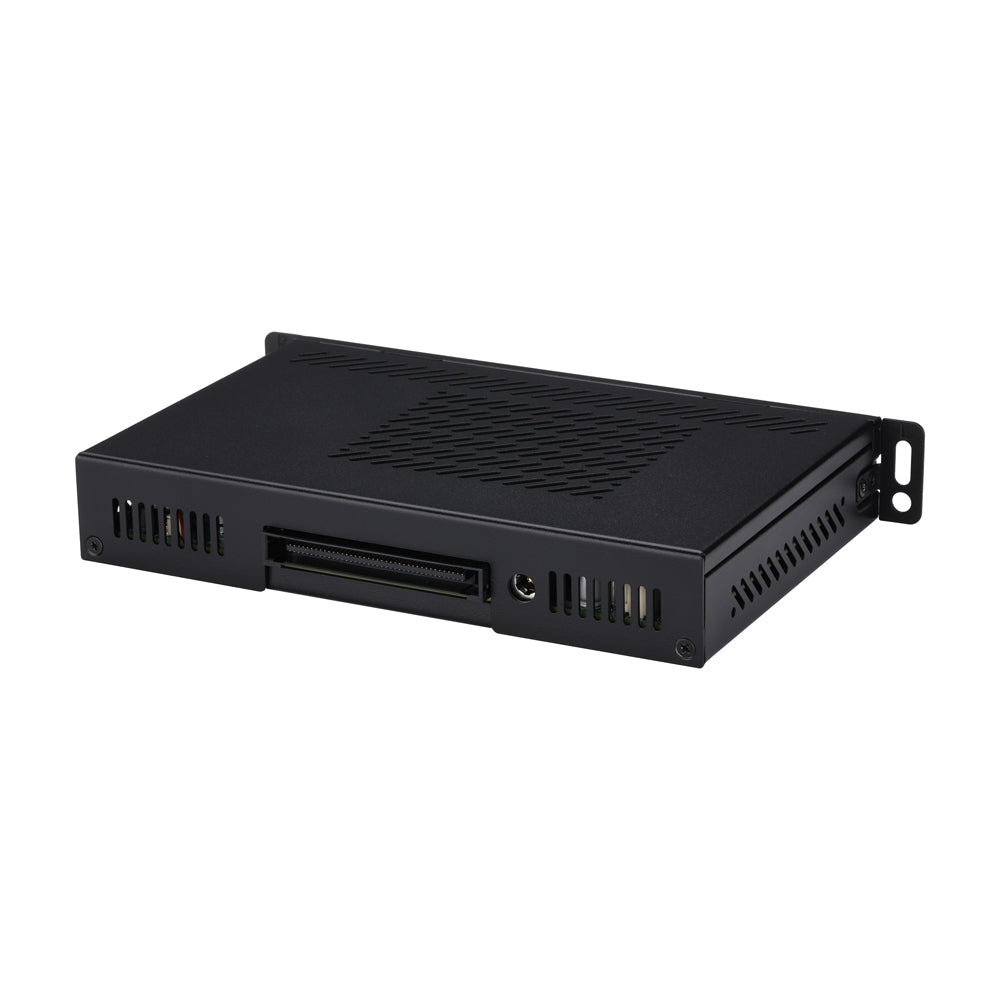

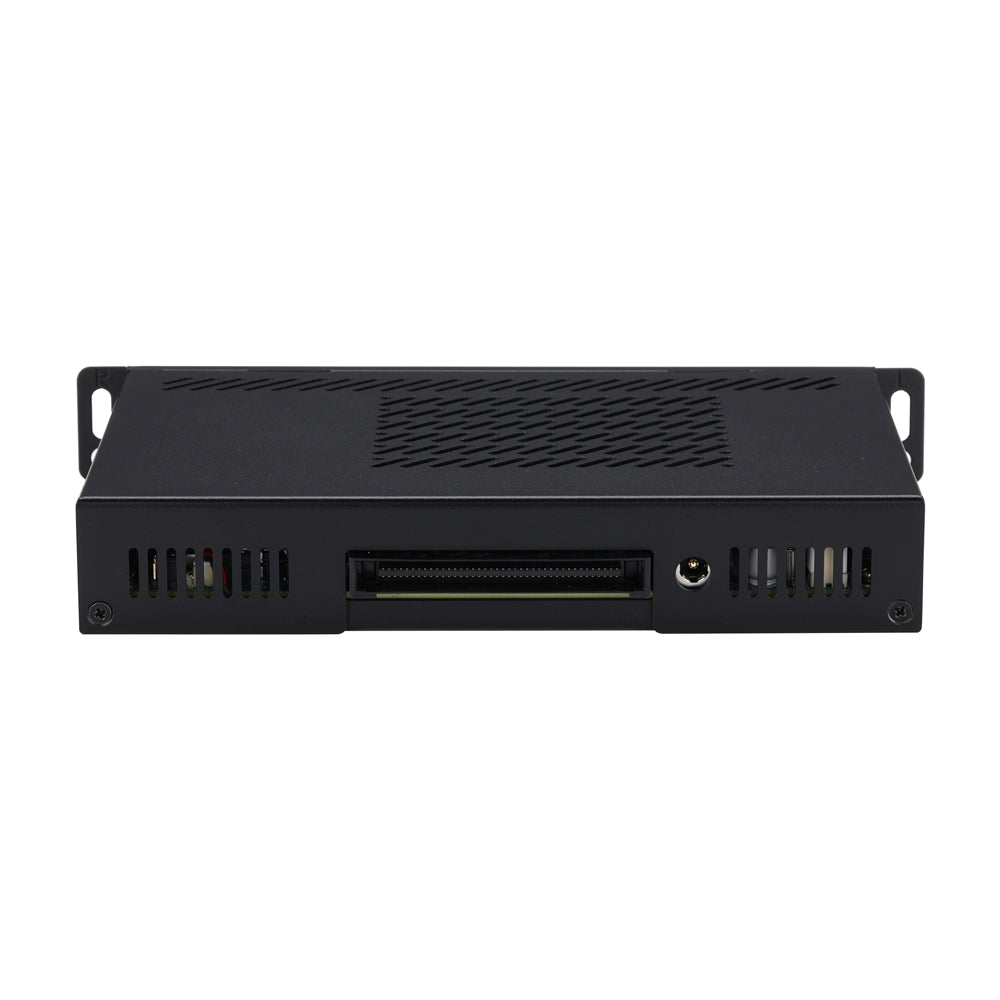

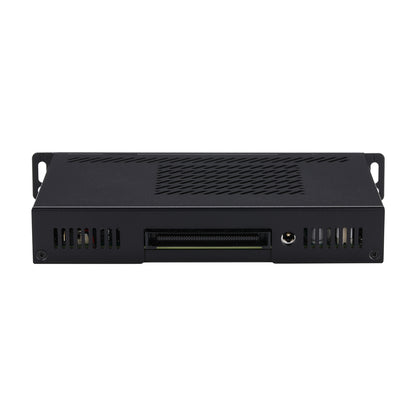

Rear I/O
Power 1 × DC Jack
JAE 1 × JAE Port (80pin)
Storage
Type 1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
WiFi
WiFi module 1 (incl. antenna and feeder)
Expansion
M.2 1 × M.2 for SSD (M key, Type: 2280)
M.2 1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot 0
AutoStart Jumper 0
CMOS Clear Jumper 0
GPIO 0
RS-485 0
DC-in 0
Power Requirement
Power Adapter 19V
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~45°C
Non-Operating Temp -40°C~80°C
Humidity 10%~95%
Mechanical
Material Aluminium Alloy
Dimension 118 × 180 × 30mm
Weight 0.74kg
Mounting None
Packaging Dimension 282 × 257 × 79mm
Kensington Lock No
Cooling Mode Fan
OS Support, Drivers, Bios
OS UEFI Windows 10, UEFI Linux
Drivers -
Bios -
