Qotom Multi LAN Router PC Q31500ST X540 Ultra 5 125H 10G SFP+

Qotom Multi LAN Router PC Q31500ST X540 Ultra 5 125H 10G SFP+

$583.00 USD
$0.00 USD $583.00 USD
Sale Sold out
Shipping calculated at checkout.
Q31500ST Series
Configuration

Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Max Turbo Frequency Cache
Q31551ST S18 Core Ultra 5 125U 12 14 4.30GHz 12M
Q31571ST S18 Core Ultra 7 155U 12 14 4.80GHz 12M
Q51551ST S18 Core Ultra 5 125H 14 18 4.50Ghz 18M
Q51571ST S18 Core Ultra 7 155H 16 22 4.80Ghz 24M

Processor System
CPU • Intel Meteor Lake U/H Ultra Processor(Series 1)
• Intel Arrow Lake U/H Ultra Processor(Series 2)
CPU TDP By CPU
Memory 2 × DDR5 SO-DIMM Socket (Up to 96G)
Chipset By CPU
Graphics By CPU
NPU By CPU
LAN Chipset 6 × Intel I225-V/I226-V 2.5 Gigabit LAN
2 × Intel X540 10 Gigabit LAN
2 × Intel JL82599ES 10 Gigabit SFP+
Audio Realtek HD Audio
Watch Dog Yes

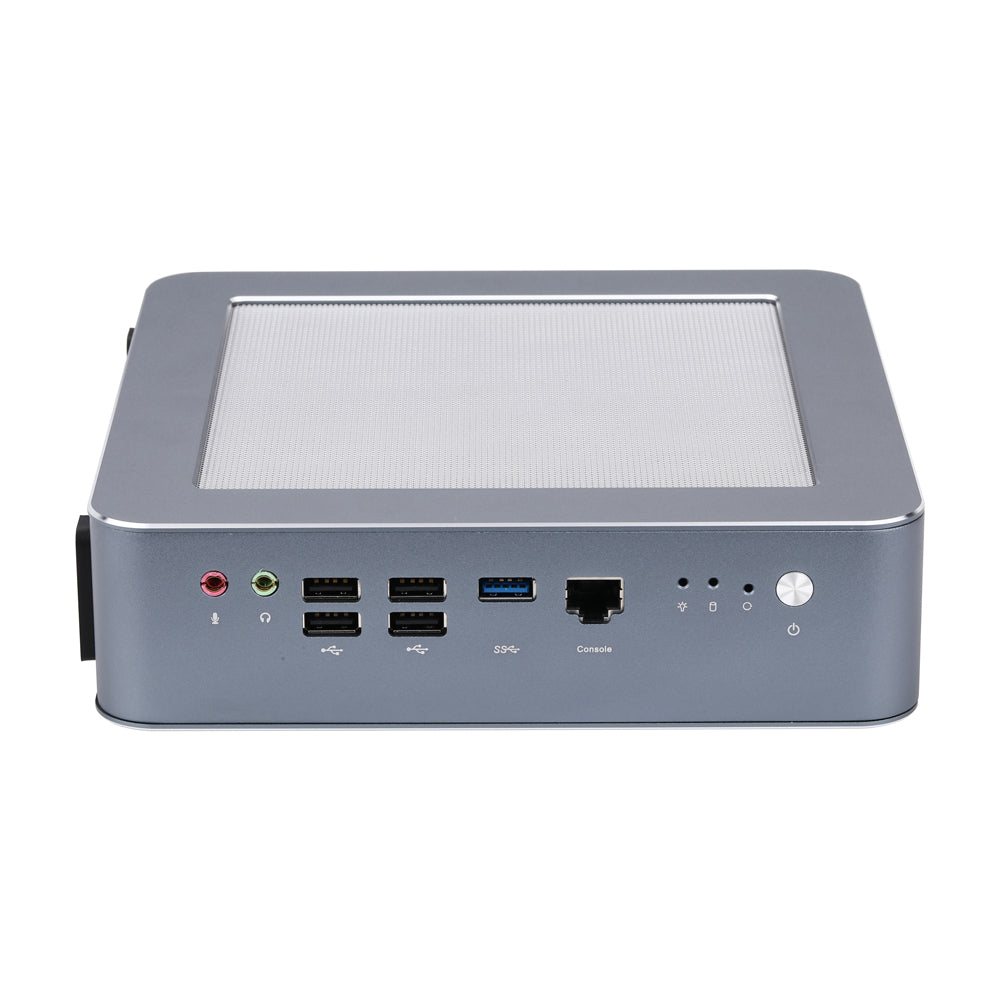

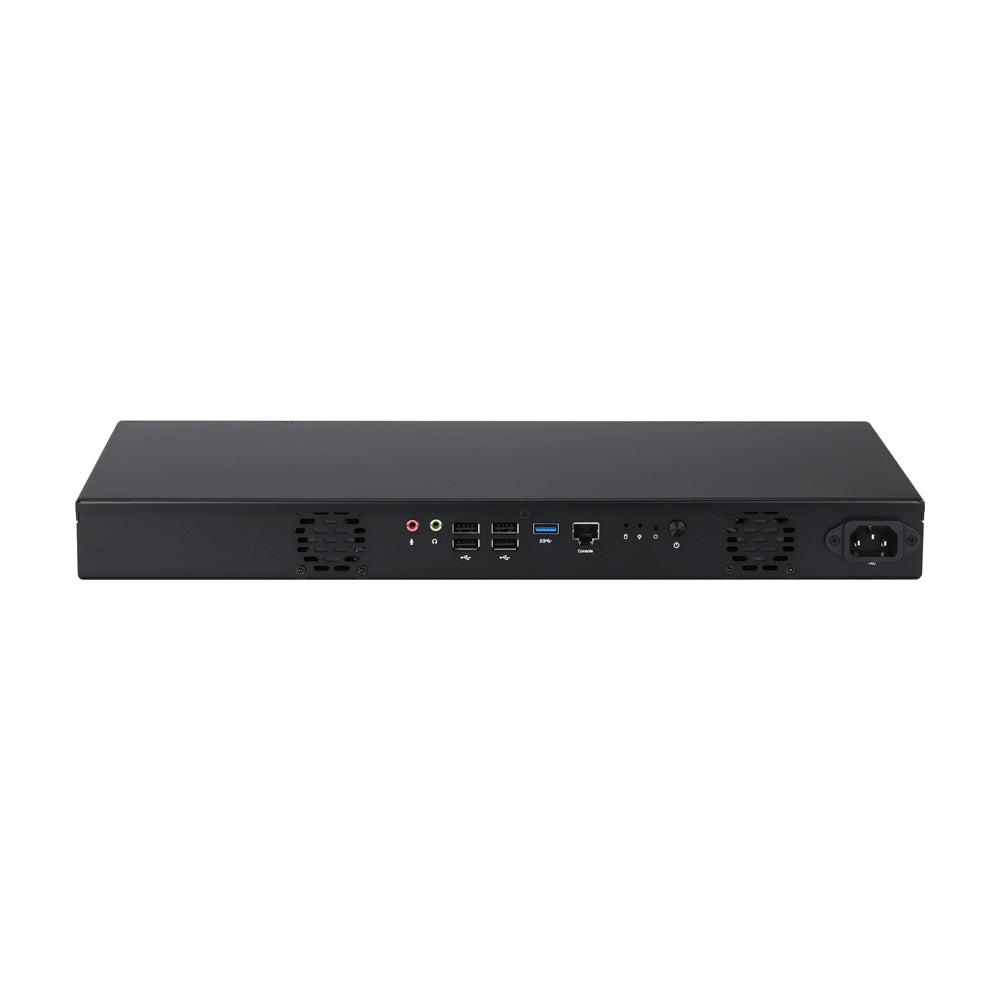

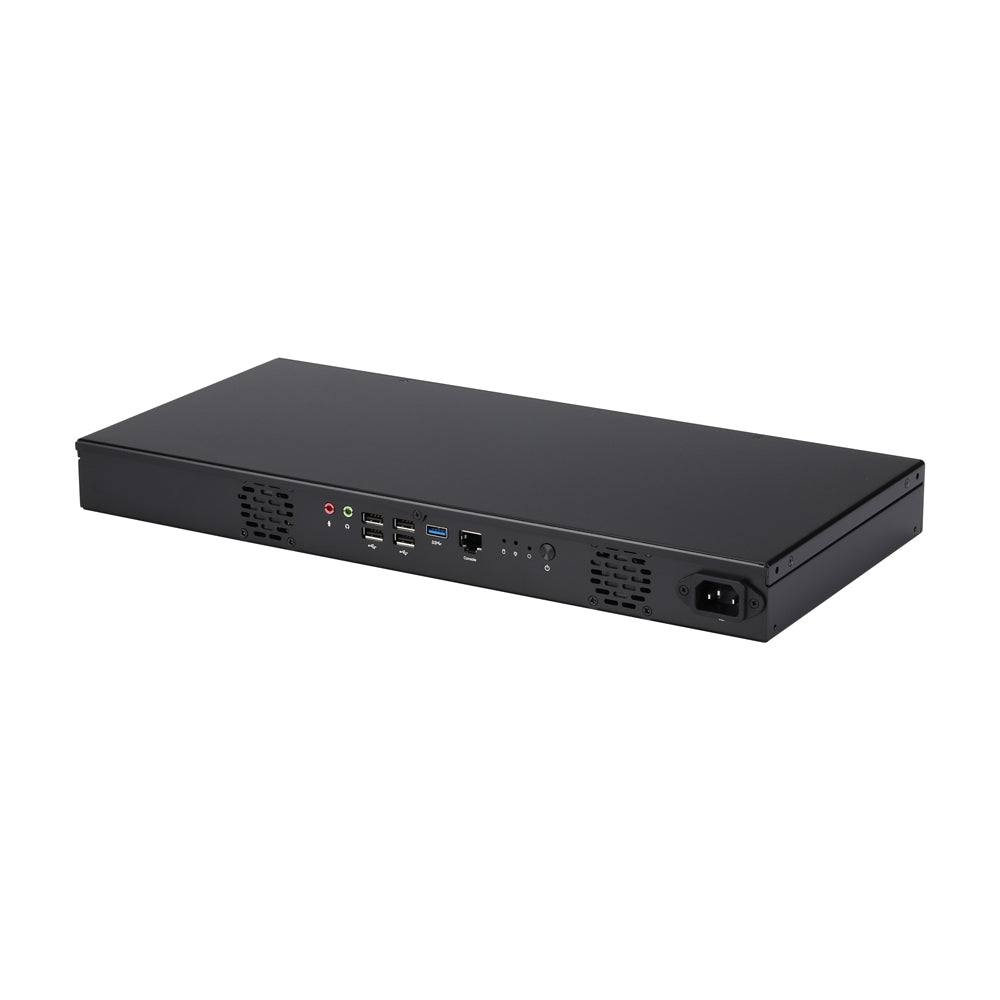

Front I/O
Power Button 1 × Power Button, 1 × Reset Button
LED 1 × Power LED, 1 × HDD LED
Serial Port 1 × RS-232 Port (RJ-45)
USB 1 × USB 3.0, 4 × USB 2.0
SIM Card Slot 1
Audio 1 × Mic-in, 1 × Line-out

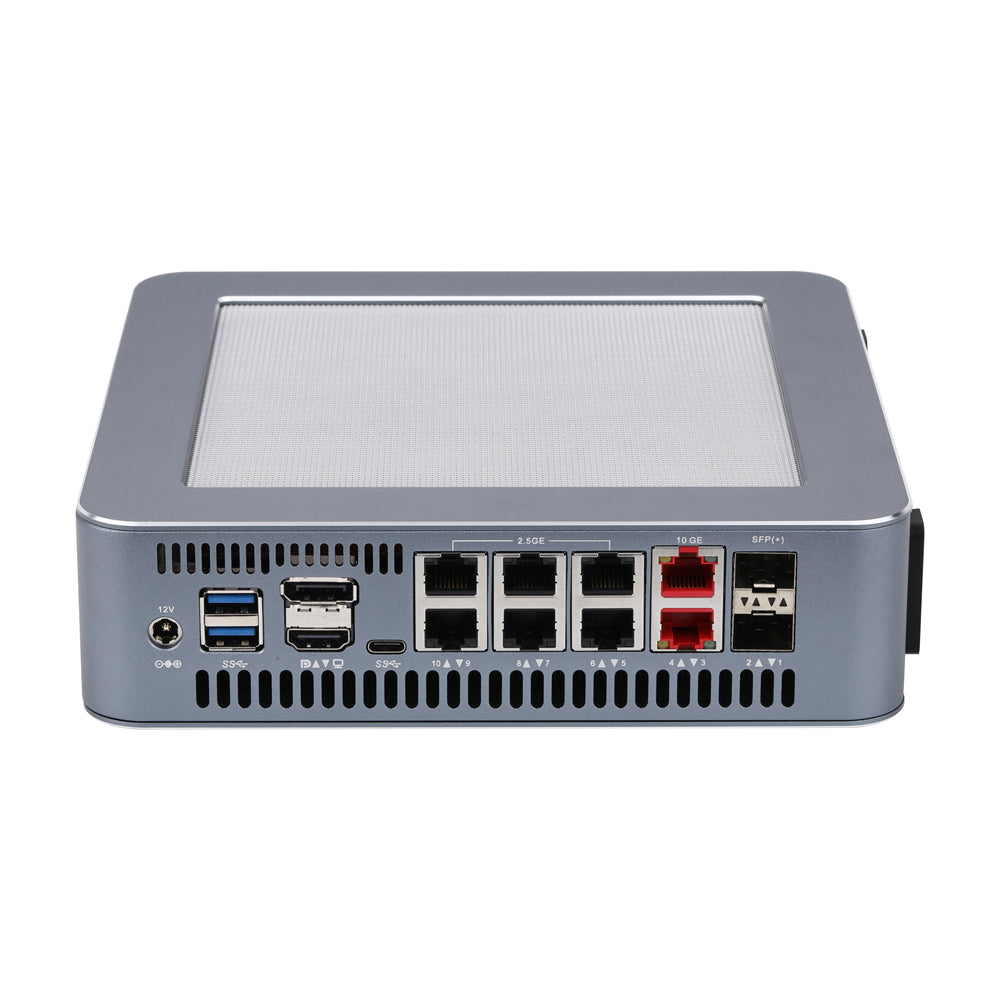

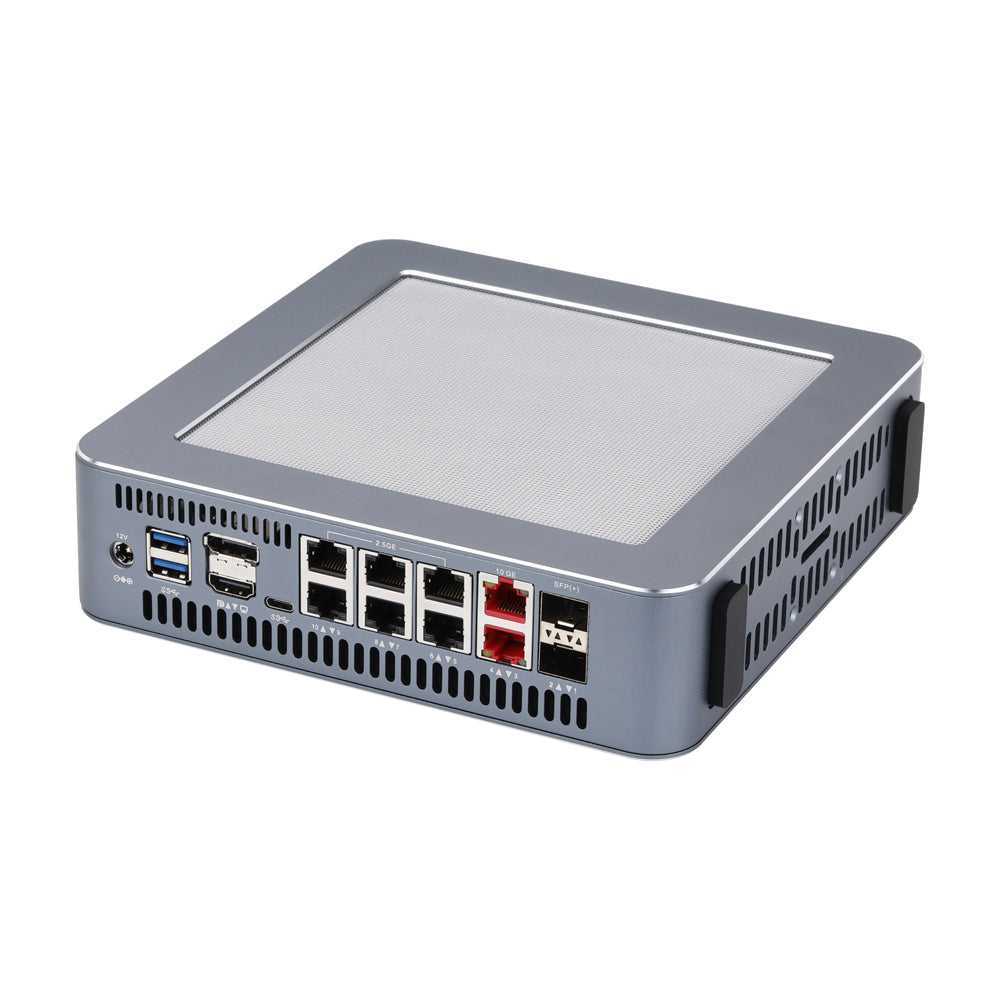

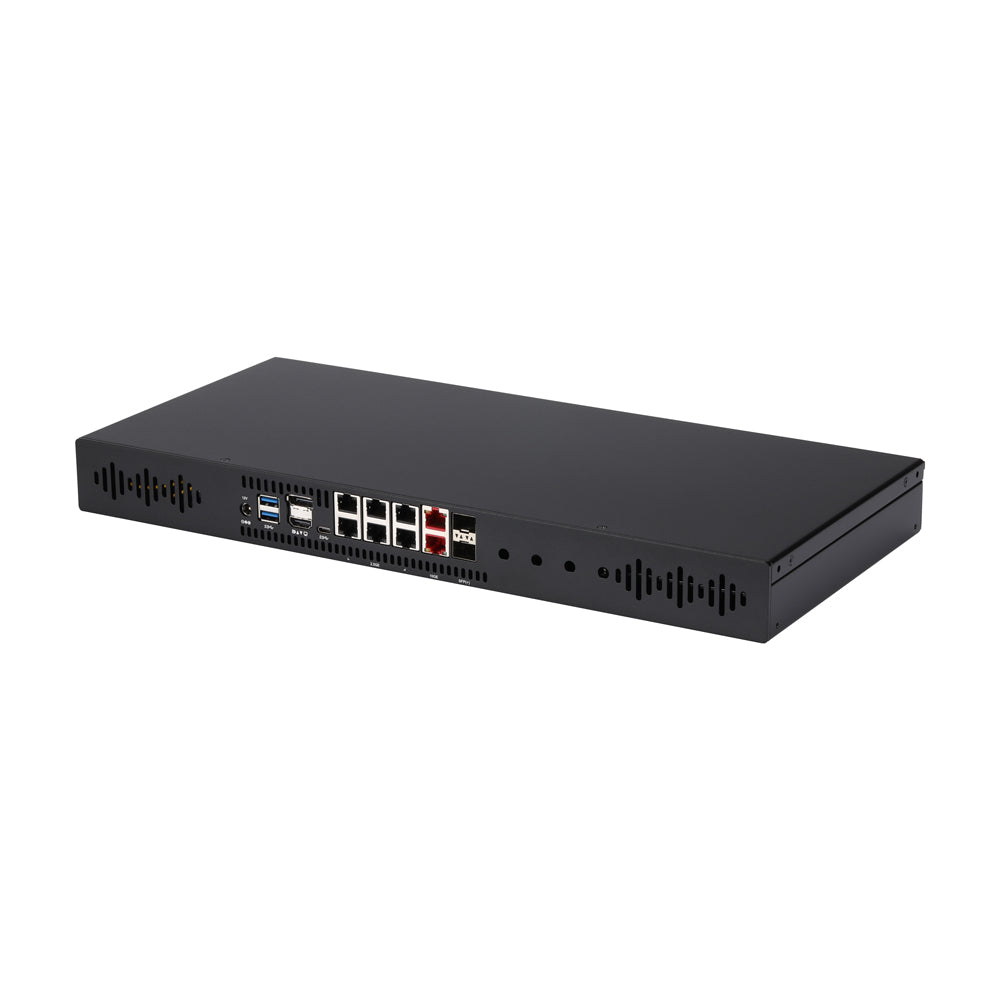

Rear I/O
Power 1 × DC Jack
USB 2 × USB 3.0, 1 × Type C (USB 3.0)
Video Output 1 × Display Port, 1 × HDMI
LAN 6 × Intel I226-V 2.5 Gigabit LAN
2 × Intel X540 10 Gigabit LAN
Max. speed of 12Gbps for both interfaces
SFP+ 2 × Intel JL82599ES 10 Gigabit SFP+
Max. speed of 12Gbps for both interfaces
Storage
Type 1 × 2.5-inch HDD/SSD
2 × M.2 for SSD (M key, Type: 2280)
Expansion
M.2 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 1)
1 × M.2 for 4G/5G (B key, Type: 3042/3052)
PCIe 1, PCIe slot (Type: X16, PCIe 5.0 × 8)
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper Yes, 1 × 3Pin, Pitch 2.0mm
Power Requirement
Power Adapter 19V4.74A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension S18: 200 × 200 × 53mm
Mounting VESA Mounting Bracket
Kensington Lock Yes
Cooling Mode Fan
OS Support, Drivers, Bios
OS UEFI Windows 10, UEFI Linux
Drivers Updating
Bios Visit
