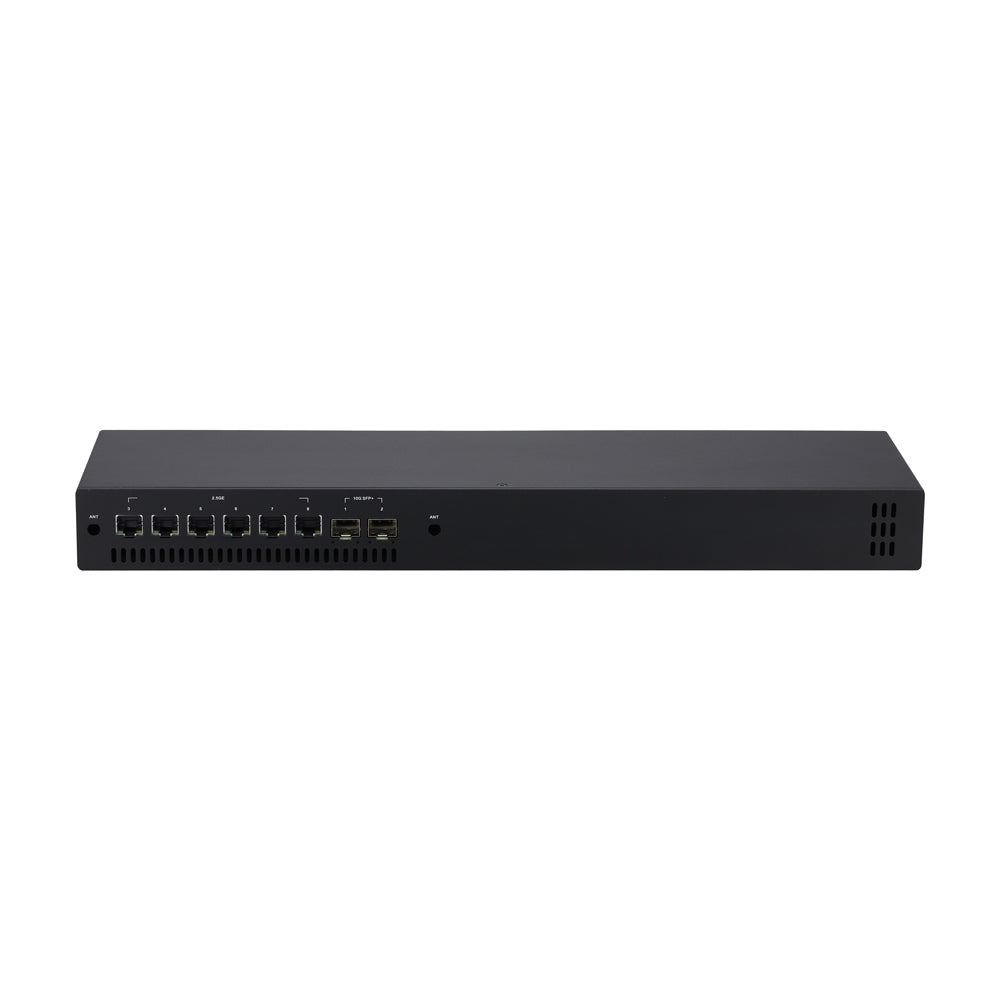

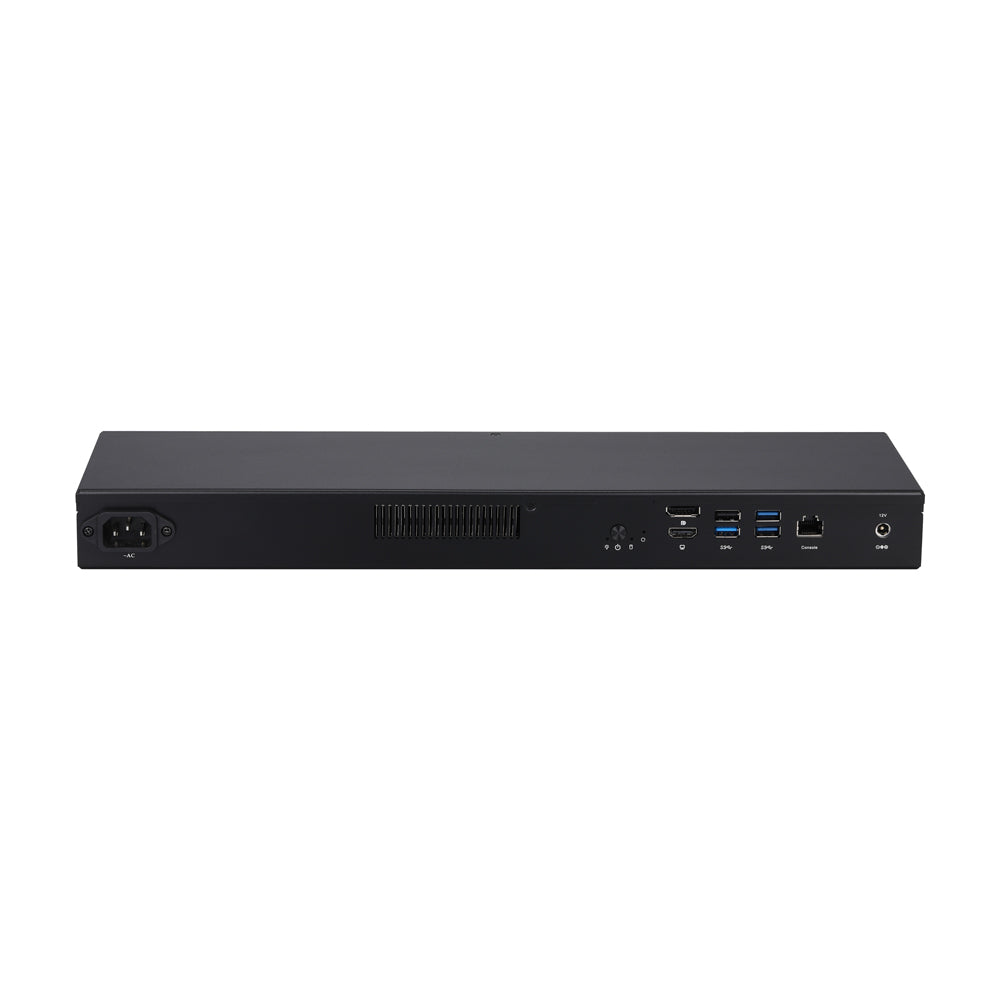

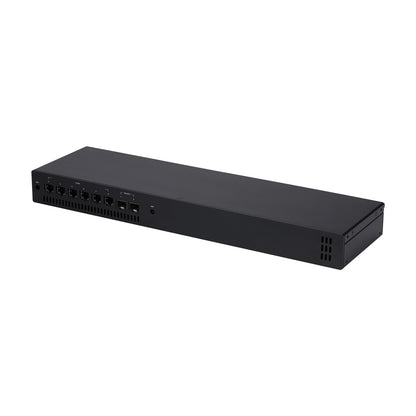

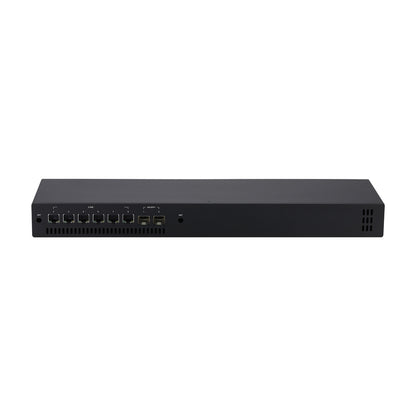

Qotom Multi LAN Router PC Q30900SE JL82599ES SFP+ 5405U i3 10110U 2.5G 1U Rack

Qotom Multi LAN Router PC Q30900SE JL82599ES SFP+ 5405U i3 10110U 2.5G 1U Rack

$219.00 USD
$0.00 USD $219.00 USD
Sale Sold out
Shipping calculated at checkout.
Q30900SE Series
Configuration
Chassis

Urgent information!

Due to the extremely volatile cost of RAM and SSD (especially RAM), the default is to sell barebones systems. If you require a fully configured system, please contact me for a real-time quote. Thank you!



Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q30912SE S13/1U 4305U 2 2 2.20Ghz 2M
Q30921SE S13/1U 5405U 2 4 2.30Ghz 2M
Q30931SE S13/1U 8145U 2 4 2.10Ghz 4M
Q30951SE S13/1U 8265U 4 8 1.60Ghz 6M
Q30971SE S13/1U 8565U 4 8 1.80Ghz 8M
Q30952SE S13/1U 8260U 4 8 1.60Ghz 6M
Q31011SE S13/1U 5205U 2 2 1.90Ghz 2M
Q31012SE S13/1U 5305U 2 2 2.30Ghz 2M
Q31021SE S13/1U 6405U 2 4 2.40Ghz 2M
Q31031SE S13/1U 10110U 2 4 2.10Ghz 4M
Q31051SE S13/1U 10210U 4 8 1.60Ghz 6M
Q31071SE S13/1U 10610U 4 8 1.80Ghz 8M
Q31072SE S13/1U 10810U 6 12 1.10Ghz 12M
Q31073SE S13/1U 10710U 6 12 1.10Ghz 12M
Processor System
CPU • Intel 8th Whiskey Lake-U Processor
• Intel 8th Coffee Lake-U Processor
• Intel 10th Comet lake-U Processor
CPU TDP By CPU
Memory 1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
Chipset By CPU
Graphics By CPU
LAN Chipset 6 × Intel I225-V/I226-V 2.5 Gigabit LAN

2 × Intel JL82599ES SFP+
Watch Dog Yes
Front I/O
Power Button 1 × Power Button, 1 × Reset Button
LED 1 × Power LED, 1 × HDD LED
USB 3 × USB 3.0, 1 × USB 2.0
Power 1 × DC Jack
Video Output 1 × HDMI, 1 × Display Port
Serial Port 1 × RS-232 Port (RJ-45)
Rear I/O
LAN 6 × Intel I225-V/I226-V 2.5 Gigabit LAN
SFP+ 2 × Intel JL82599ES SFP+
Max. speed of 12Gbps for both interfaces
Storage
Type 1 × 2.5-inch HDD/SSD
1 × M.2 for SSD, (M key, Type: 2280, PCIe 3.0 × 1)
Expansion
M.2 1 × M.2 for SSD
(M key, Type: 2280, PCIe 3.0 × 1)
M.2 1 × M.2 for 4G/5G
(B key, Type: 3042/3052)
M.2 1 × M.2 for Wi-Fi (E key, Type: 2230)
Only For Core Series
SIM Card Slot 1
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper Yes, 1 × 3Pin, Pitch 2.0mm
Power Requirement
Power Adapter 12V5A or 12V7A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension 196 × 122 × 47mm (S13), 440 × 113 × 44mm (1U)
Mounting VESA Mounting Bracket
Cooling Mode Fanless Design (we suggest add A Fan assist the heat dispatch on S13), FAN design on 1U.
OS Support, Drivers, Bios
OS Windows 10, Linux
Drivers Updating
Bios Updating
