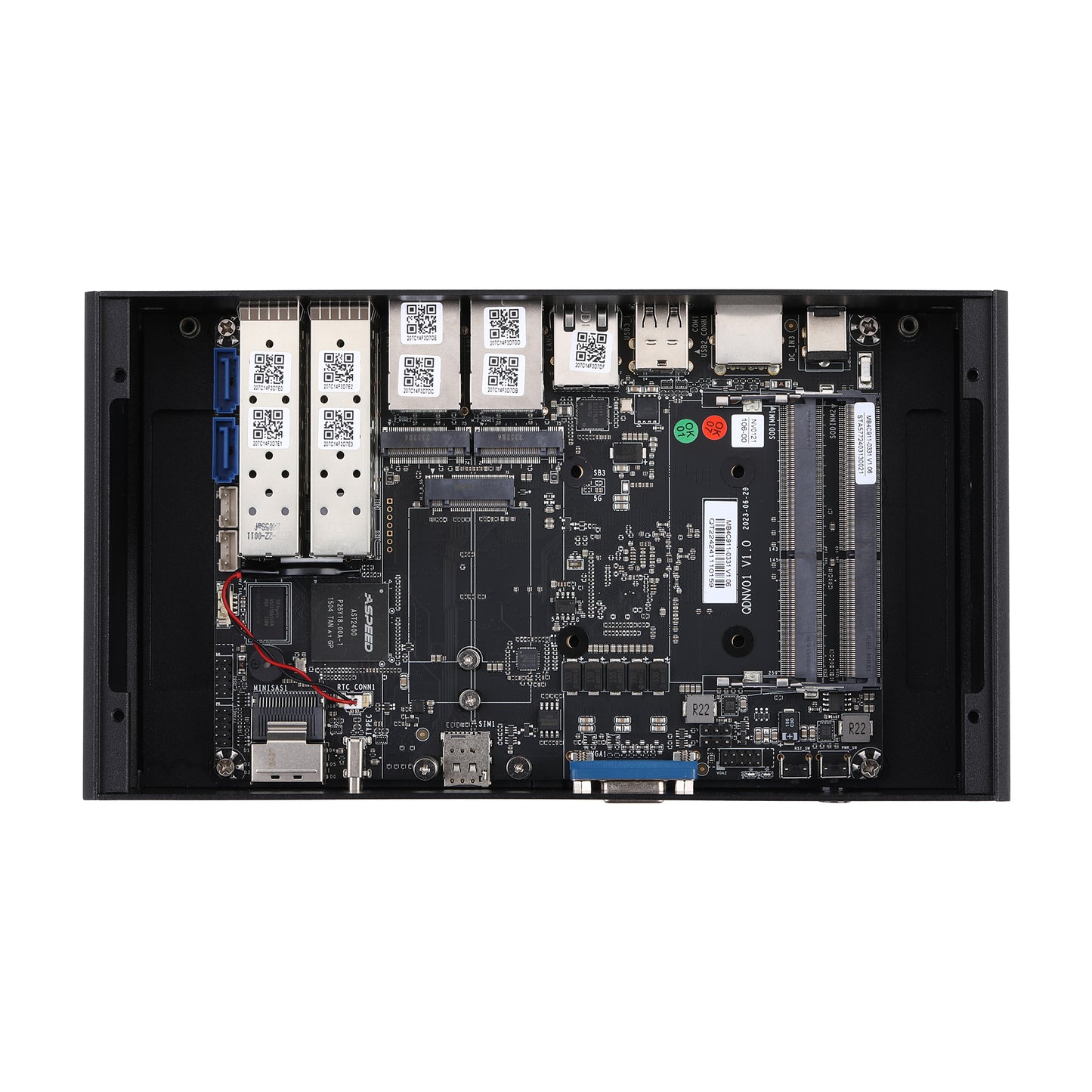

Qotom Multi LAN Router PC Q20300S9 Series C3758R C3808 10G SFP+

Qotom Multi LAN Router PC Q20300S9 Series C3758R C3808 10G SFP+

$210.00 USD
$0.00 USD $210.00 USD
Sale Sold out
Shipping calculated at checkout.
Q20300G9
Chassis
Configuration


Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should by paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads CPU TDP Base Frequency Cache
Q20311G9 S20 / 1U C3338R 2 2 10.5W 1.80Ghz 4M
Q20321G9 S20 / 1U C3558R 4 4 17W 2.40Ghz 8M
Q20322G9 S20 / 1U C3558 4 4 16W 2.20Ghz 8M
Q20331G9 S20 / 1U C3758R 8 8 26W 2.40Ghz 16M
Q20332G9 S20 / 1U C3758 8 8 25W 2.20Ghz 16M
Q20342G9 S20 / 1U C3808 12 12 25W 2.00Ghz 12M
Q20352G9 S20 / 1U C3908 16 16 31W 2.00Ghz 16M
Processor System
CPU Intel Denverton Processor
CPU TDP By CPU
Memory 2 x DDR4 SO-DIMM Socket
(Up to 64G, 2400MHz, Support ECC ram)
Chipset By CPU
Graphics ASPEED AST2400
LAN Chipset 5 x Intel I225-V/I226-V 2.5 Gigabit LAN, 4 x SFP+
Audio No
Watch Dog Yes
Front I/O
Power Button 1 x Power Button, 1 x Reset Button
LED 1 x Power LED, 1 x HDD LED
VGA 1 x DB15
SIM Slot 1 x Nano SIM Slot
Type C 1 x Type C (USB 3.0 signal only)
Mini SAS 1 x Mini SAS (SFF8087)
Rear I/O
Power 1 x DC Jack
Serial Port 1 x RS-232 (RJ-45)
USB 1 x USB 3.0, 1 x USB 2.0
LAN 5 x Intel I225-V/I226-V 2.5 Gigabit LAN
SFP+ 4 x 10G SFP+
Storage
Type 2 x 2.5-inch HDD/SSD
2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
Expansion
M.2 1 x M.2 for 4G/5G (B key, Type: 3042/3052)
M.2 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2)
SIM Card Slot 0
AutoStart Jumper No
CMOS Clear Jumper No
GPIO No
RS-485 0
DC-in No
Power Requirement
Power Adapter 12V5A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension S20: 221 x 121 x 62mm
1U Rack: 440 x 127 x 44mm

Cooling Mode

 Fan (1U Rack)
Fanless (S20)
Mounting S20: VESA bracket
1U Rack: Ear bracket
Kensington Lock No
OS Support, Drivers, Bios
OS Windows 10, Windows 11, Linux
Drivers Visit
Bios Visit
FAQ
1. How to Set Up Automatic Start After Power Connected? BIOS - IntelRCSetup - South Bridge Chipset Configuration - State After G3 - Power on - Save and Reboot

2. one of SFP+ port doesn't work, how to solve? Why it was happened?

 solder R472 resistor and R473 resistor, Resistance rating is SMD RES 0R ±5% 0402, problem can be solved well.
In fact, these 2 sets of resistors were already completed when we first designed them, but during the sales process, we received some customer feedback that there were compatibility issues between SFP+ modules and our products, so we found a solution and removed these2 sets of resistors by default. This step can be compatible with most modules, but not all (we cannot predict which SFP+ module each buyer will use). Sometimes you need to solder it back to solve the problem.
3. After installing my own RAM, seems the boot speed is very slow? Correct. RAM of different brands will have different boot speeds when first time, but will be normal when second time. Details please refer to this link Visit
4. How to update BIOS? Please view this link Bios update
5. Is there a WiFi module and its antenna and feeder inside? It supports WiFi but it is not included by default, please contact me if you need it.
6. Does the product include optical modules? Optical modules come in different brands and models, and are generally configured by customers based on their preferences. If you need us to provide them, please consult me before purchasing.
7. Does it support pfsense? Yes, it support pfsense, Windows Server 19, Opnsense, PVE, etc.
