Qotom Multi LAN Router Mini PC Q10100G4 Series J1900 N3540

Qotom Multi LAN Router Mini PC Q10100G4 Series J1900 N3540

$110.00 USD
$0.00 USD $110.00 USD
Sale Sold out
Shipping calculated at checkout.
Q10100G4
Chassis
Configuration



Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should by paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q190G4 S07/S08/1U J1900 4 4 2.00Ghz 2M
Q195G4 S07/S08/1U N3540 4 4 2.16Ghz 2M
Chassis Chassis Size Packaging Material Mounting Kensington
Lock		 Cooling
Mode
S07 155 × 127 × 36mm 261 × 218 × 75mm Aluminium Alloy VESA Bracket No Fanless
S08 155 × 127 × 48mm 261 × 218 × 75mm Aluminium Alloy VESA Bracket No Fanless

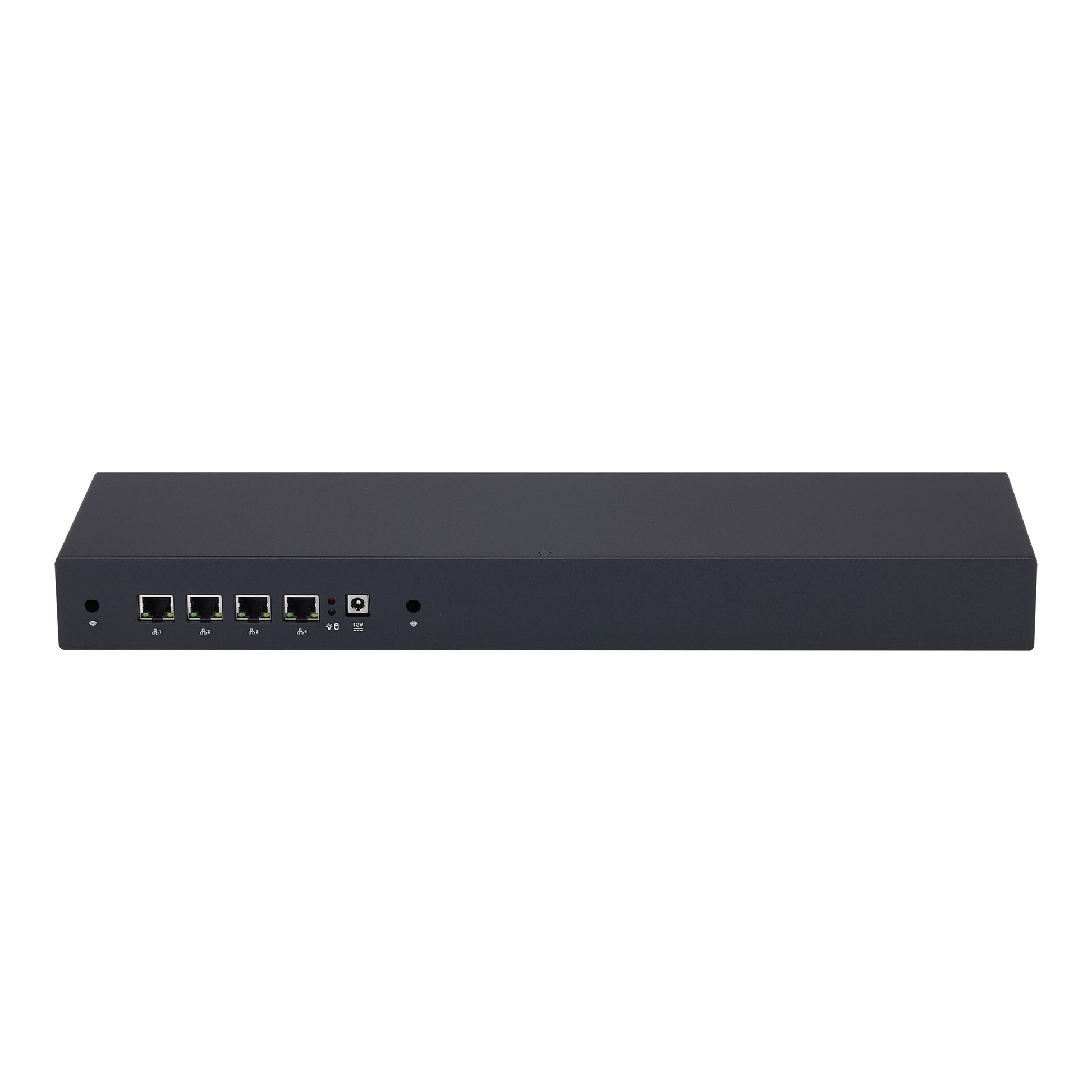

1U 440 × 127 × 44mm 545 × 180 × 90mm Aluminium Alloy Ear bracket No Fan
Processor System
CPU Intel Bay Trail Processor
CPU TDP By CPU
Memory 1 × DDR3L SO-DIMM Socket
(Up to 8G, 1333/1600MHz)
Chipset By CPU
Graphics By CPU
LAN Chipset Intel I211-AT/I210-AT Gigabit LAN
Audio No
Watch Dog No
Front I/O
Power Button 1
LED 1 × Power LED
VGA 1
USB 1 × USB 3.0, 3 × USB 2.0
Audio No
Rear I/O
Power 1 × DC Jack
LED 1 × Power LED, 1 × HDD LED
LAN 4 × Intel I211-AT/I210-AT Gigabit LAN
Storage
Type 1 × 2.5-inch HDD/SSD (S08/1U)
1 × Mini PCIe for mSATA SSD(S07/S08/1U)
Expansion
mSATA 1 × Full Length Mini PCIe for SSD
Mini PCIe 1 × Mini PCIe
either Full-length for 4G, or Half-length for Wi-Fi (Default Only Support USB Module)
SIM Card Slot 1
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.54mm
DC-in No
Power Requirement
Power Adapter 12V3A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
OS Support, Drivers, Bios
OS Windows 7, Windows 8, Windows 10, Linux
Drivers Visit
Bios Visit
