Qotom Multi LAN Router PC Q10800G5 Series J6412 5x2.5G Ethernet

$137.00 USD

~~$0.00 USD~~ $137.00 USD

Sale Sold out

Shipping calculated at checkout.

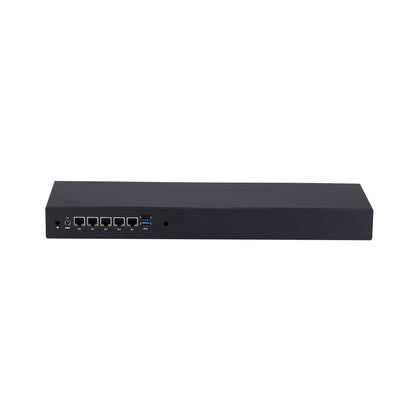

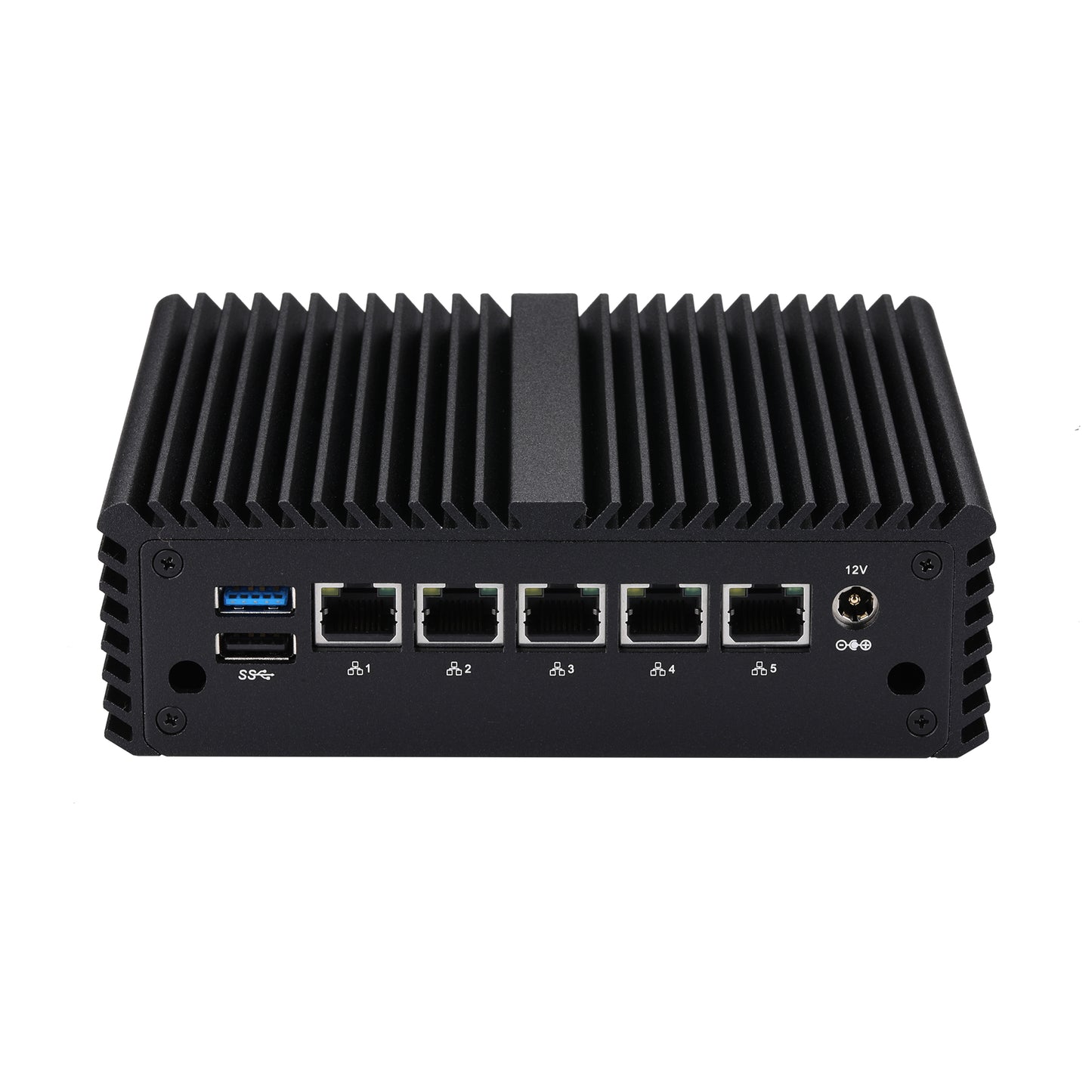

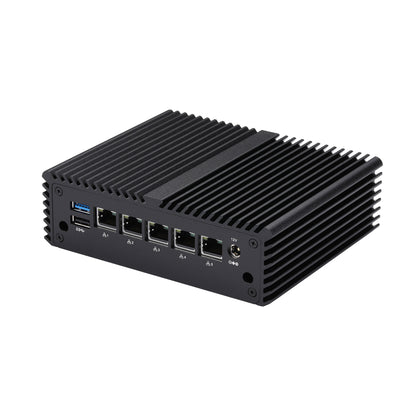

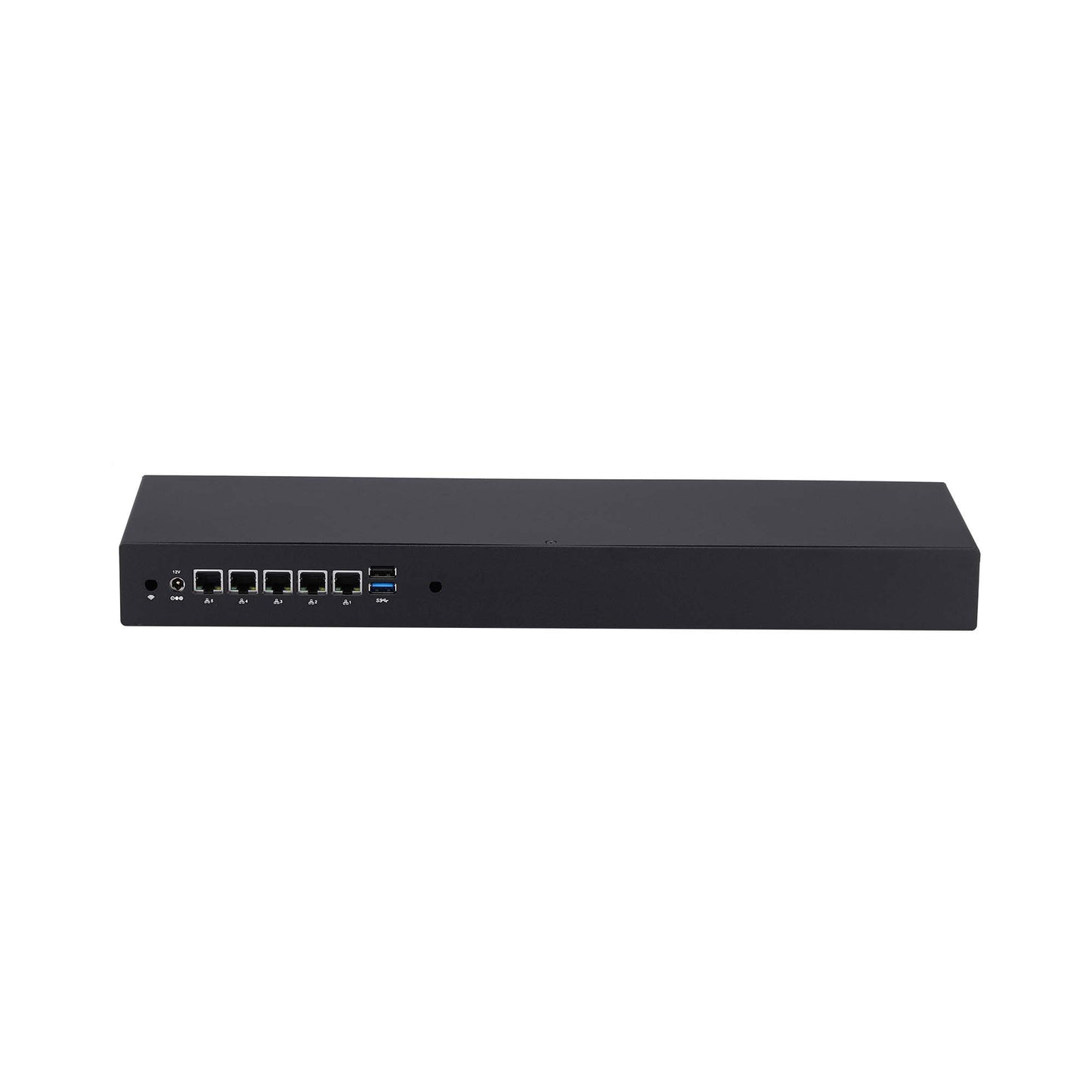

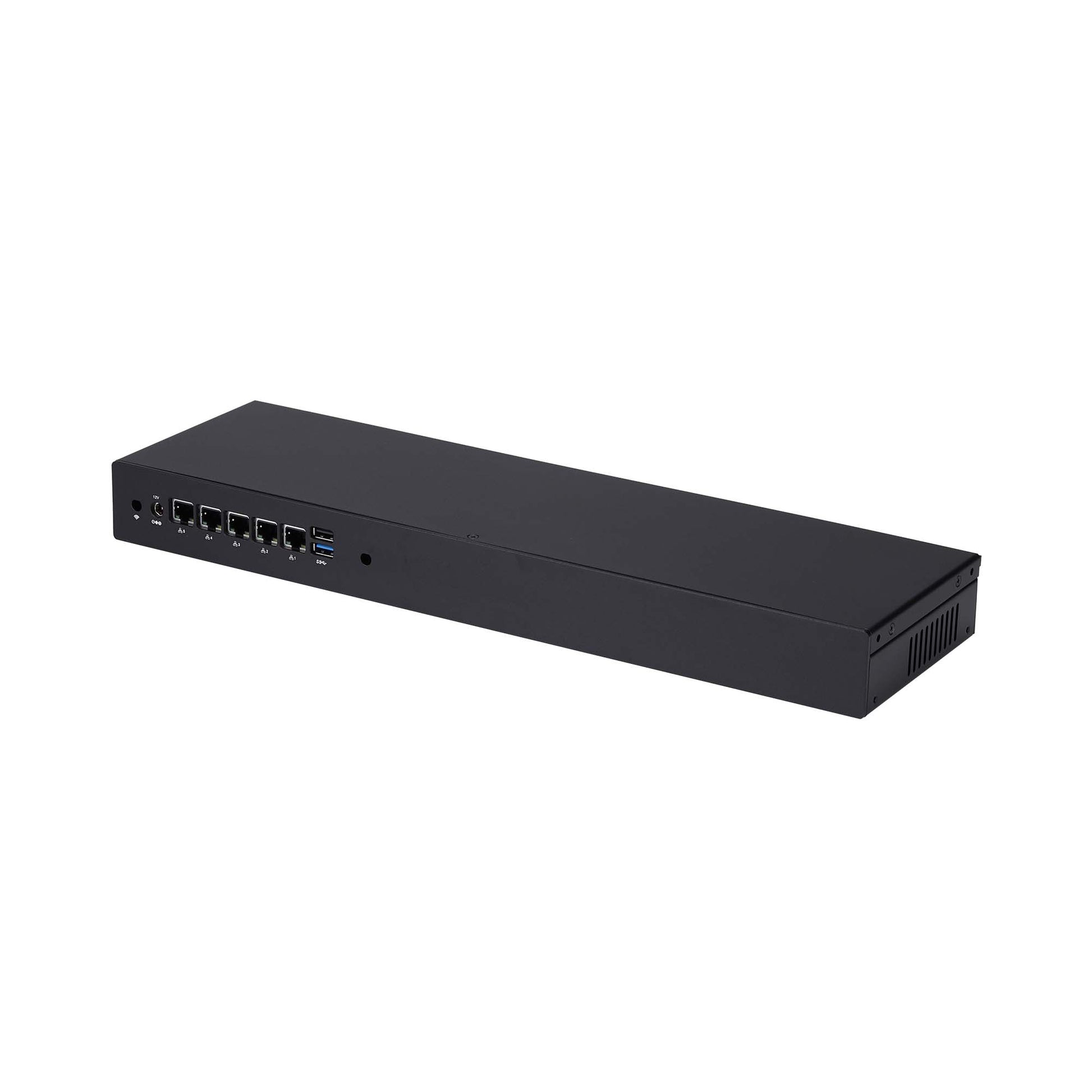

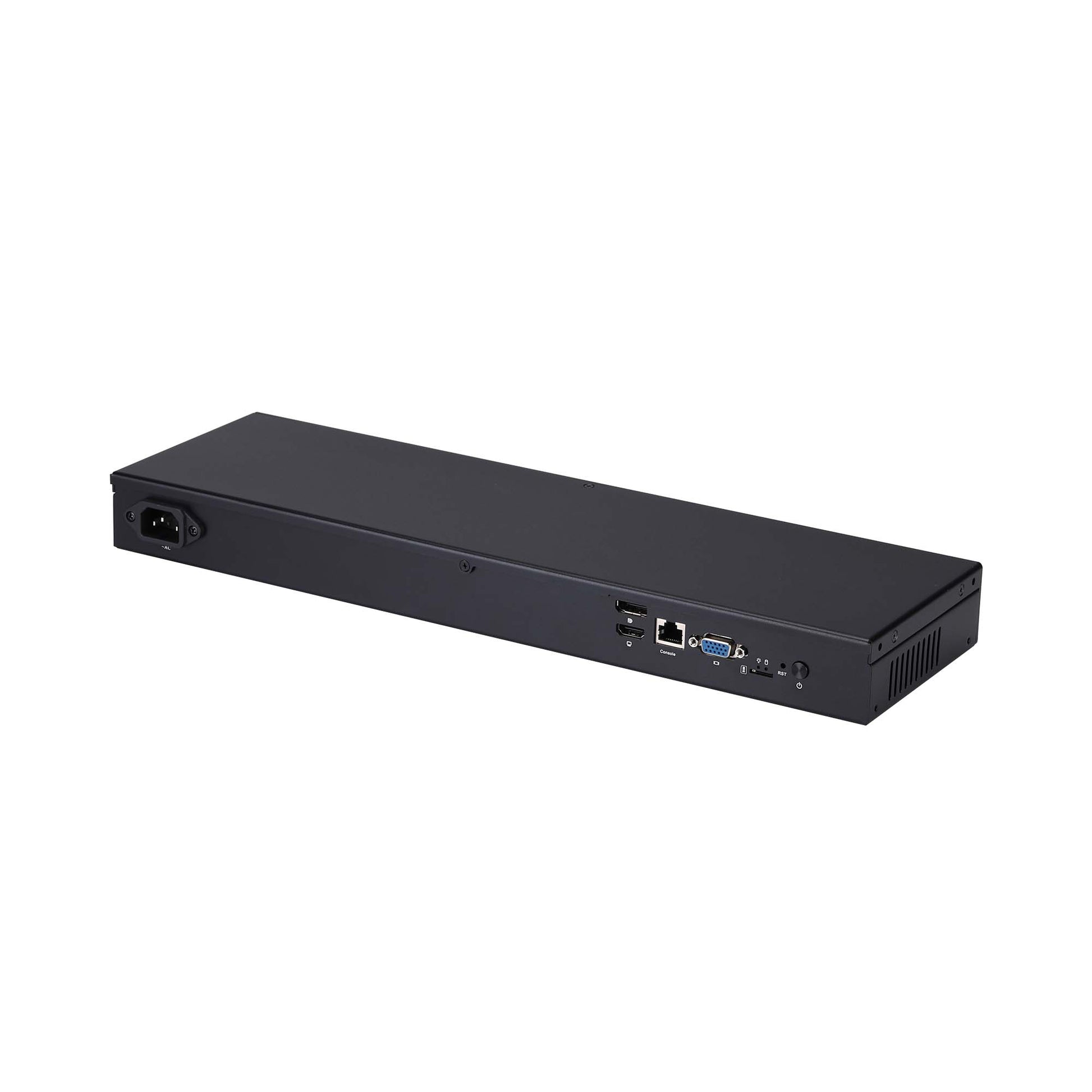

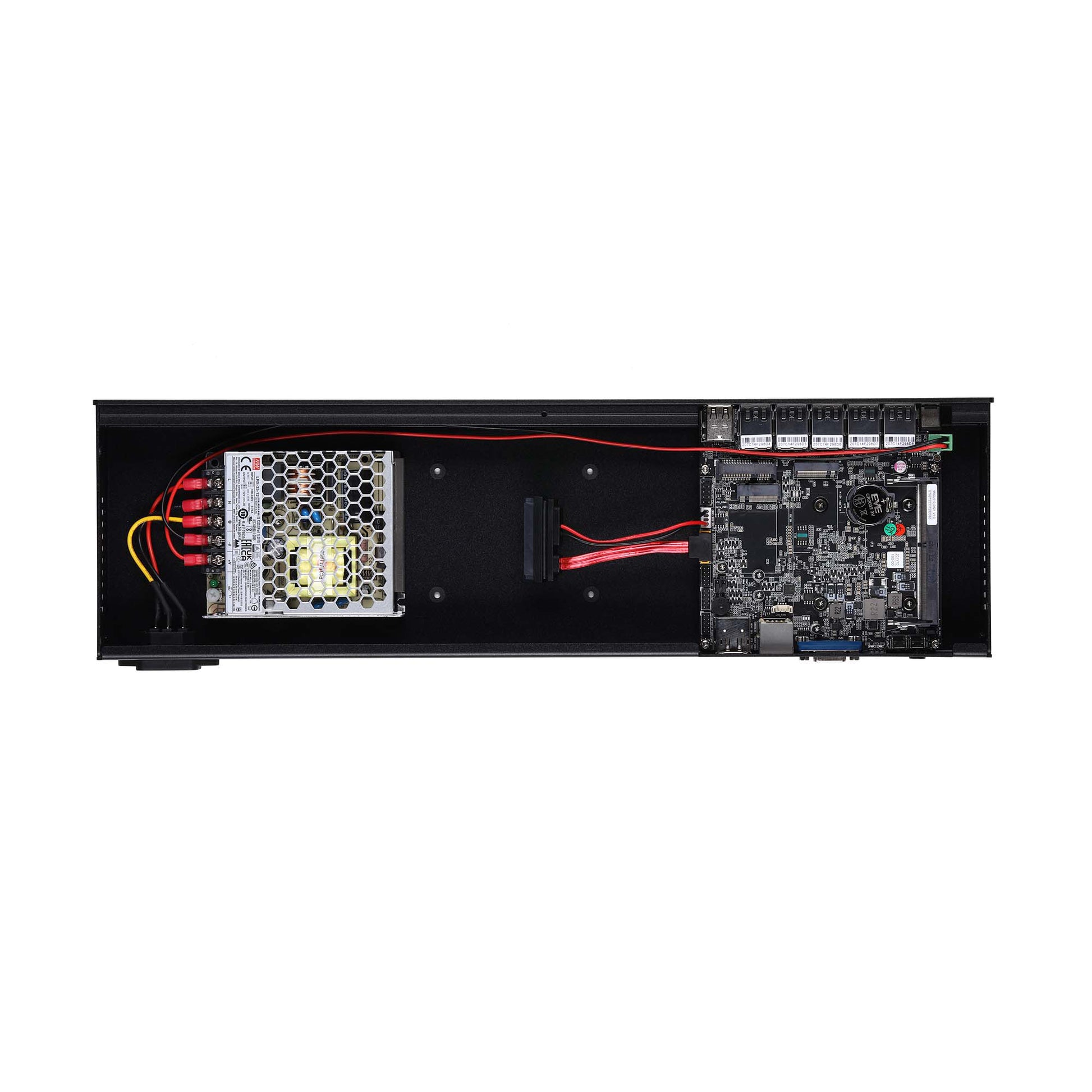

Q10821G5 S08 1U Rack

Configuration Barebone 4G RAM 64G SSD 4G RAM 128G SSD 8G RAM 128G SSD 8G RAM 256G SSD 16G RAM 512G SSD

Quantity

Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase

1. Import Duties, VAT, other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	CPU TDP	Base Frequency	Cache
Q10821G5	S08 / 1U	J6412	4	4	10W	2.00Ghz	1.5M

Processor System
CPU	Intel Elkhart Lake celeron Processor
CPU TDP	10W
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G)
Chipset	By CPU
Graphics	Intel UHD Graphics
Audio	No
Watch Dog	Yes

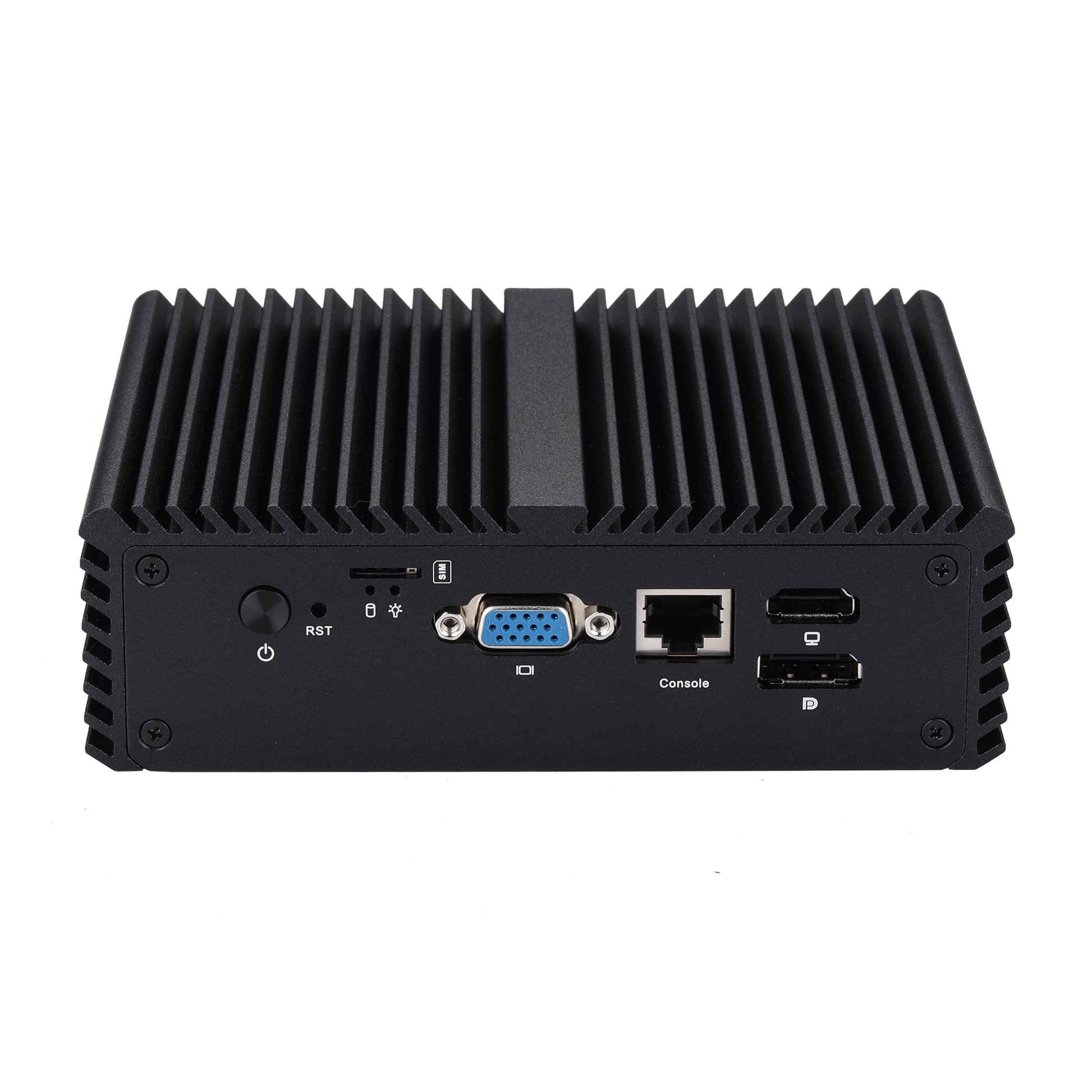

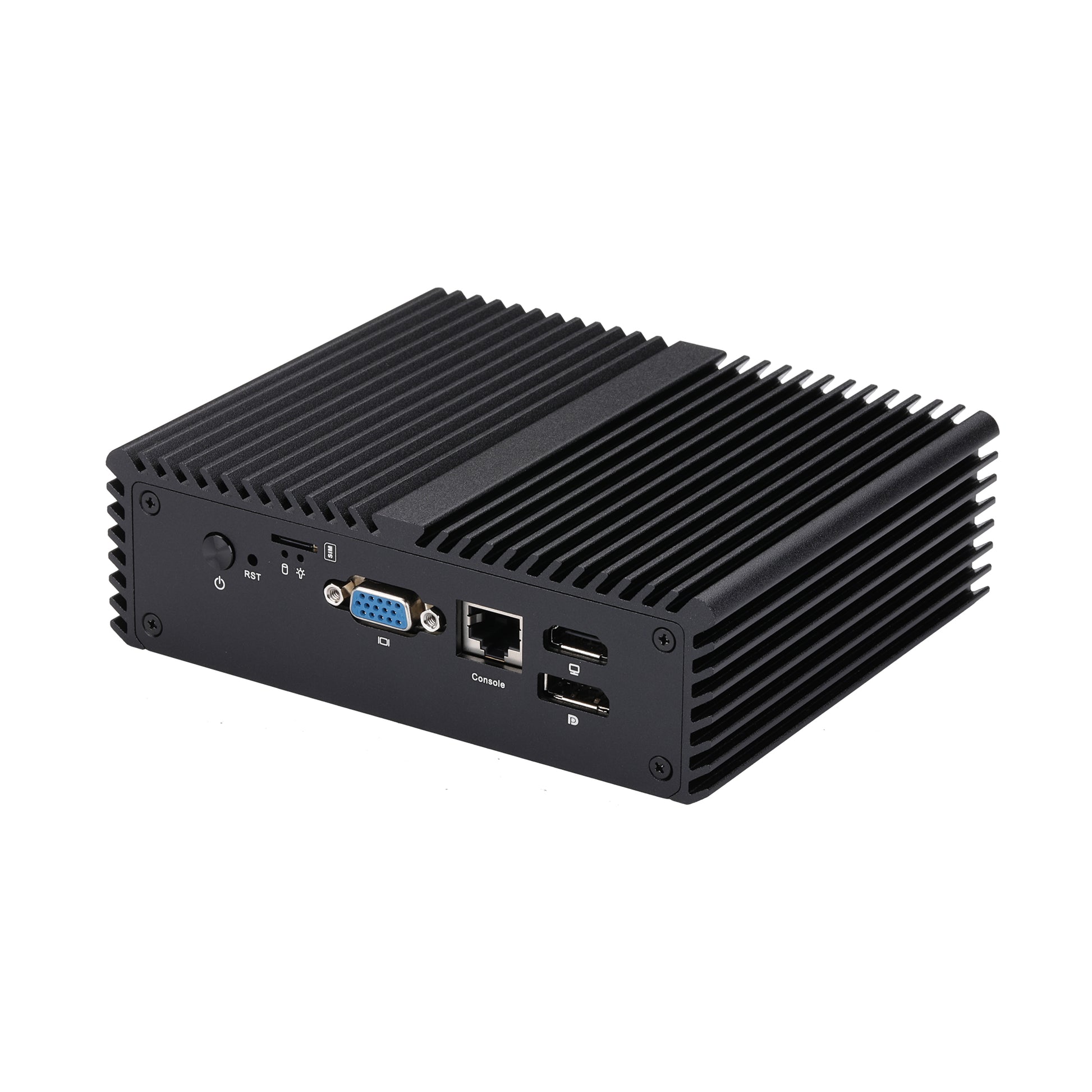

Front I/O
Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
Video Output	1 × HDMI, 1 × Display Port, 1 × VGA
Serial Port	1 × RS-232 Port (RJ-45)
SIM Card Slot	1

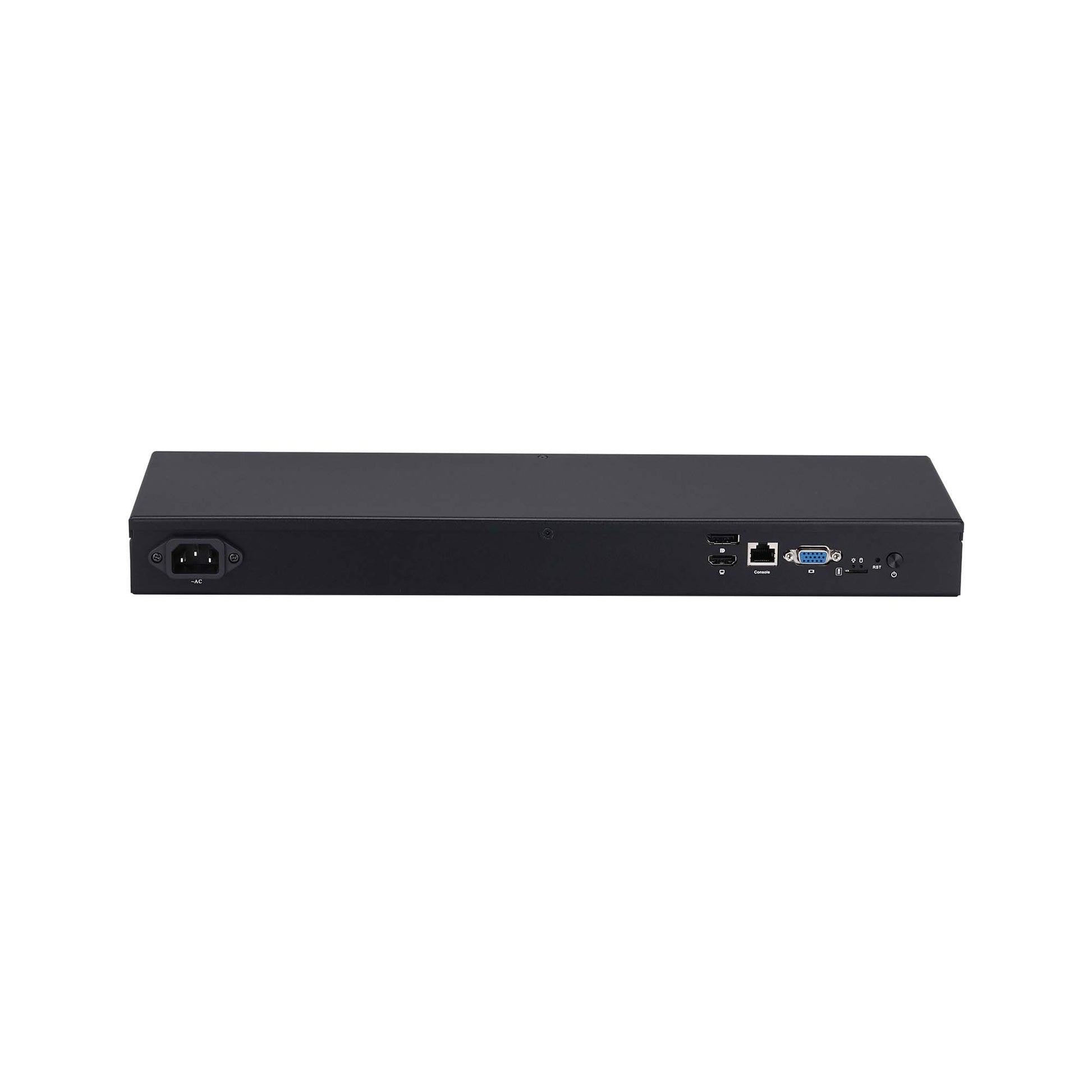

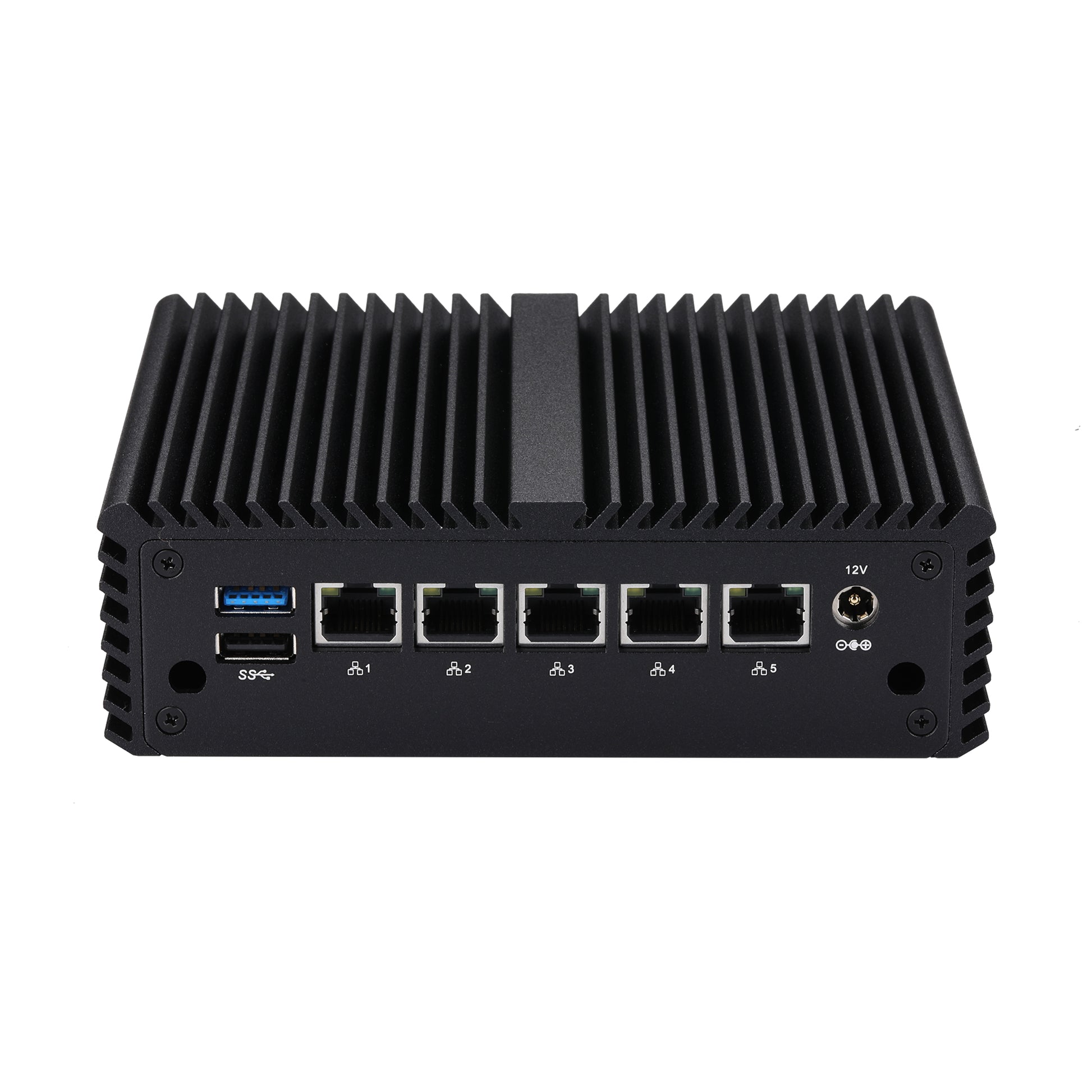

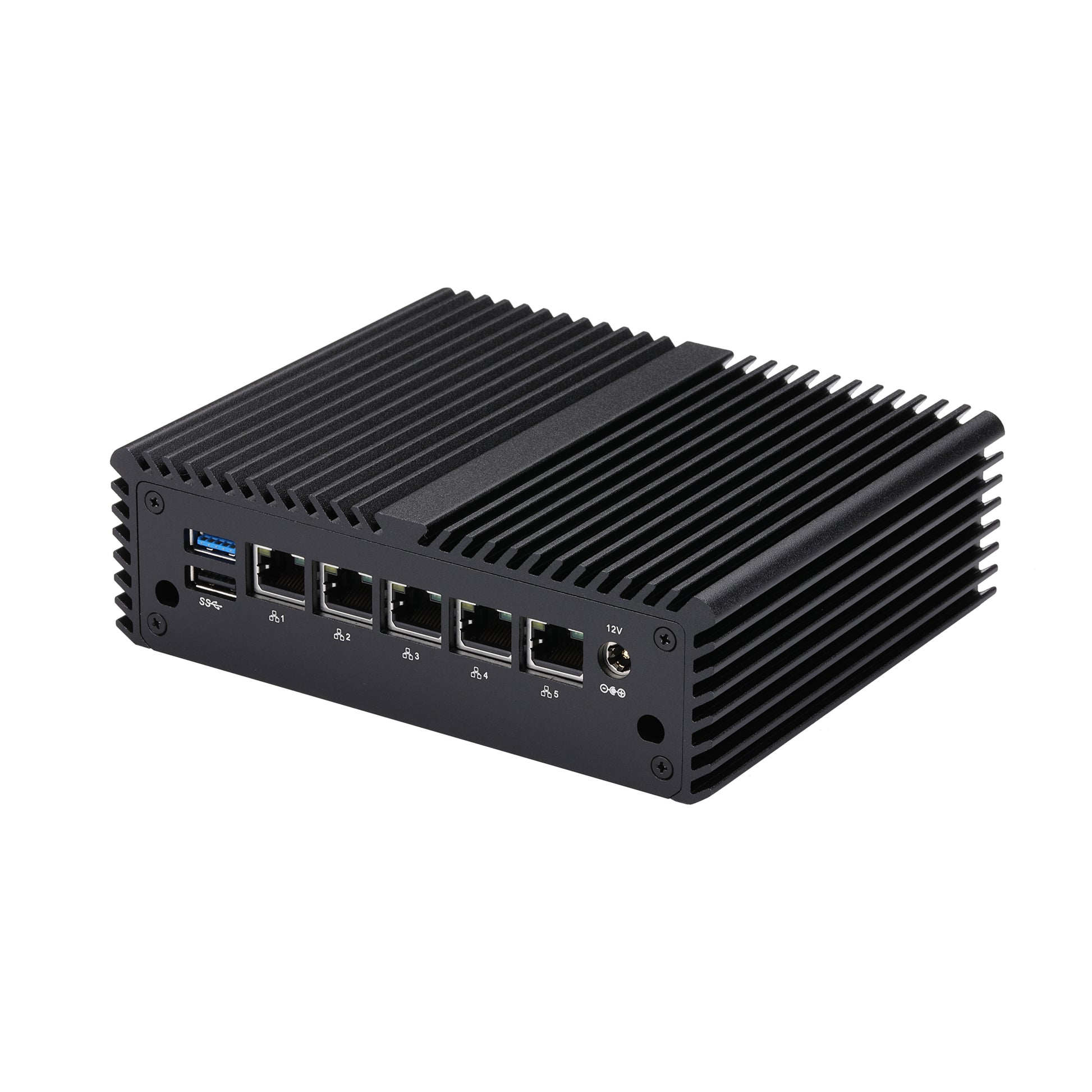

Rear I/O
Power	1 × DC Jack
LAN	5 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB	1 × USB 3.0, 1 × USB 2.0

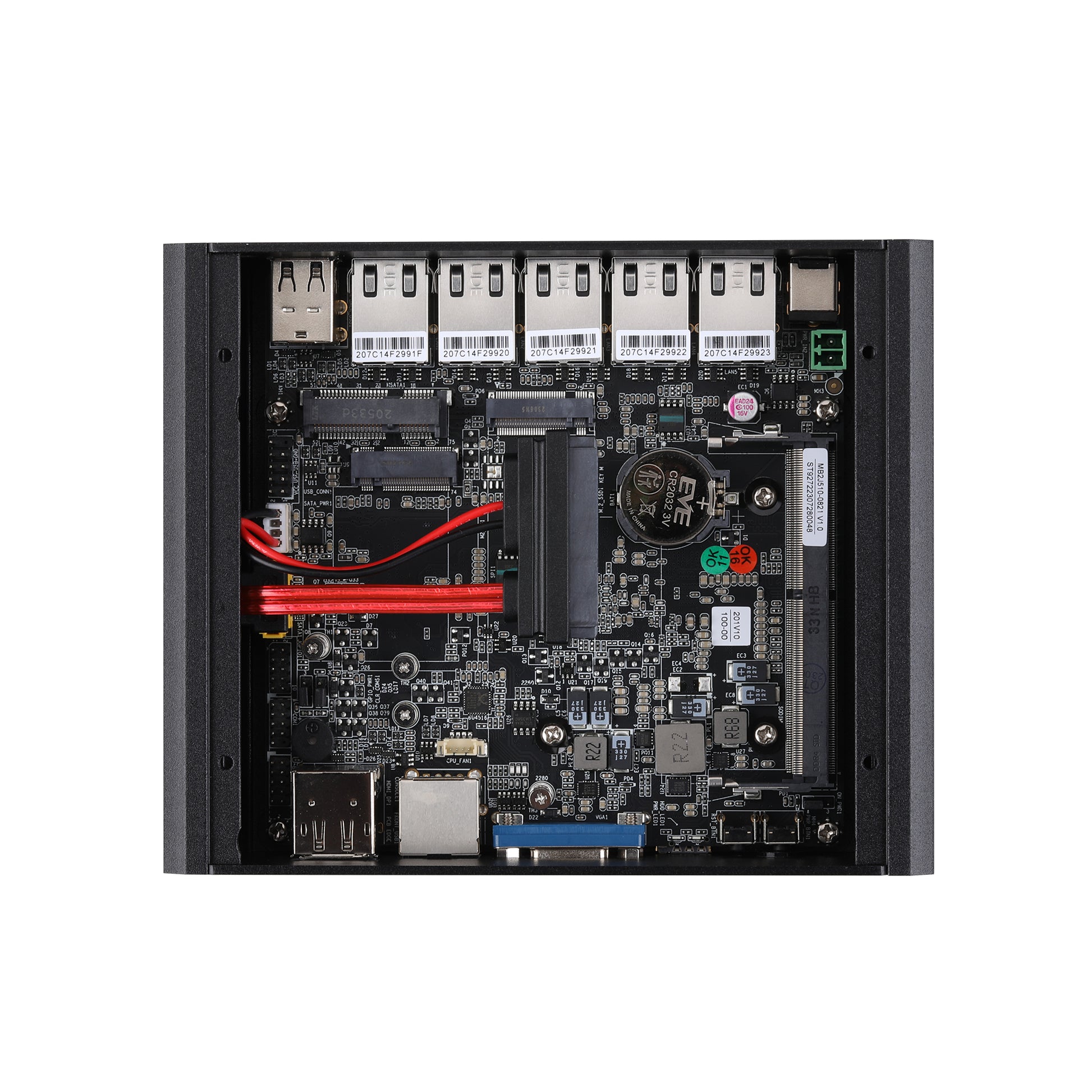

Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Expansion
mSATA	1 × mSATA for SSD
M.2	1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2	1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2) Wi-Fi support via a Converter Card
GPIO	1, 2 × 5Pin, Pitch 2.0mm
SIM Card Slot	0
Clear CMOS	Yes, 1 × 3Pin, Pitch 2.54mm
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
Front Panel	1, 2 × 5Pin, Pitch 2.0mm
Power Requirement

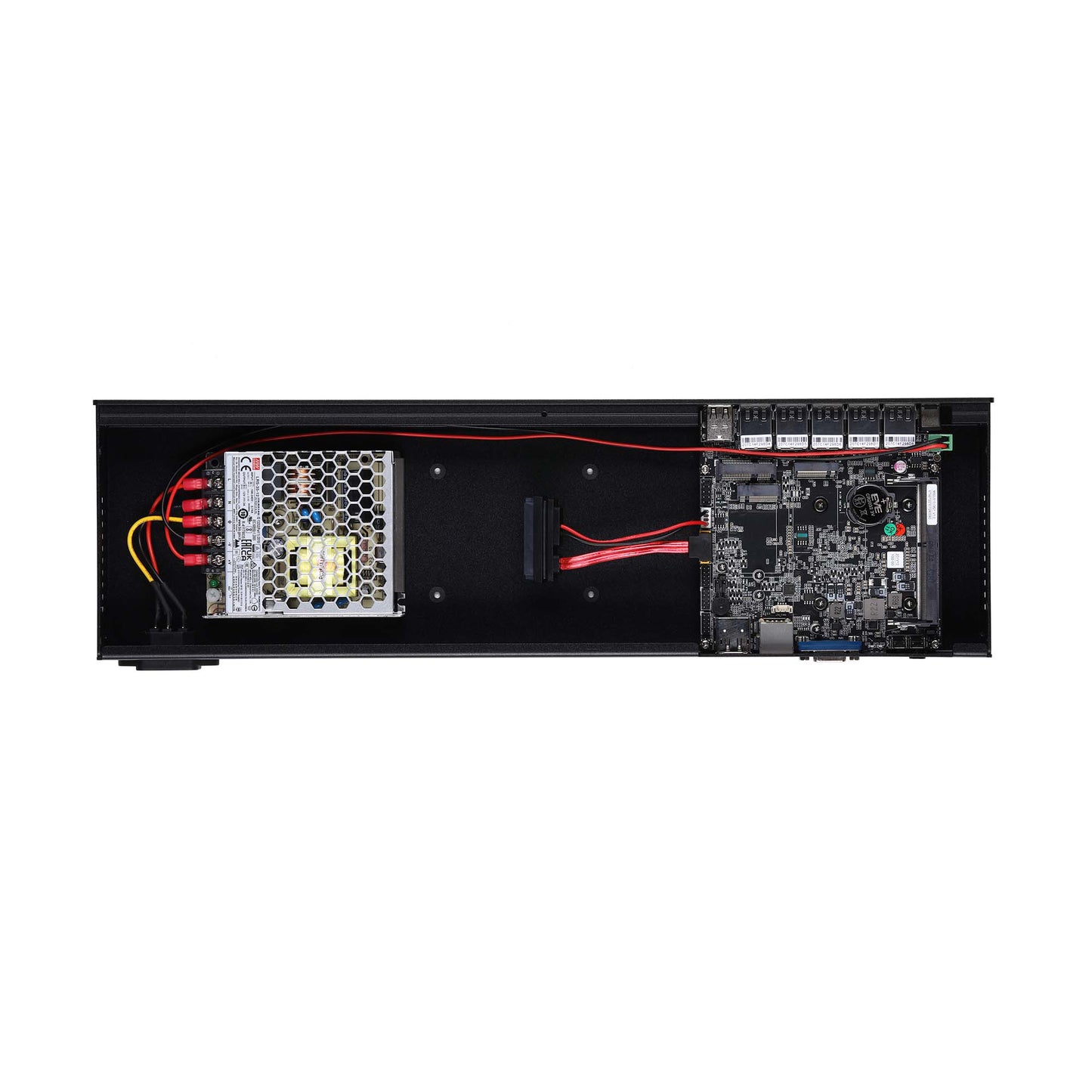

Power Adapter	12V3A in S08 version AC 100-240V by Default in 1U version (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S08: 155 × 127 × 48mm 1U: 440 × 127 × 44mm
Weight	S08: 0.85kg 1U: 1.12kg
Mounting	S08: VESA Mounting Bracket 1U: ear bracket
Packaging Dimension	S08: 261 × 218 × 75mm 1U: 545 × 180 × 90mm
Kensington Lock	No
Cooling Mode	S08: Fanless Design 1U: Fan
OS Support
OS	UEFI Windows 10, UEFI Linux
