Qotom Multi Lan Router Mini PC Q30900G6 4305U 5405U 10210U Linux

$155.00 USD

~~$0.00 USD~~ $155.00 USD

Sale Sold out

Shipping calculated at checkout.

Q30900G6 Series Q30912G6 4305U Q30921G6 5405U Q30952G6 i5-8260U Q31031G6 i3-10110U Q31051G6 i5-10210U Q31073G6 i7-10710U

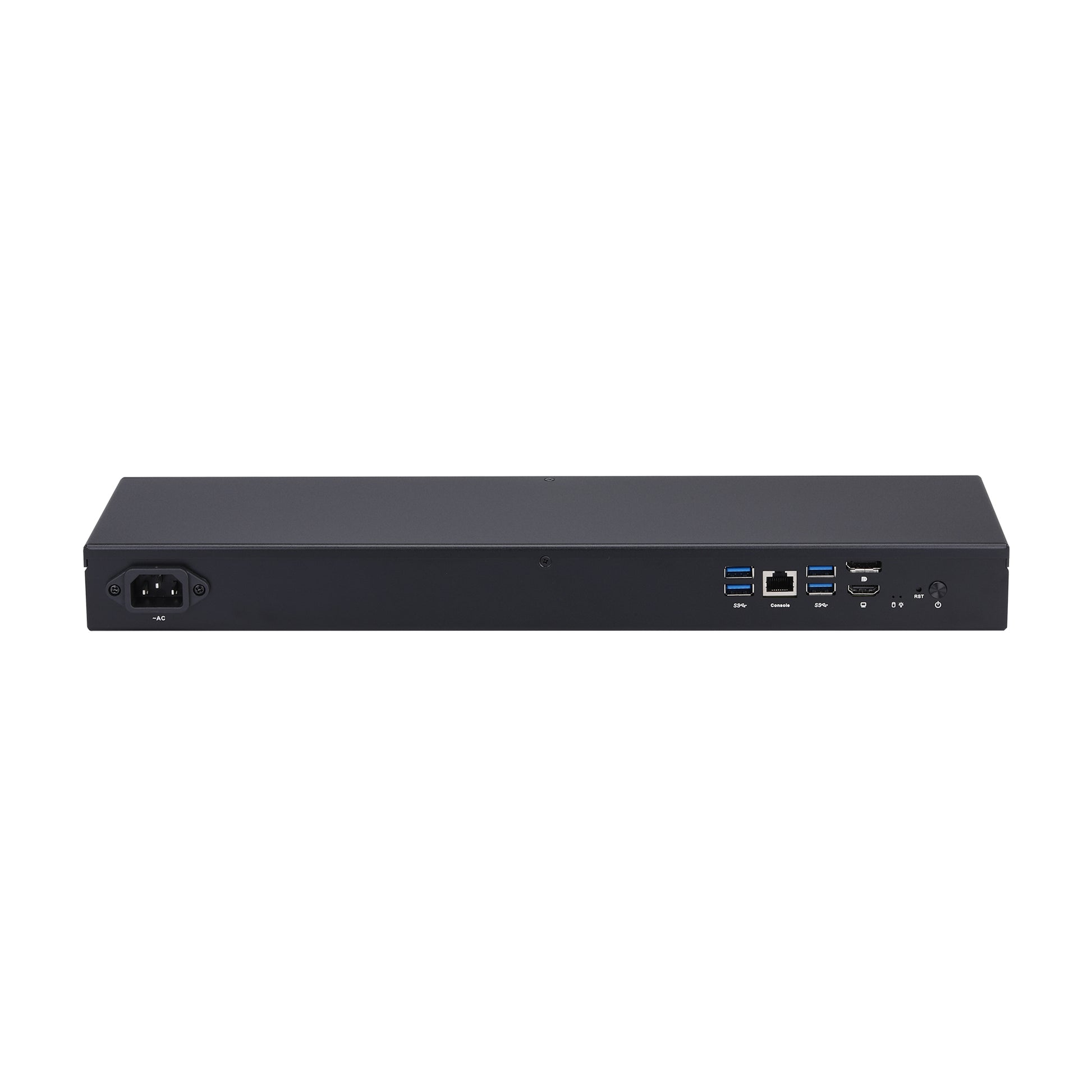

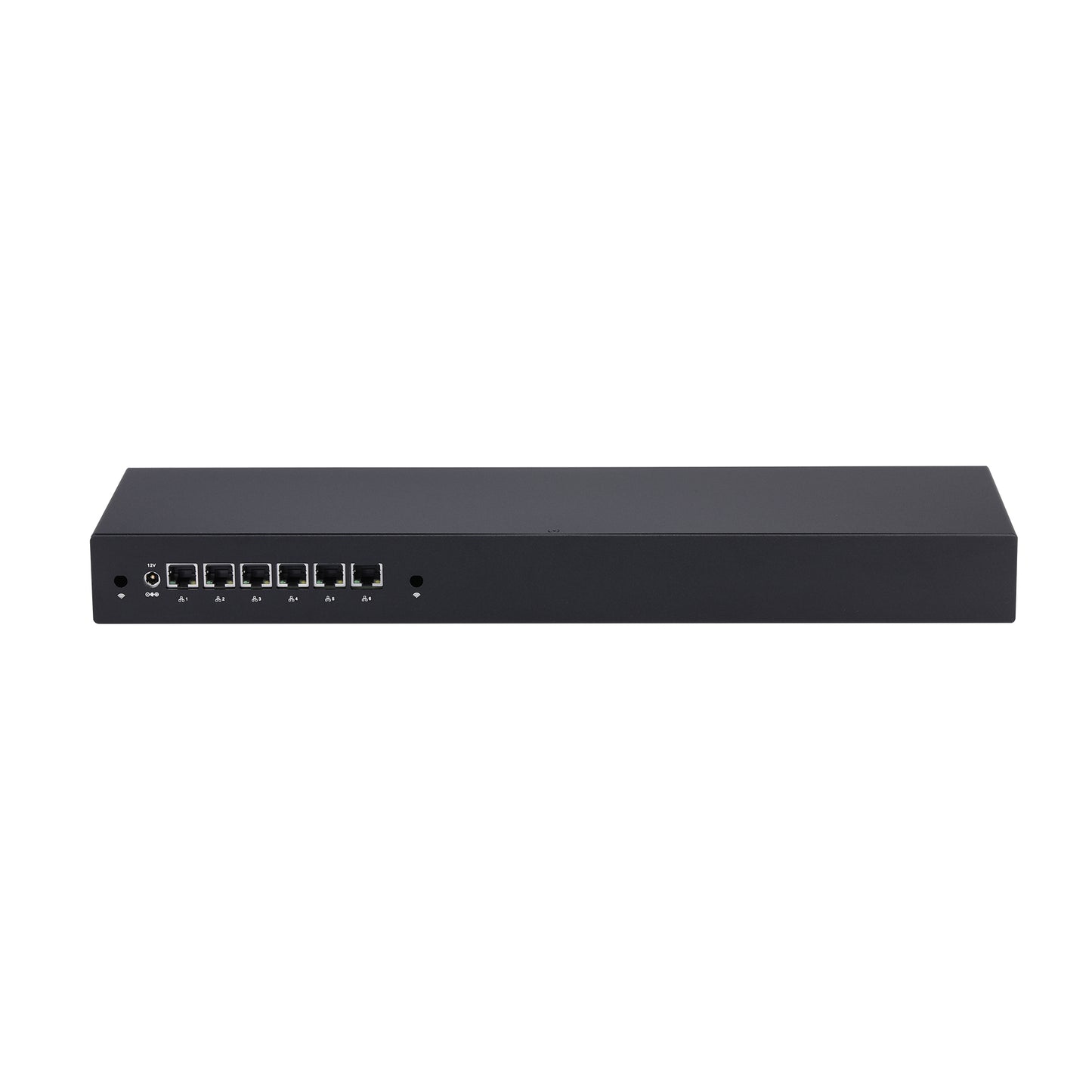

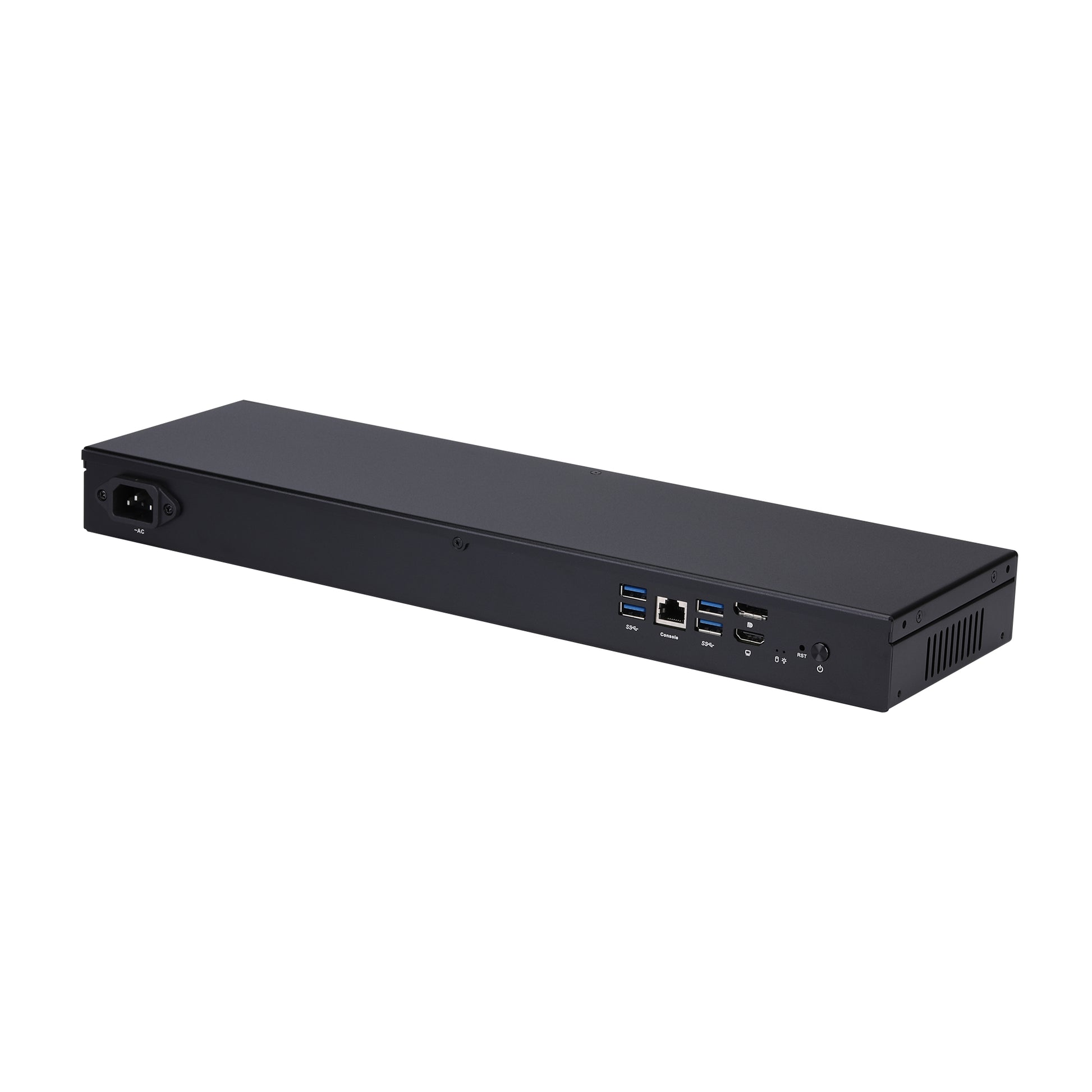

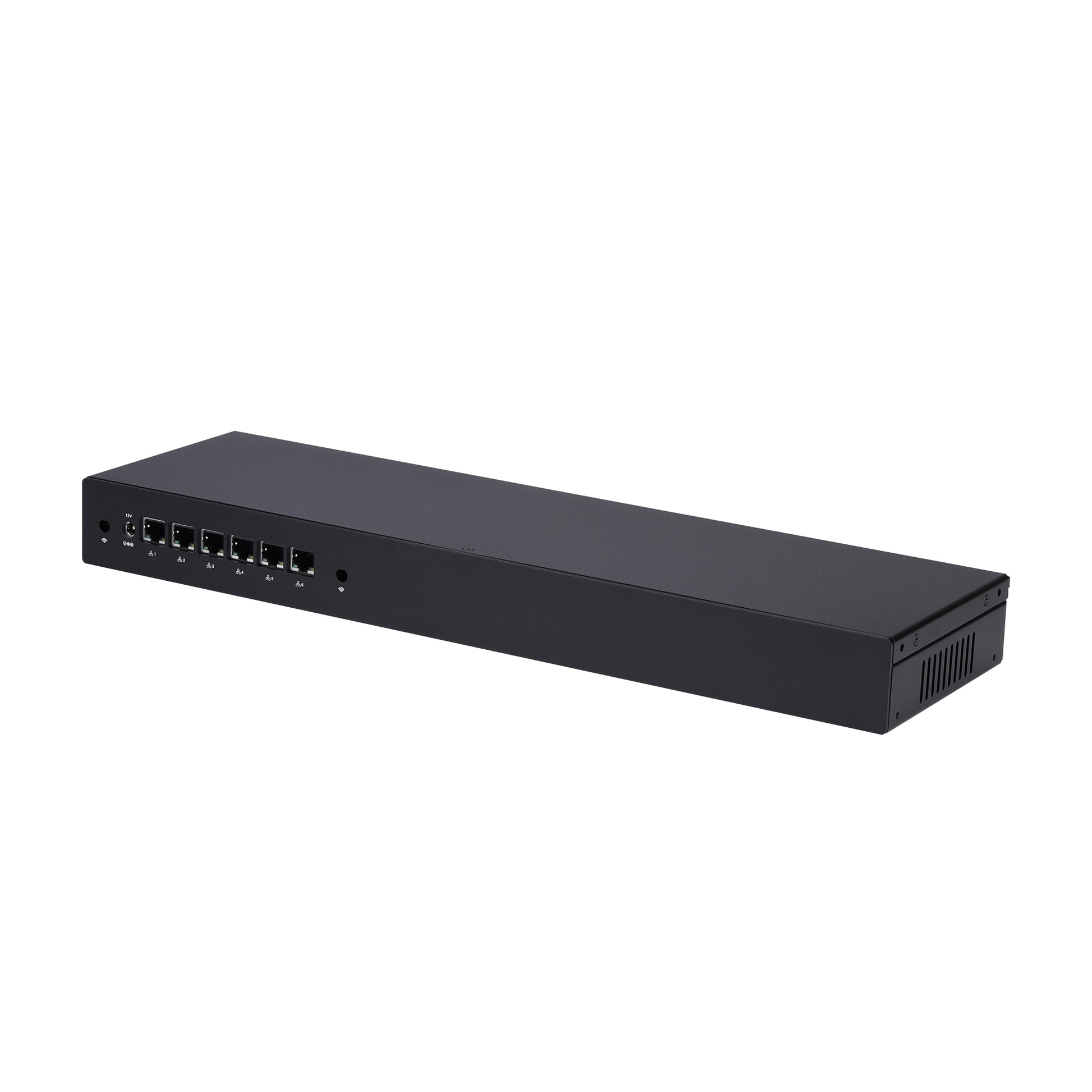

Chassis S08 1U Rack

Configuration Barebone 4G RAM 64G SSD 4G RAM 128G SSD 8G RAM 128G SSD 8G RAM 256G SSD 16G RAM 512G SSD

Quantity

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q30912G6	S08/1U	4305U	2	2	2.20Ghz	2M
Q30921G6	S08/1U	5405U	2	4	2.30Ghz	2M
Q30952G6	S08/1U	i5-8260U	4	8	1.60Ghz	6M
Q31031G6	S08/1U	i3-10110U	2	4	2.10Ghz	4M
Q31G51G6	S08/1U	i5-10210U	4	8	1.60Ghz	6M
Q31073G6	S08/1U	i7-10710U	6	12	1.10Ghz	12M

Processor System
CPU	• Intel 8th Whiskey Lake-U Processor • Intel 8th Coffee Lake-U Processor • Intel 10th Comet lake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	6 × Intel I225-V/I226-V 2.5 Gigabit LAN
Watch Dog	Yes

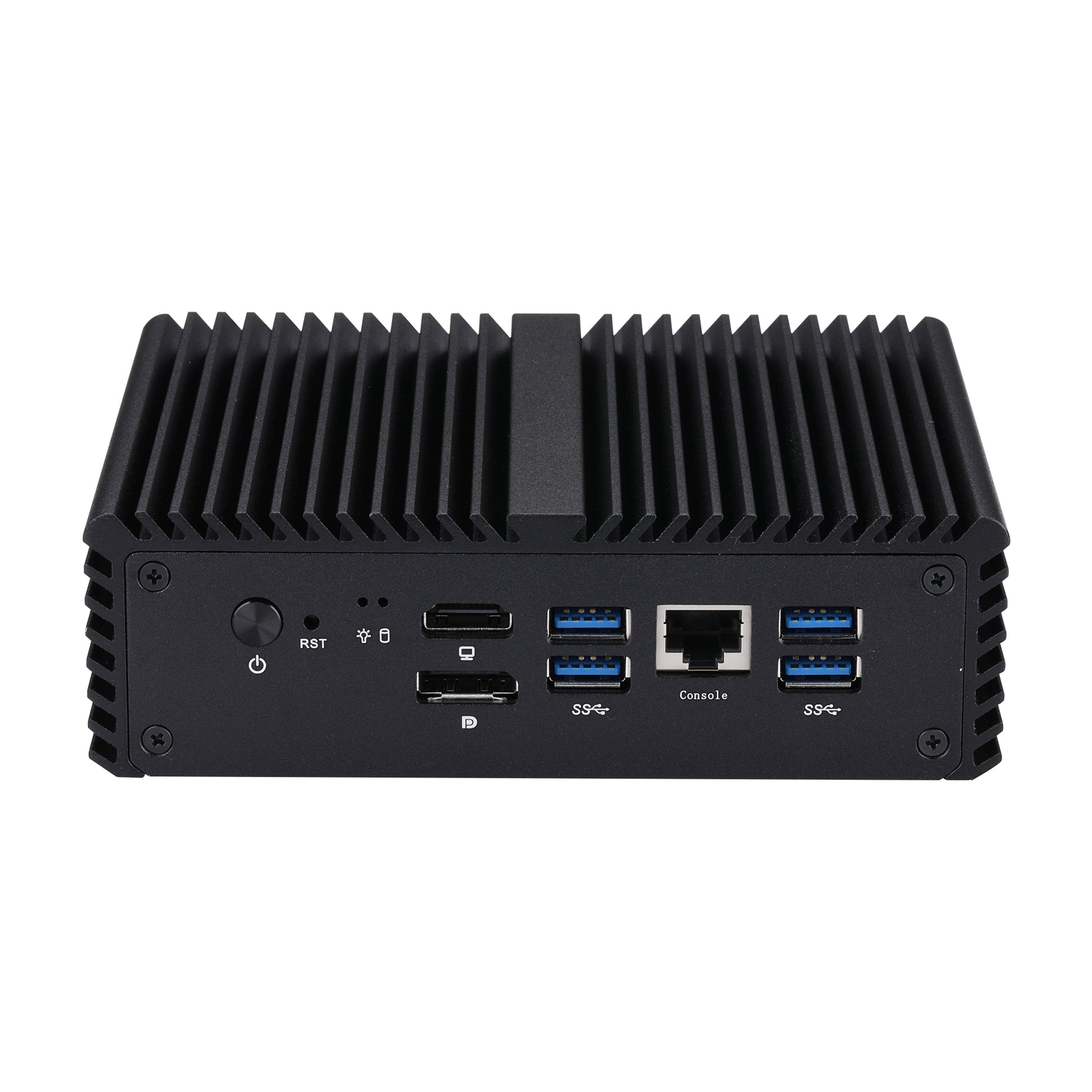

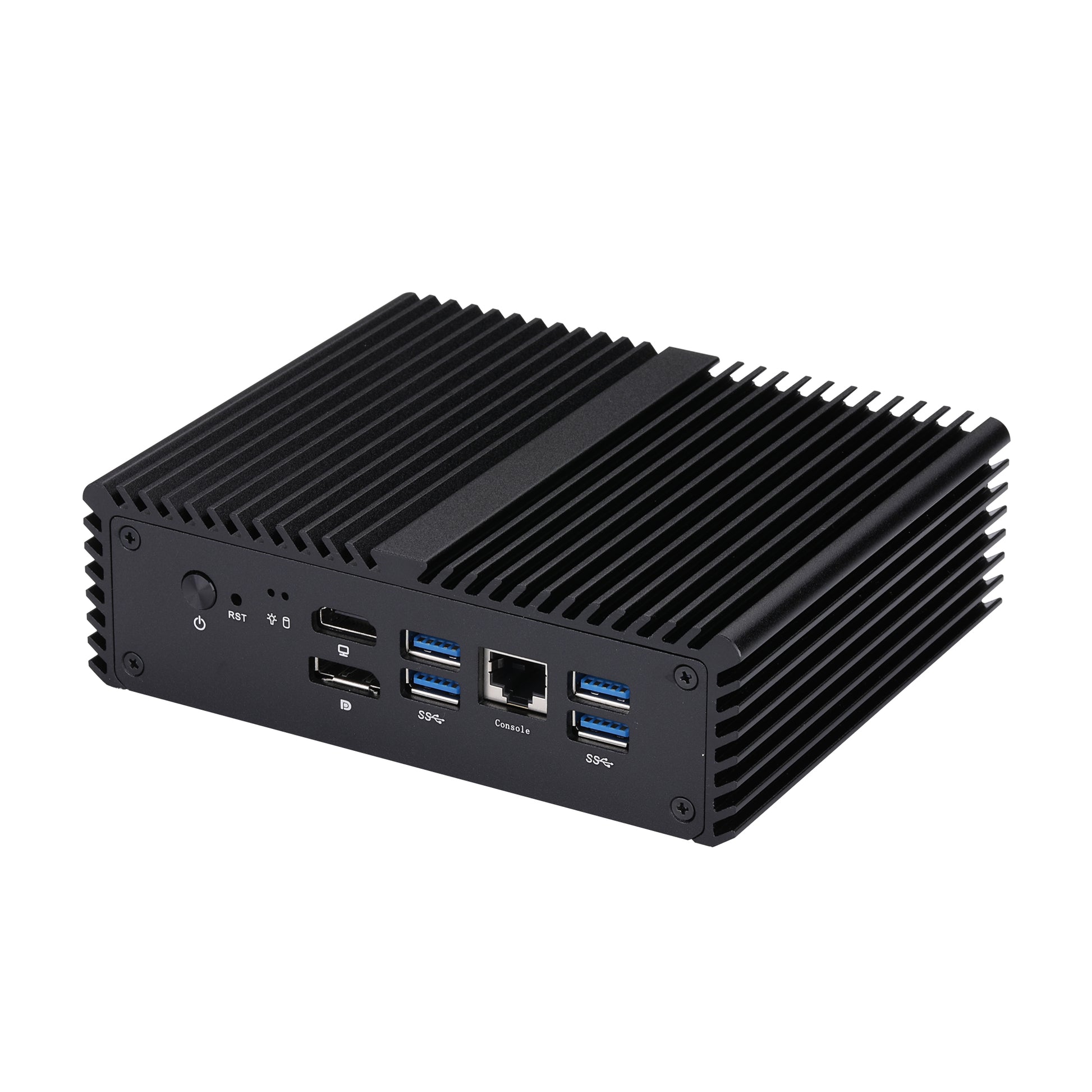

Front I/O
Power Button	1
Reset Button	1
LED	1 × Power LED, 1 × HDD LED
USB	4 × USB 3.0
Video Output	1 × HDMI, 1 × Display Port
Serial Port	1 × RS-232 Port (RJ-45)

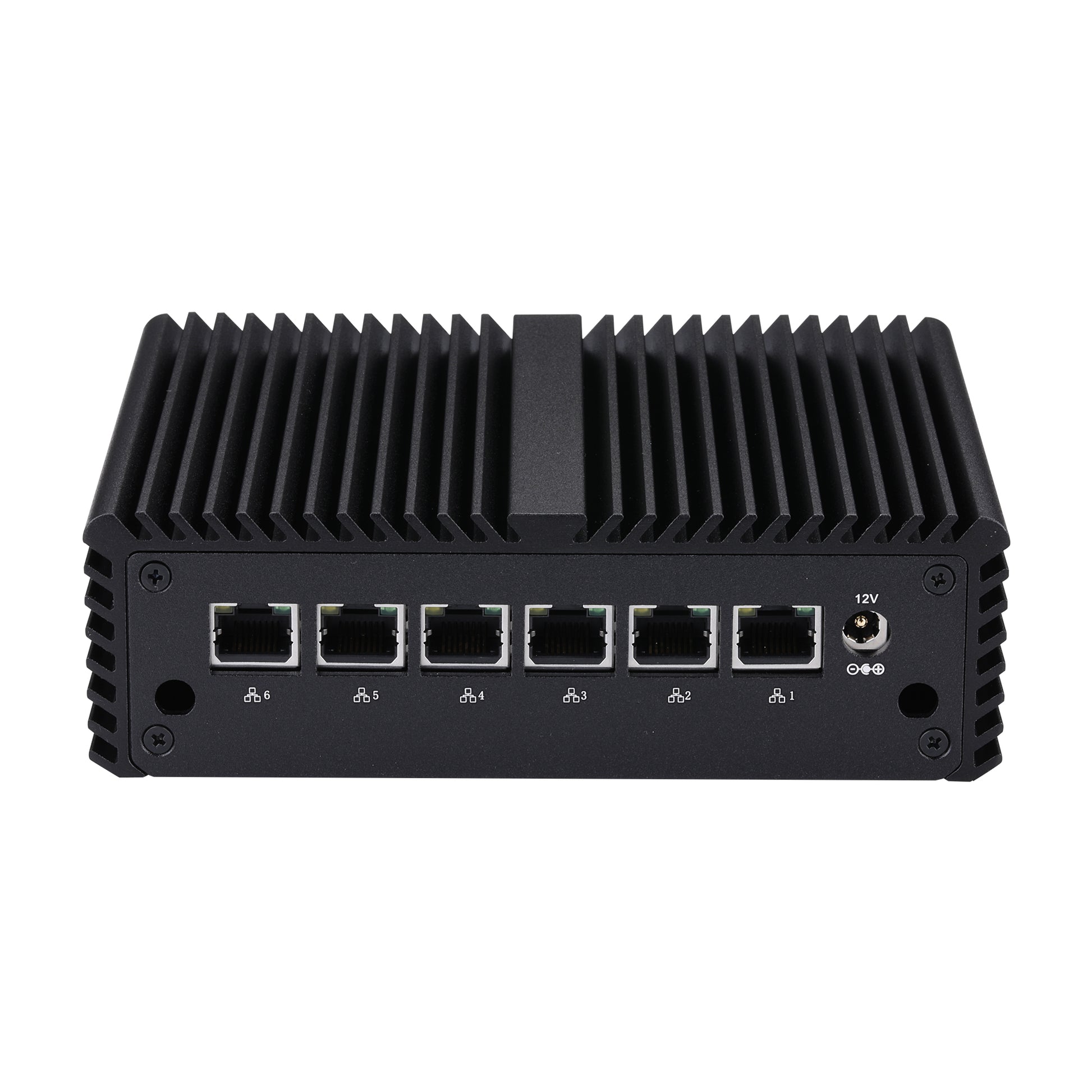

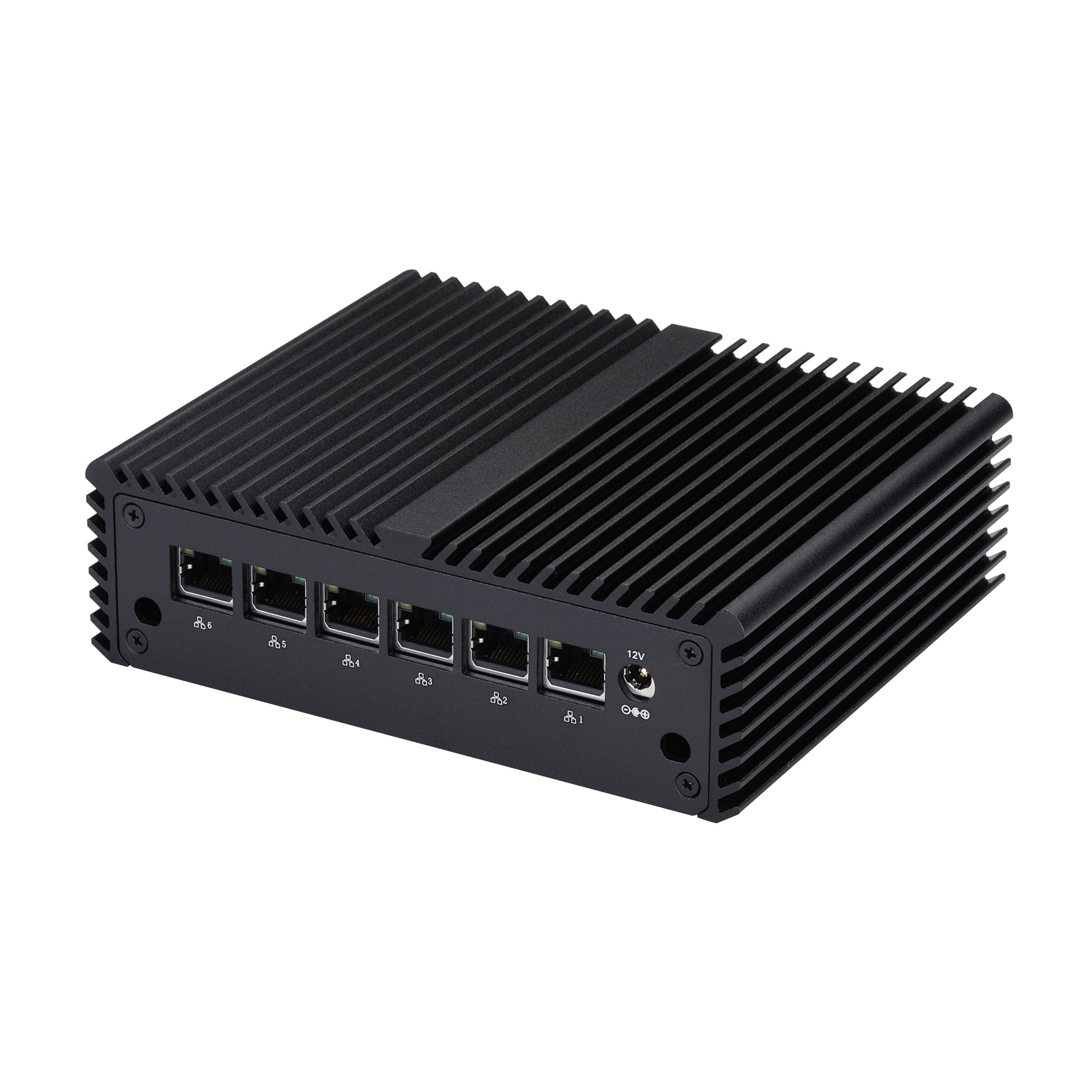

Rear I/O
LAN	6 × Intel I225-V/I226-V 2.5 Gigabit LAN
Power	1 × DC Jack
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe	1 × Mini PCIe, Full-length for mSATA/4G
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	1, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper	1, 1 × 3Pin, Pitch 2.0mm
RS-485	0
GPIO	0
Power Requirement
Power Adapter	12V3A / 12V5A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S08: 155 × 127 × 48mm 1U Rack: 440 x 127 x 44mm
Mounting	S08: VESA bracket 1U Rack: Ear bracket
Kensington Lock	No
Cooling Mode	Fan (1U Rack) Fanless (S08)
OS Support, Drivers, Bios
OS	Windows 10, Linux
Drivers	Visit
Bios	Visit
