Qotom Multi Lan Router Mini PC Q30600G6 i3 i5 i7 Computer 1U Rack

$117.00 USD

~~$0.00 USD~~ $117.00 USD

Sale Sold out

Shipping calculated at checkout.

Q30600G6 Series Q515G6 3865U Q535G6 i3-7100U Q555G6 i5-7200U Q575G6 i7-7500U

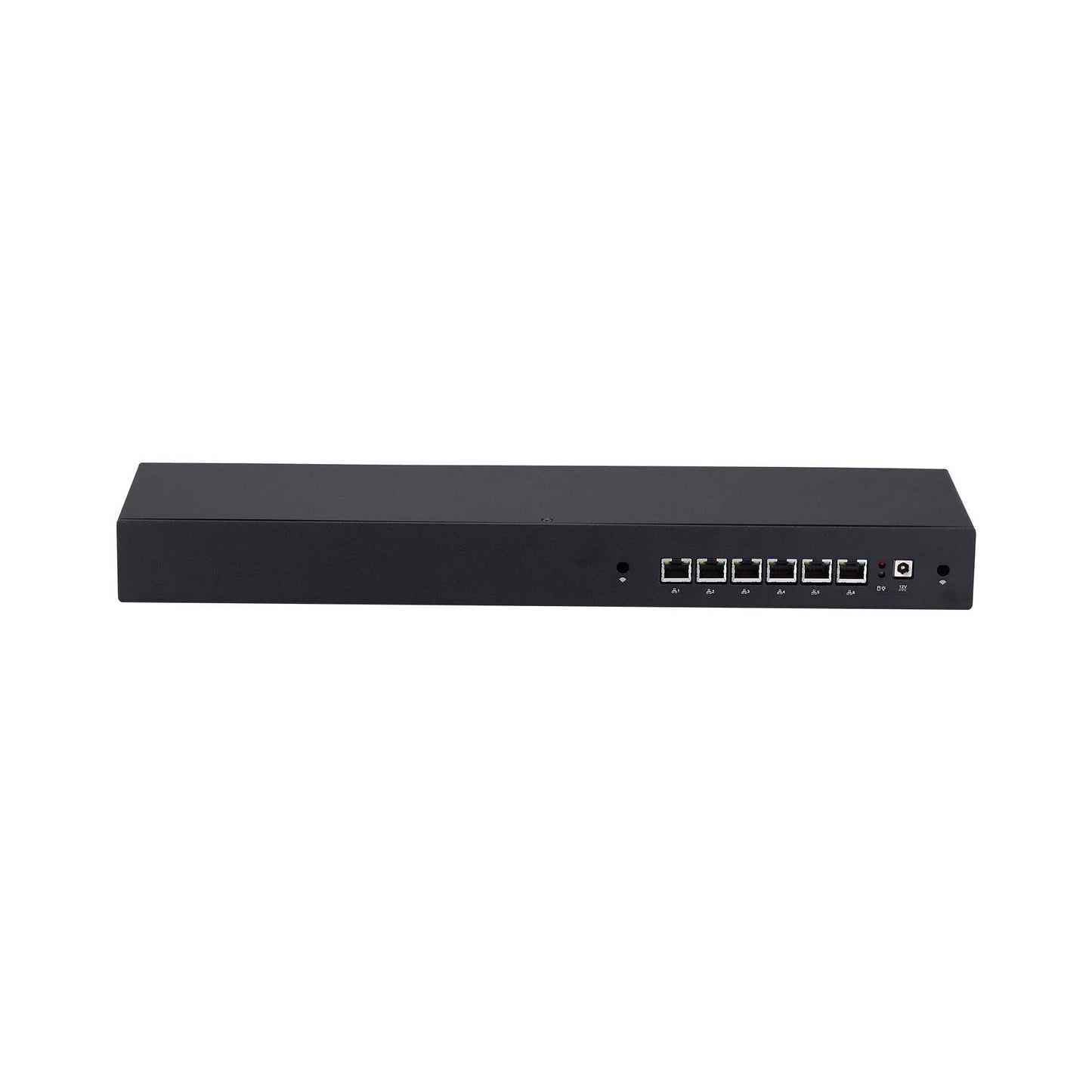

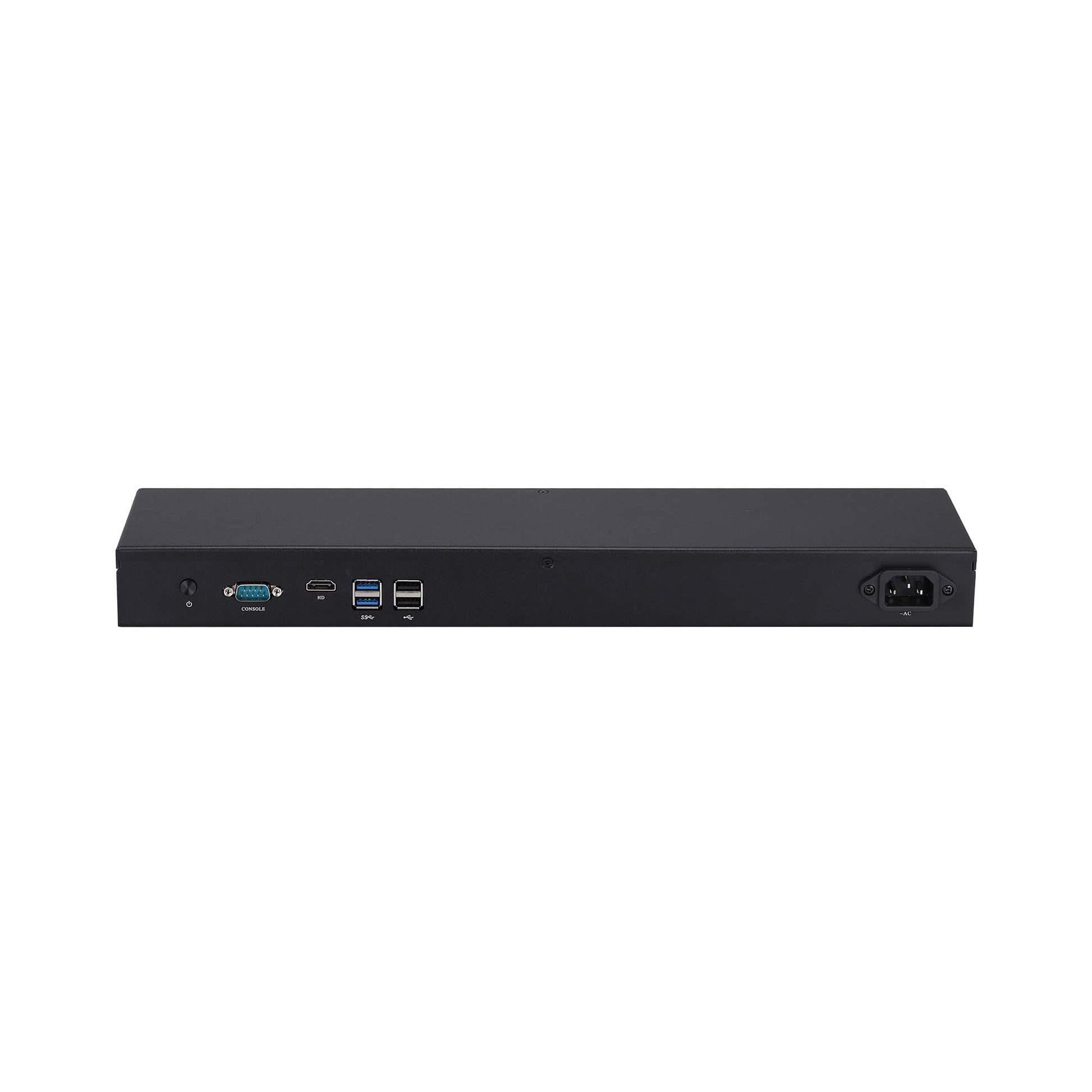

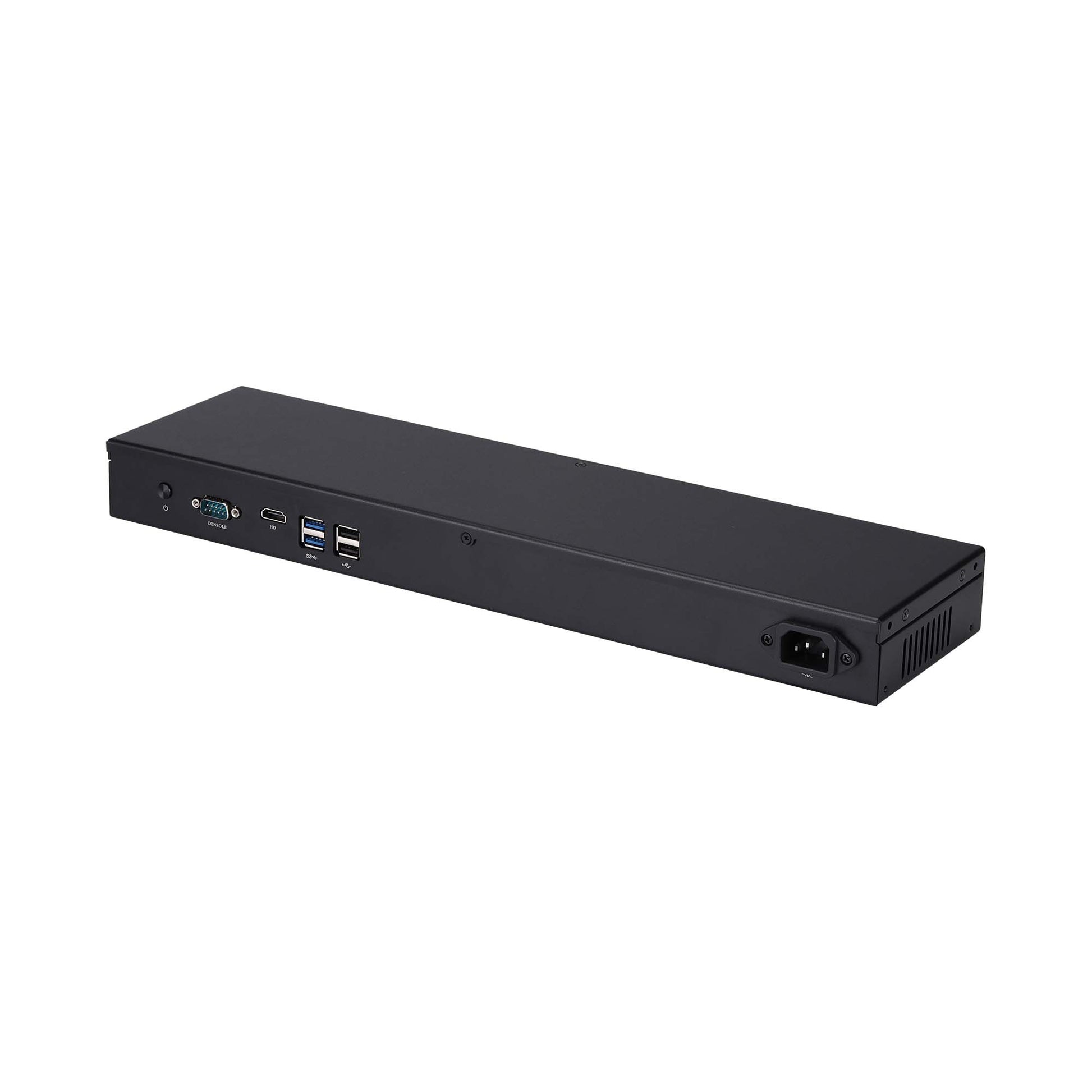

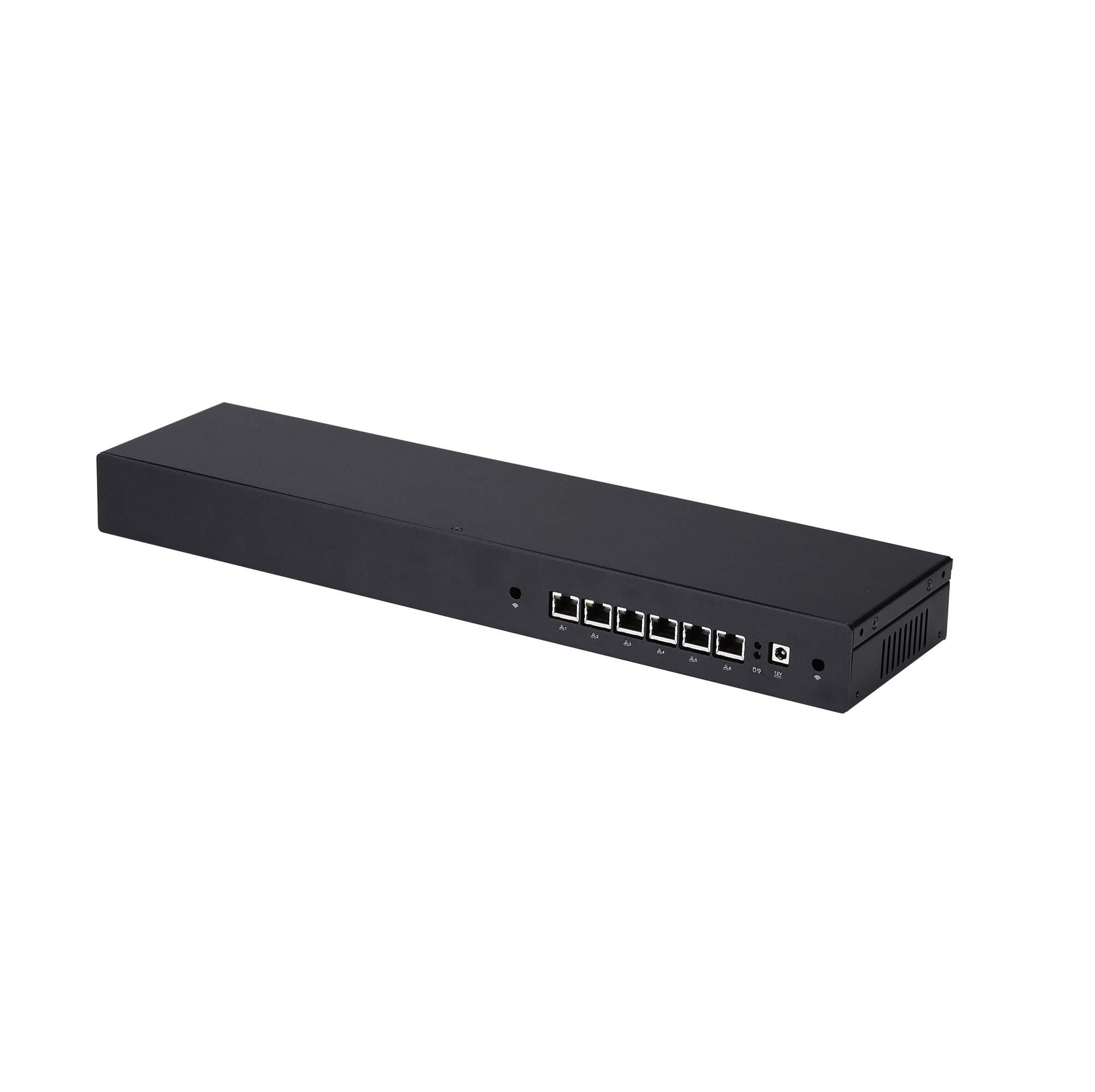

Chassis S05 1U Rack

Configuration Barebone 4G RAM 64G SSD 4G RAM 128G SSD 8G RAM 128G SSD 8G RAM 256G SSD 16G RAM 512G SSD

Quantity

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q515G6	S05/1U	3865U	2	2	1.80Ghz	2M
Q535G6	S05/1U	I3-7100U	2	4	2.40Ghz	3M
Q555G6	S05/1U	I5-7200U	2	4	2.50Ghz	3M
Q575G6	S05/1U	I7-7500U	2	4	2.70Ghz	4M

Processor System
CPU	• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	6 × Intel I211-AT/I210-AT Gigabit LAN
Watch Dog	Yes

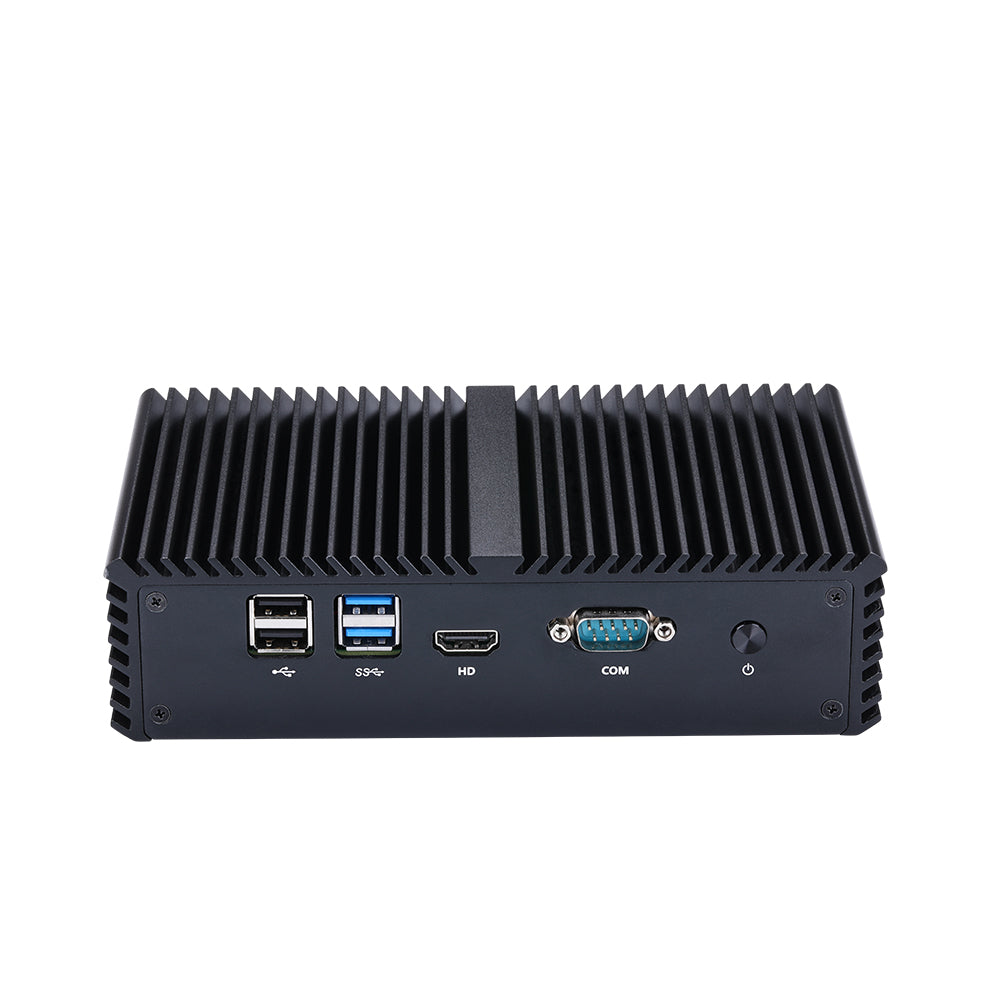

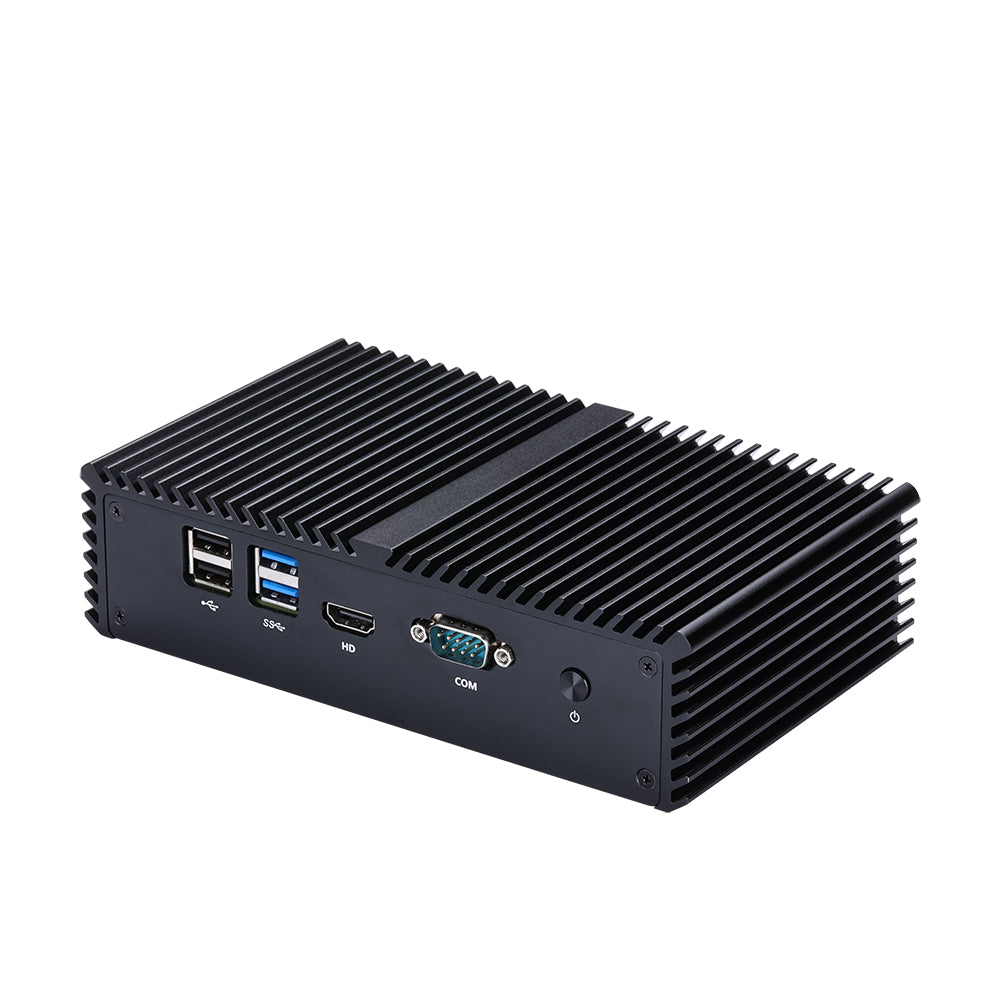

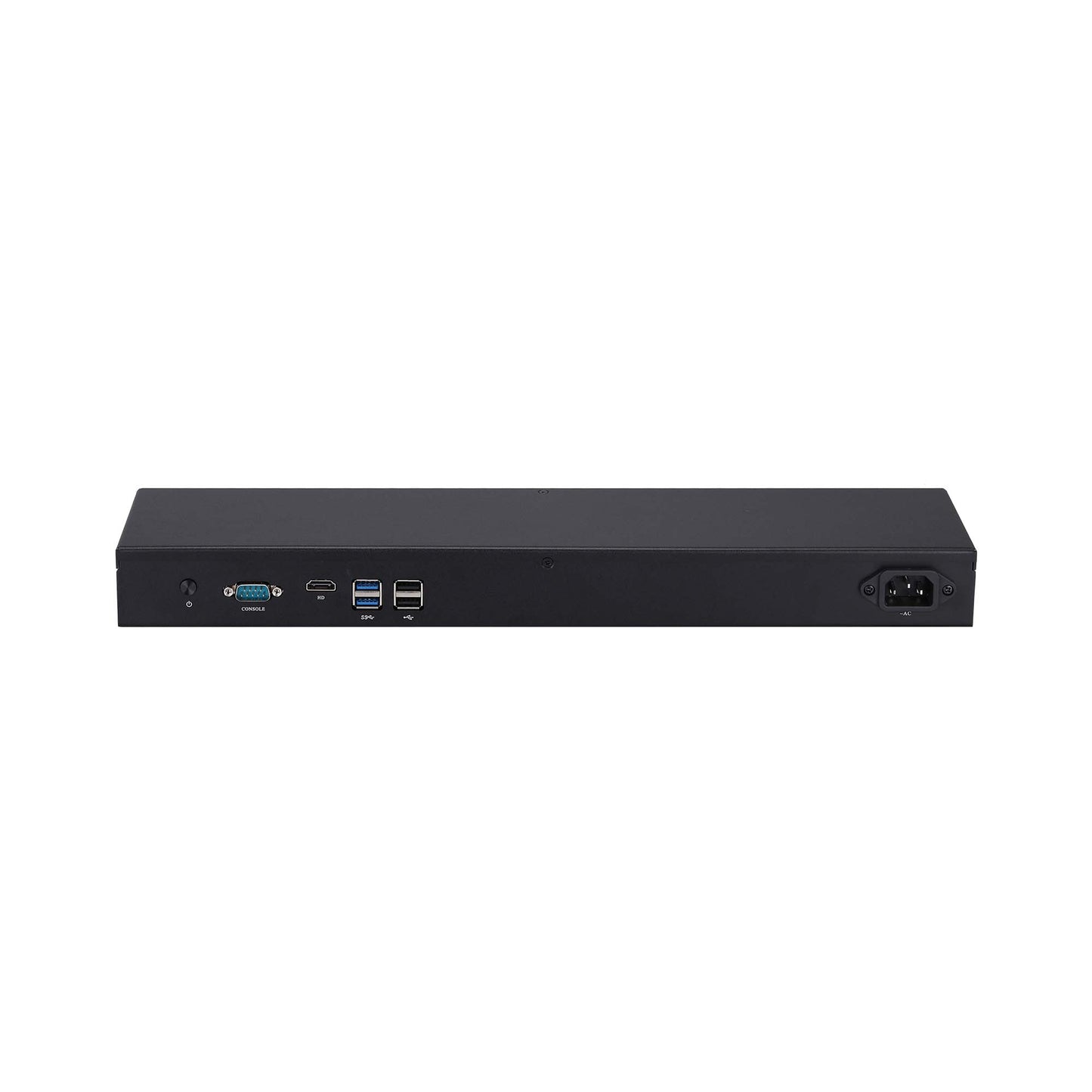

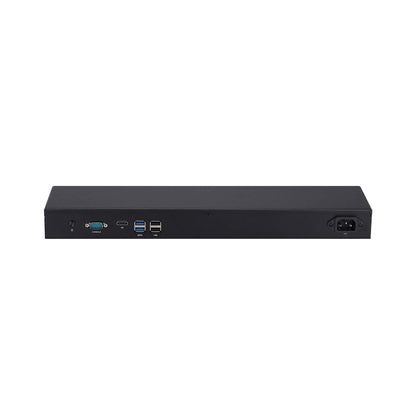

Front I/O
Power Button	1 × Power Button
USB	2 × USB 3.0, 2 × USB 2.0
Video Output	1 × HDMI
Serial Port	1 × RS-232 Port

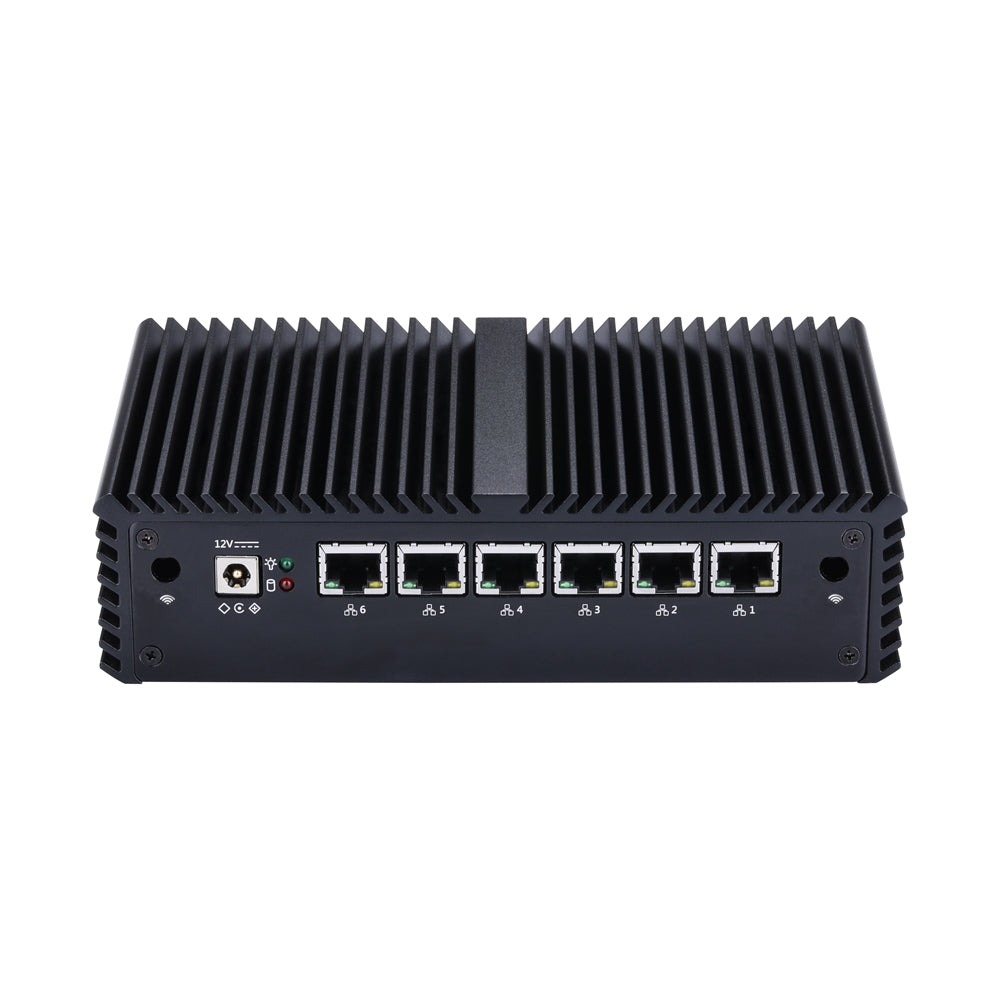

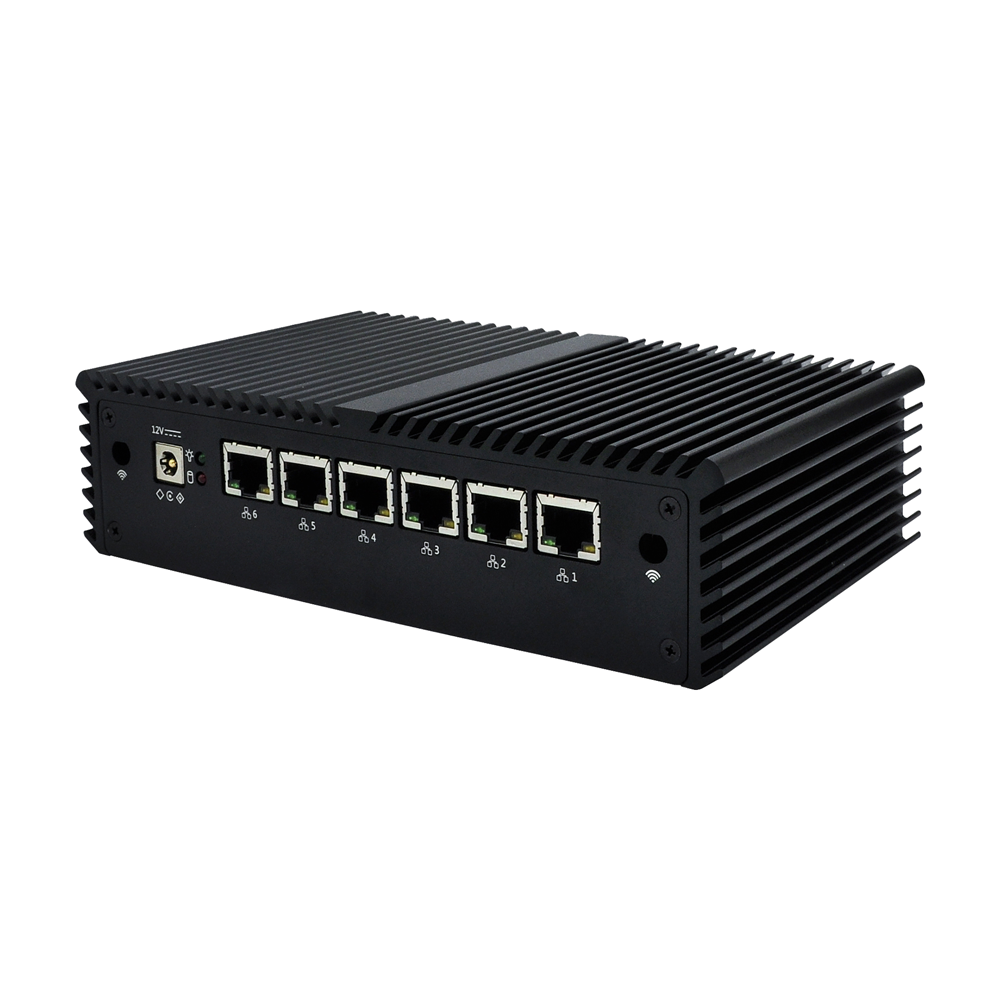

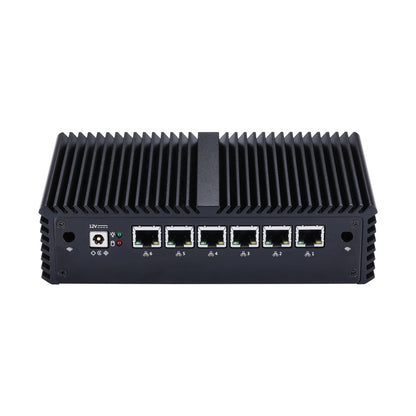

Rear I/O
Power	1 × DC Jack
LED	1 × Power LED, 1 × HDD LED
LAN	6 × Intel I211-AT/I210-AT Gigabit LAN
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe	1 × Mini PCIe Full-length for 4G Half-length for Wi-Fi
MSATA	1 × Full-length Mini PCIe for SSD
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
RS-485	0
GPIO	1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter	12V3A / 12V5A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S05: 187 × 111 × 49mm 1U Rack: 440 x 112 x 44mm
Mounting	S05: VESA bracket 1U Rack: Ear bracket
Kensington Lock	No
Cooling Mode	Fan (1U Rack) Fanless (S05)
OS Support, Drivers, Bios
OS	Windows 7 (Only for 6th Gen SkyLake), Windows 8, Windows 10, Linux
Drivers	Visit
Bios	Visit
