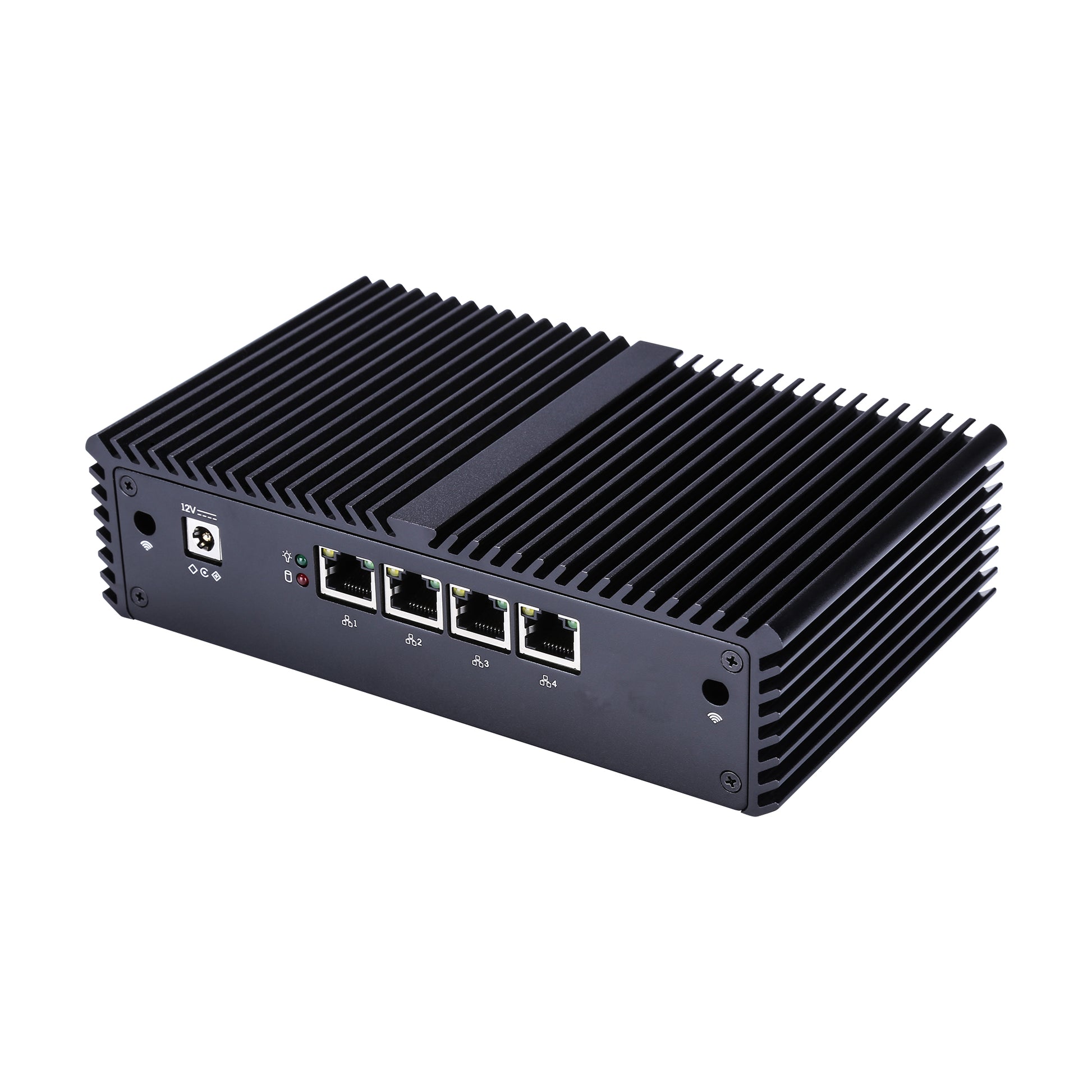

Qotom Multi Lan Router Mini PC Q30400G4 i3 i5 i7 1U Rack

$93.00 USD

~~$0.00 USD~~ $93.00 USD

Sale Sold out

Shipping calculated at checkout.

Q30400G4 Series Q30512G4 3215U Q30431G4 i3-4005U Q30451G4 i5-4200U Q30471G4 i7-4500U Q30531G4 i3-5005U

Chassis S05 1U Rack

Configuration Barebone 4G RAM 64G SSD 8G RAM 128G SSD 8G RAM 256G SSD 8G RAM 512G SSD

Quantity

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q30431G4	S05/1U	4005U	2	4	1.70Ghz	3M
Q30451G4	S05/1U	I5-4200U	2	4	1.60Ghz	3M
Q30471G4	S05/1U	I7-4500U	2	4	1.80Ghz	4M
Q30512G4	S05/1U	3215U	2	2	1.0Ghz	2M
Q30531G4	S05/1U	I3-5005U	2	4	2.00Ghz	3M

Processor System
CPU	• Intel 4th Haswell –U/Y Processor • Intel 5th Broadwell-U Processor
CPU TDP	By CPU
Memory	1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	4 × Intel I225-V/I226-V 2.5 Gigabit LAN
Watch Dog	Yes

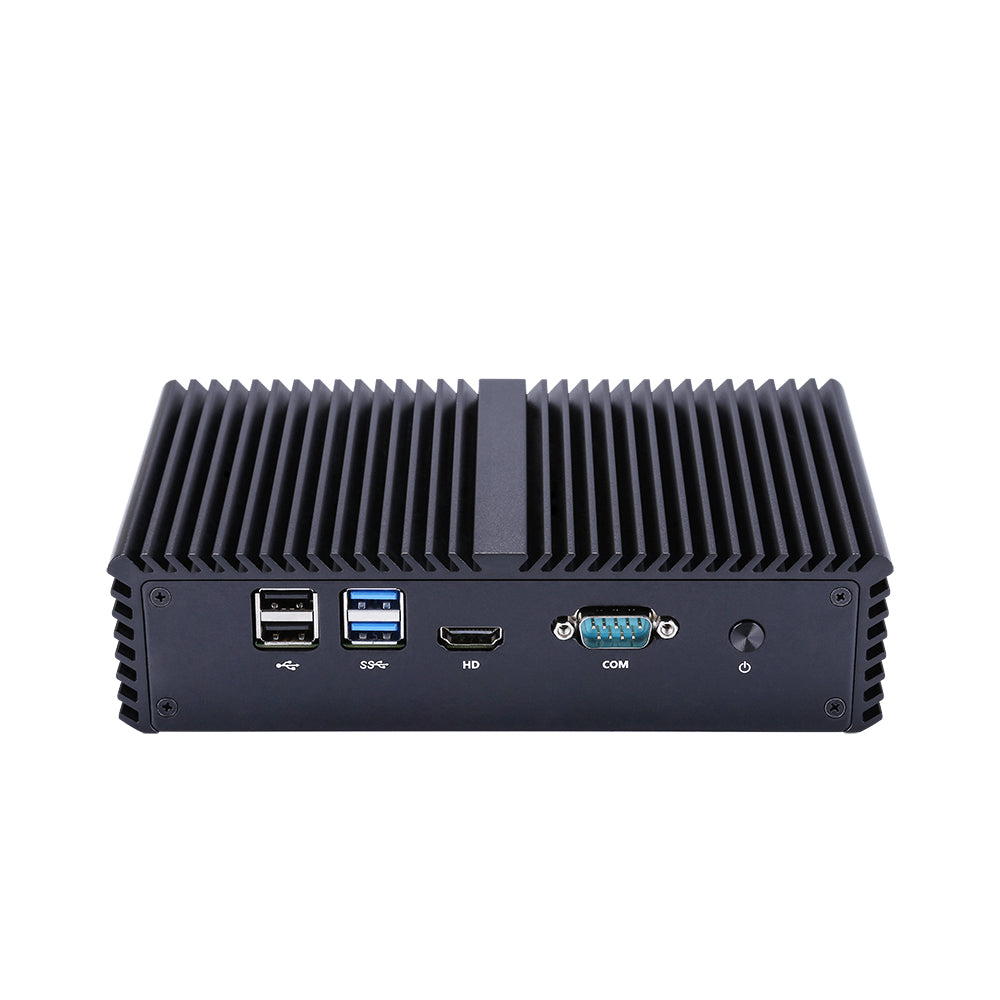

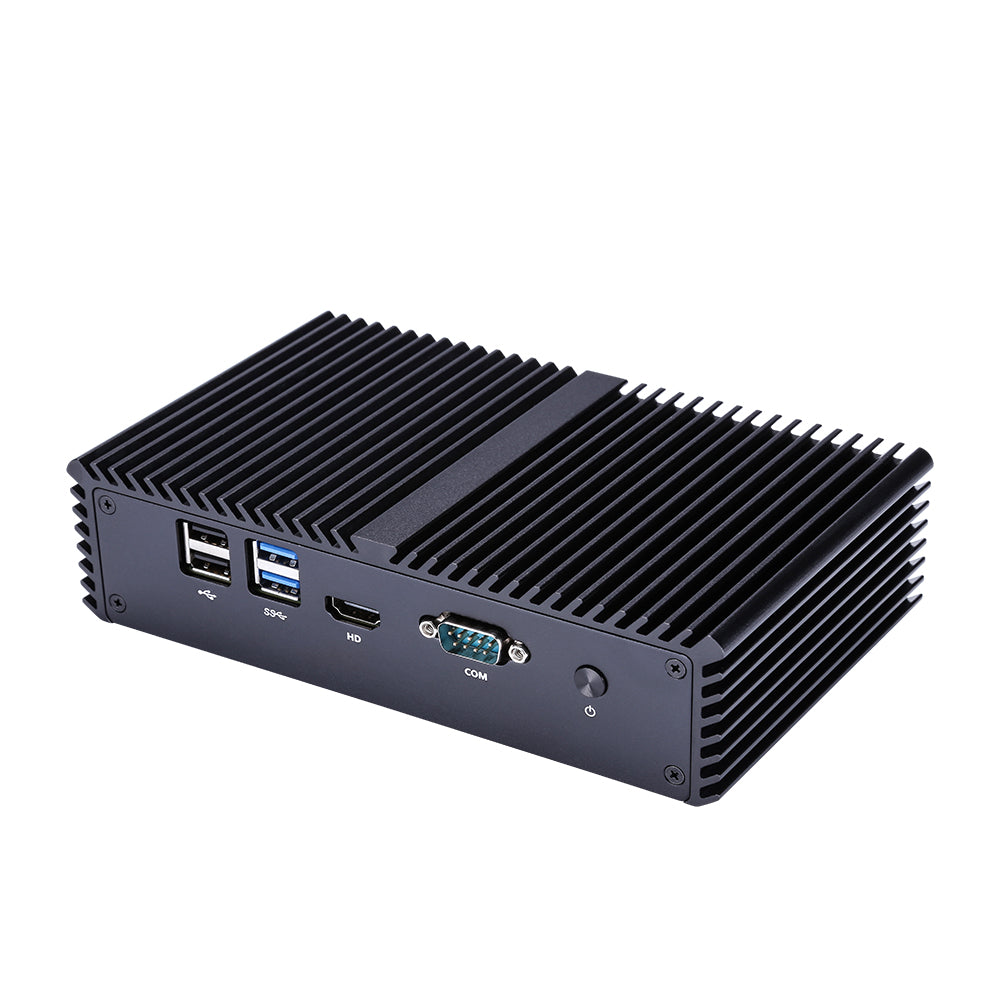

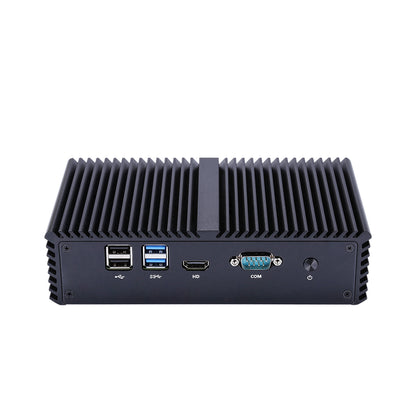

Front I/O
Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED
USB	2 × USB 3.0, 2 × USB 2.0
Video Output	1 × HDMI
Serial Port	1 × RS-232 (COM1)

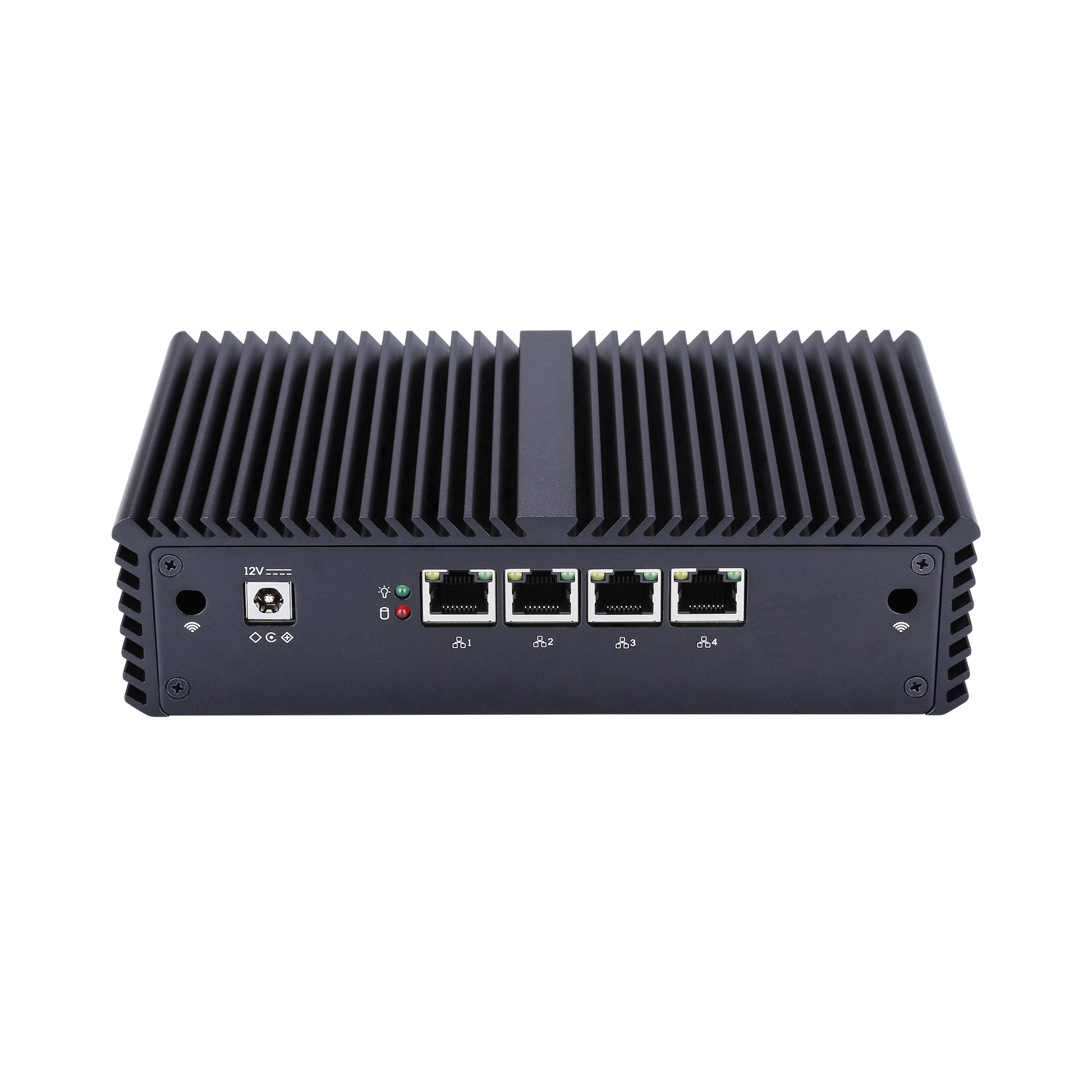

Rear I/O
Power	1 × DC Jack
LED	1 × Power LED, 1 × HDD LED
LAN	4 × Intel I225-V/I226-V 2.5 Gigabit LAN
Audio	0
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe	1 × Mini PCIe Full-length for 4G Half-length for Wi-Fi
MSATA	1 × Full-length Mini PCIe for SSD
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
VGA	0
RS-485	0
GPIO	1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter	12V3A / 12V5A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy

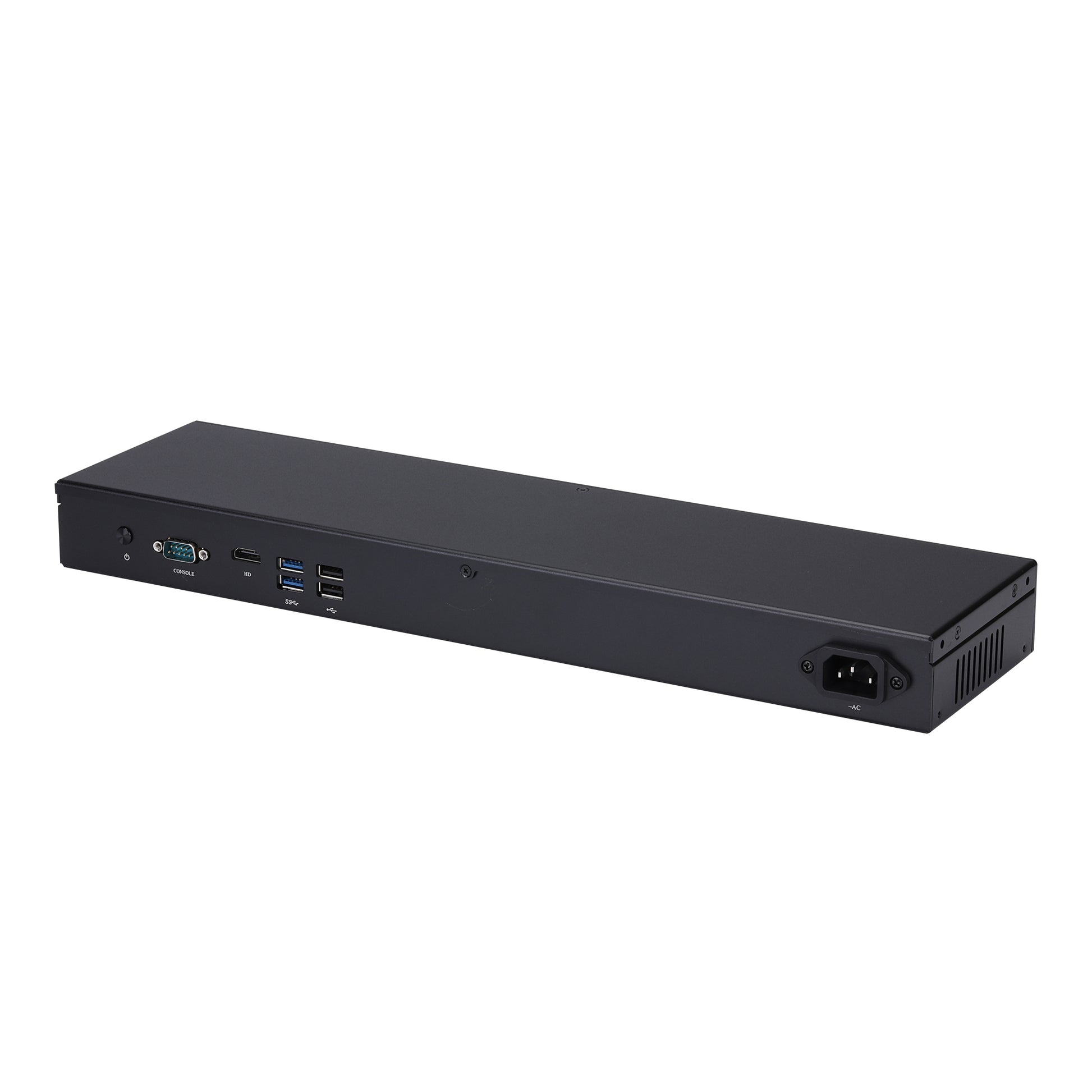

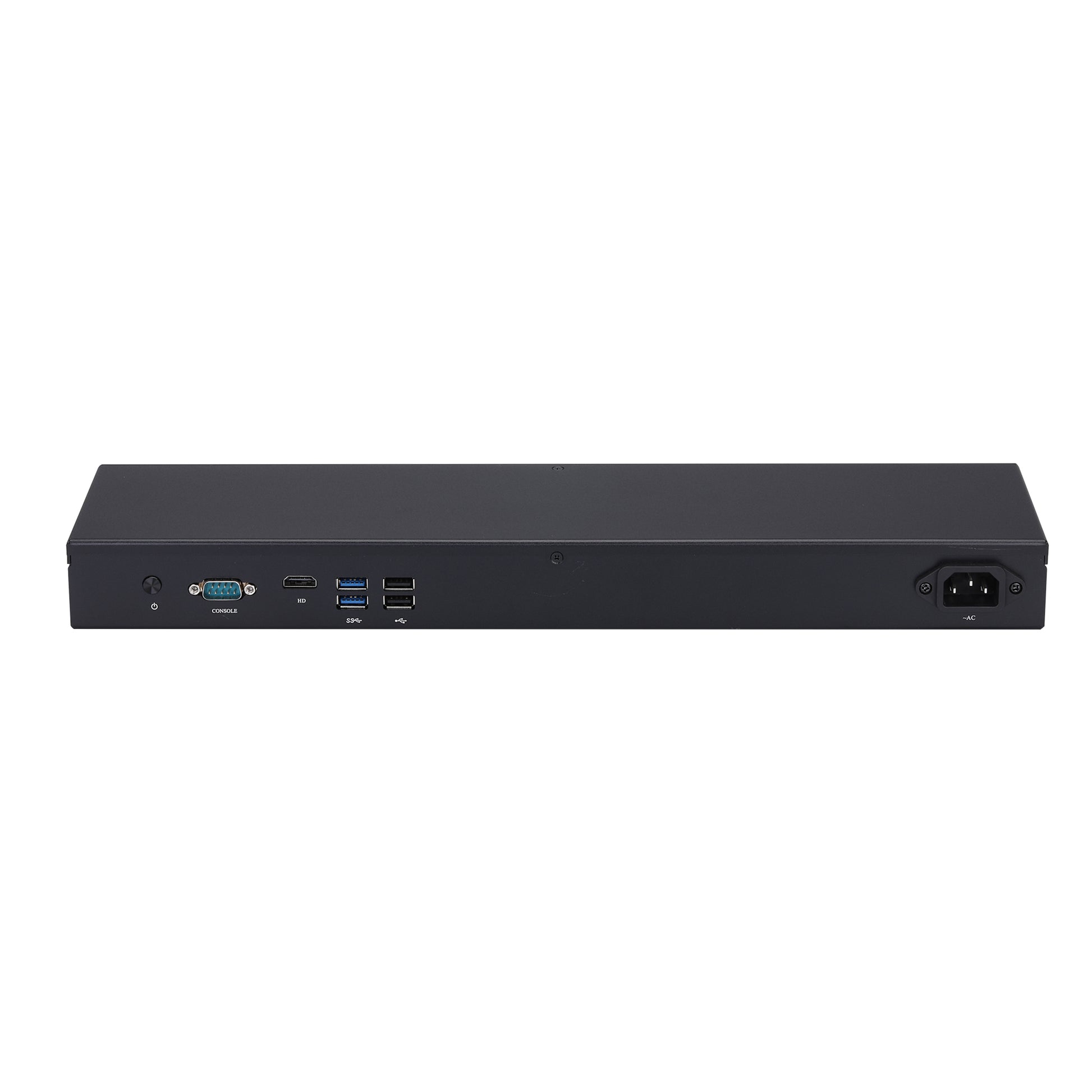

Dimension	S05: 187 × 111 × 49mm 1U Rack: 440 x 112 x 44mm
Mounting	S05: VESA bracket 1U Rack: Ear bracket
Kensington Lock	No
Cooling Mode	Fan (1U Rack) Fanless (S05)
OS Support, Drivers, Bios
OS	Windows 7, Windows 8, Windows 10, Linux
Drivers	Visit
Bios	Visit
