Qotom Multi Lan Firewall Router PC Q10900S6 1U Rack N100 N150
Qotom Multi Lan Firewall Router PC Q10900S6 1U Rack N100 N150
Regular price
$295.00 USD
Regular price
$0.00 USD
Sale price
$295.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.
| Instructions before purchase |
| 1. Import Duties & VAT & other fees (If Any) should be paid by buyer. |
| 2. Shipping way: DHL, UPS, FedEx |
| 3. Place of dispatch: Shenzhen, China |
|
4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label). If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order. |
| 5. Preinstall Ubuntu by default (except barebone device). |
| 6. Pre-set up the function of automatic start after power connected. |
| 7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com |
| Model | Case | CPU | #of Cores | #of Threads | Max Turbo Frequency | Cache |
| Q10922S6 | S13/1U | N100 | 4 | 4 | 3.40Ghz | 6M |
| Q10924S6 | S13/1U | X7425E | 4 | 4 | 3.40Ghz | 6M |
| Q11022S6 | S13/1U | N150 | 4 | 4 | 3.60Ghz | 6M |
| Processor System | |
| CPU | Intel Alder Lake-N Processor Intel Twin Lake-N Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR5 SO-DIMM Socket (Up to 48G) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset |
2 × Intel I226-V 2.5 Gigabit LAN |
| Watch Dog | Yes |

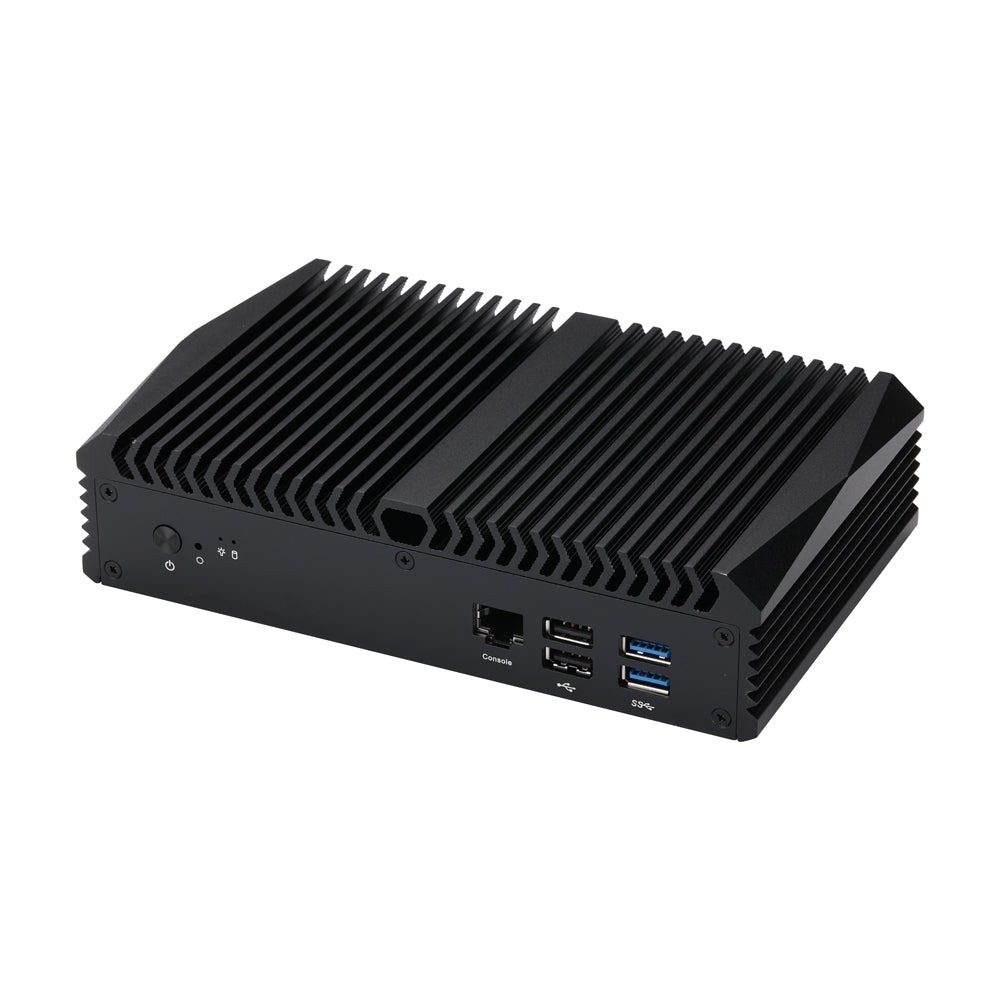

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 1 × Connector, RS-232 (RJ-45) |
| USB | 2 × USB 3.0, 2 × USB 2.0 |

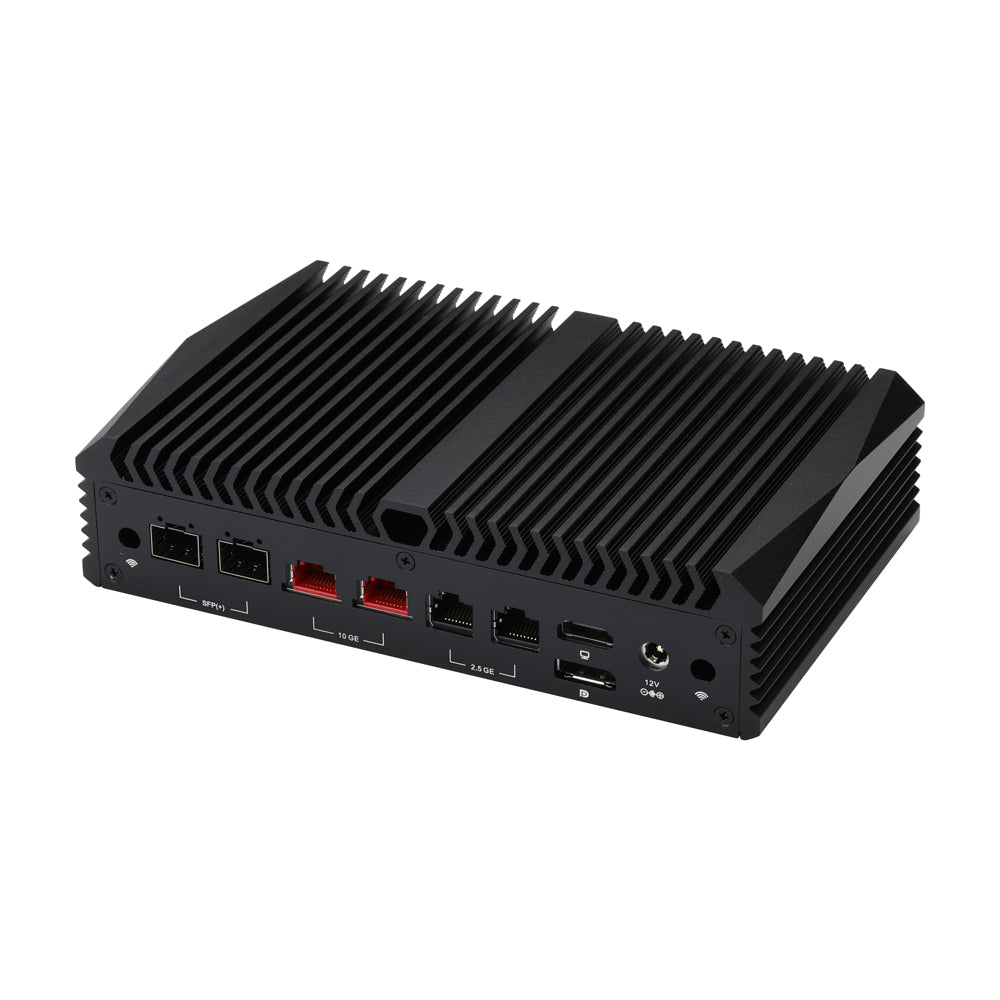

| Rear I/O | |
| Power | 1 × DC Jack |
| display | 1 ×HDMI, 1 ×Display Port |
| sFP+ | 2 × 10G SFP+ |
| LAN | 2 × 10G RJ45 2 × 2.5G RJ45 |
| Storage | |
| Type | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| Expansion | |
| eMMC | Option |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| USB 2.0 Header | 2, 2 × 5Pin, Pitch 2.0mm |
| USB 3.0 Header | 1, 2 × 5Pin, Pitch 2.0mm,Option |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin |
| Power Requirement | |
| Power Adapter | 12V5A(Power cord is included) |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | S13: 196 × 122 × 47mm, 1U: 440 × 113 × 44mm |
| Cooling Mode | Fan |
| OS Support, Drivers, Bios | |
| OS | UEFI Windows, UEFI Linux |
| Drivers | Visit |
| Bios | Visit |
