Qotom

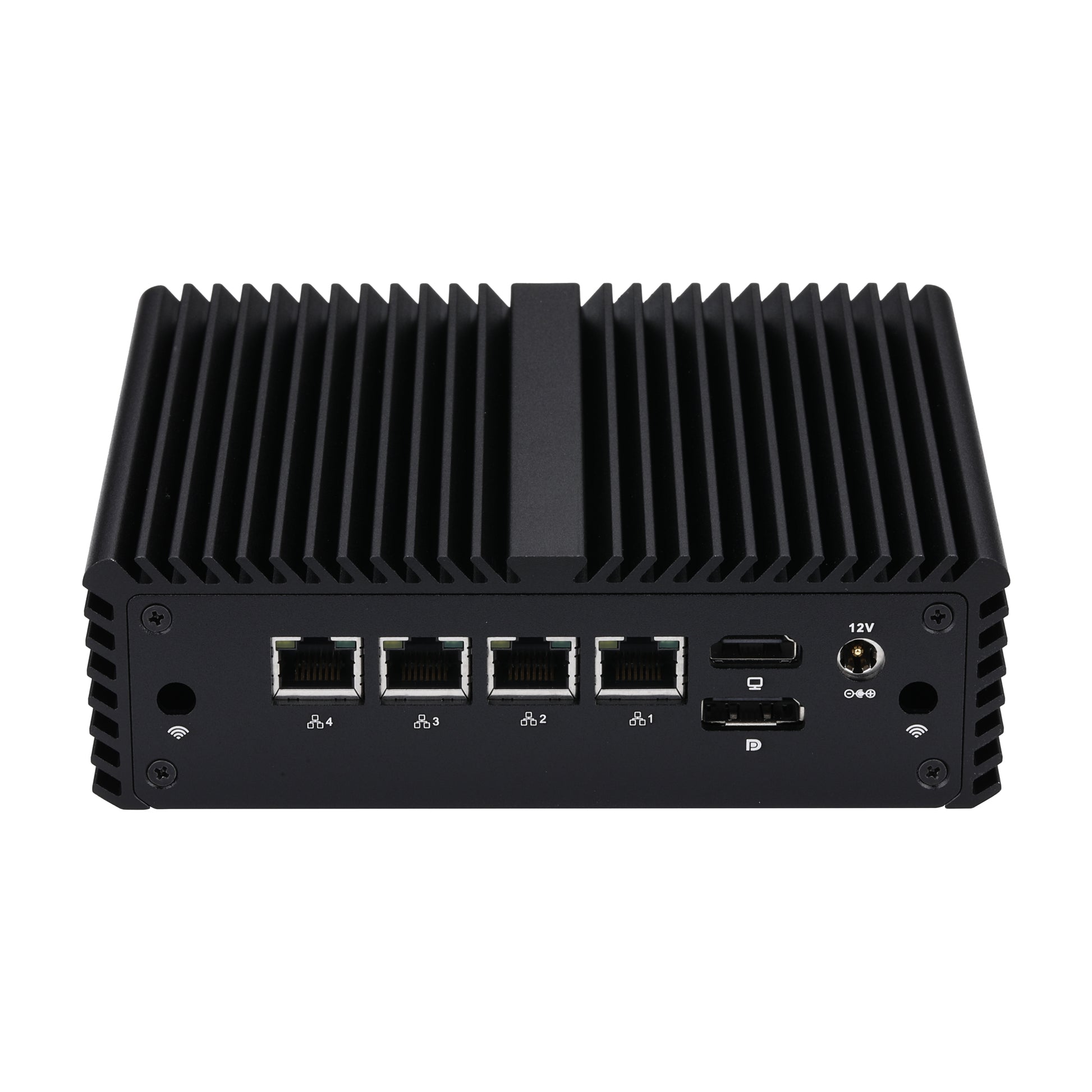

Qotom Multi LAN Firewall Router Mini PC Q10700G4 Series CPU N5105

Qotom Multi LAN Firewall Router Mini PC Q10700G4 Series CPU N5105

$117.00 USD
$0.00 USD $117.00 USD
Sale Sold out
Shipping calculated at checkout.
Configuration

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should by paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q10722G4 S08 N5105 4 4 2.0Ghz 4M
Processor System
CPU Intel Jasper Lake Processor
CPU TDP By CPU
Memory 1 × DDR4 SO-DIMM Socket (Up to 16G)
Chipset By CPU
Graphics By CPU
LAN Chipset 4 × Realtek Gigabit LAN
Audio No
Watch Dog Yes
Front I/O
Power Button 1 × Power Button, 1 × Reset Button
LED 1 × Power LED, 1 × HDD LED
Type C 1 × Type C (USB 3.0, Display Port)
USB 1 × USB3.0, 1 × USB2.0
Rear I/O
Power 1 × DC Jack
Video Output 1 × HDMI, 1 × Display Port
LAN 4 × Realtek Gigabit LAN
Audio 0
Storage
Type 1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Expansion
M.2 1 × M.2 for SSD
(M key, Type: 2280, PCIe 3.0 × 1)
M.2 1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2 1 × M.2 for Wi-Fi (E key, Type: 2230)
GPIO 1, 2 × 5Pin, Pitch 2.0mm
Power Header 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin
(Option)
SIM Card Slot 1
Clear CMOS Jumper Yes, 1 × 3Pin, Pitch 2.0mm
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.0mm
Power Requirement
Power Adapter 12V3A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension 155 × 127 × 48mm
Weight 0.83kg
Mounting VESA Mounting Bracket
Packaging Dimension 261 × 218 × 75mm
Kensington Lock No
Cooling Mode Fanless Design
OS Support, Drivers, Bios
OS UEFI Windows 10, UEFI Linux
Drivers Visit
Bios Visit
