Qotom

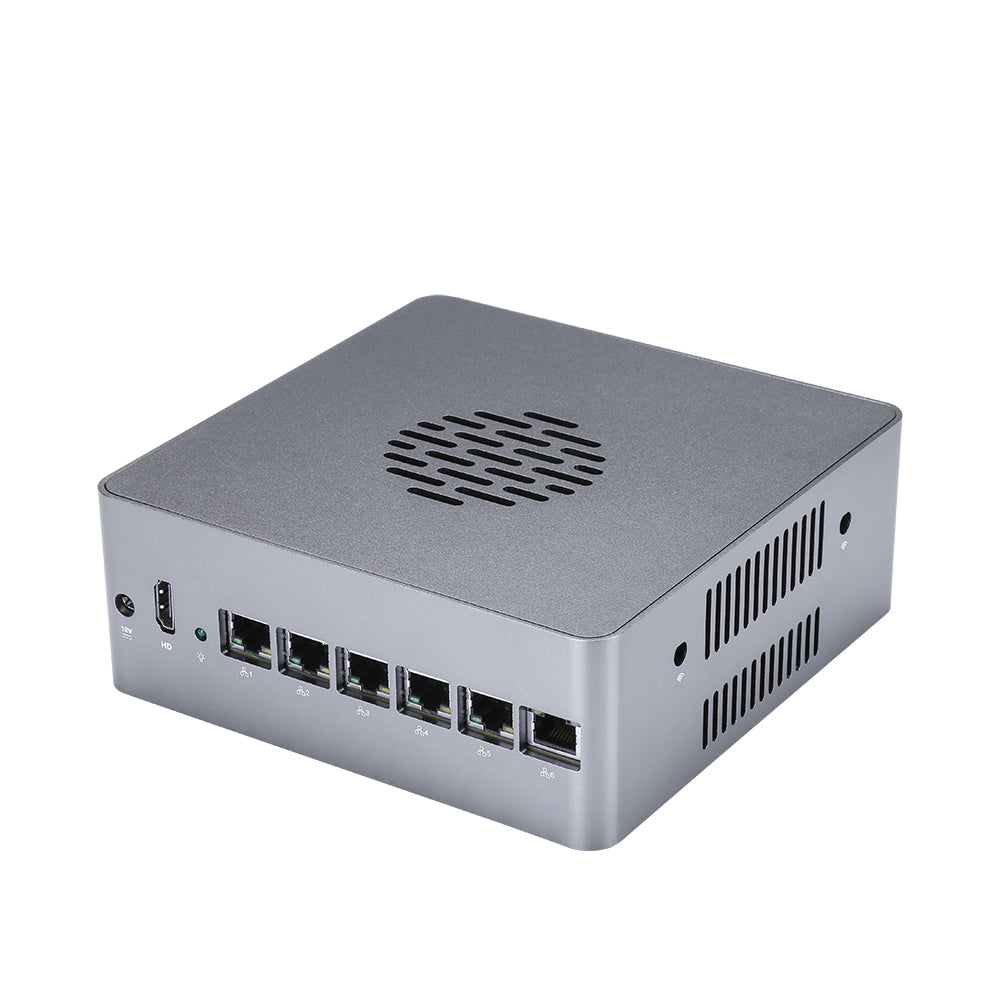

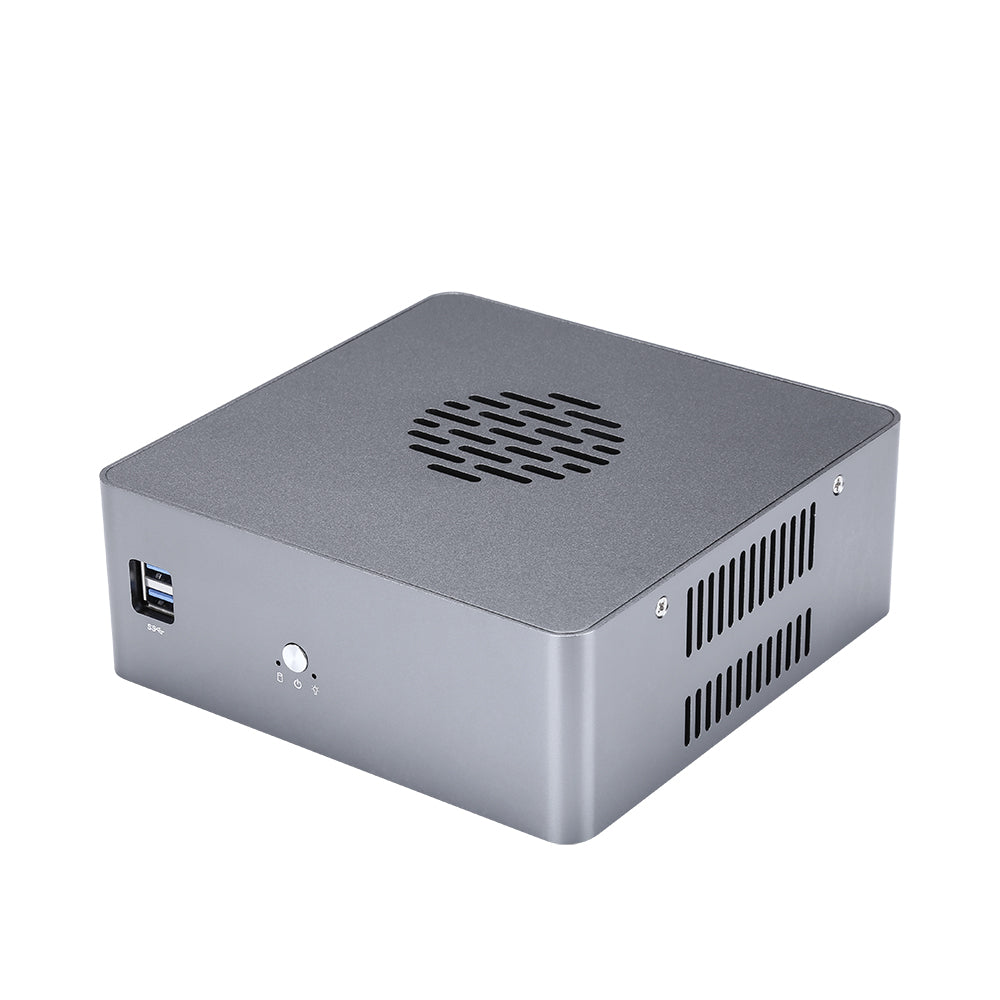

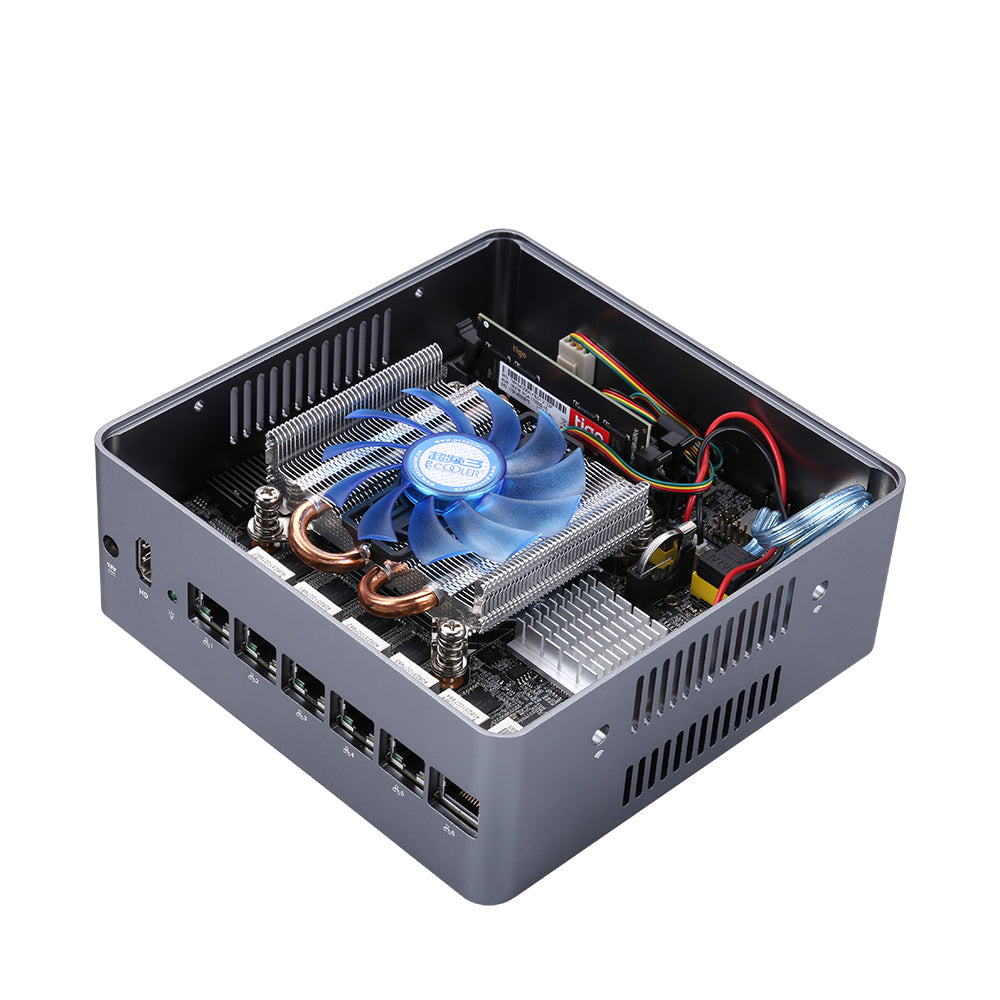

Qotom Multi LAN Desktop Router PC Q70600G6 i3 i5

Qotom Multi LAN Desktop Router PC Q70600G6 i3 i5

$171.00 USD
$0.00 USD $171.00 USD
Sale Sold out
Shipping calculated at checkout.
Q70600G6 Series
Configuration

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q610G6 S09 G3900 2 2 2.80GHz 2M
Q620G6 S09 G4500 2 2 3.50Ghz 3M
Q630G6 S09 i3-6100 2 4 3.70Ghz 3M
Q650G6 S09 i5-6400 4 4 2.70Ghz 6M
Q615G6 S09 G3930 2 2 2.90Ghz 2M
Q625G6 S09 G4560 2  4 3.50Ghz 3M
Q635G6 S09 i3-7100 2 4 3.90Ghz 3M
Q655G6 S09 i5-7500 4 4 3.40Ghz 6M
Q70811G6 S09 G4900 2 2 3.10Ghz 2M
Q70821G6 S09 G5400 2 4 3.70Ghz 4M
Q70831G6 S09 i3-8100 4 4 3.60Ghz 6M
Q70851G6 S09 i5-8400 6 6 2.90Ghz 9M
Q70911G6 S09 G4930 2 2 3.20Ghz 2M
Q70921G6 S09 G5420 2 4 3.80Ghz 4M
Q70931G6 S09 i3-9100 4 4 3.60Ghz 6M
Q70951G6 S09 i3-9400 6 6 2.90Ghz 9M

Processor System
CPU • Intel 6th Skylake-S Processor
• Intel 7th Kabylake-S Processor
• Intel 8th Coffee Lake-S Processor
• Intel 9th Coffee Lake-R-S Processor
CPU TDP By CPU
Memory 2 × DDR4 SO-DIMM Socket (Up to 64G, 2133MHz)
Chipset Intel B150
Graphics By CPU
LAN Chipset 6 × Intel I211-AT/I210-AT Gigabit LAN
Audio No
Watch Dog Yes

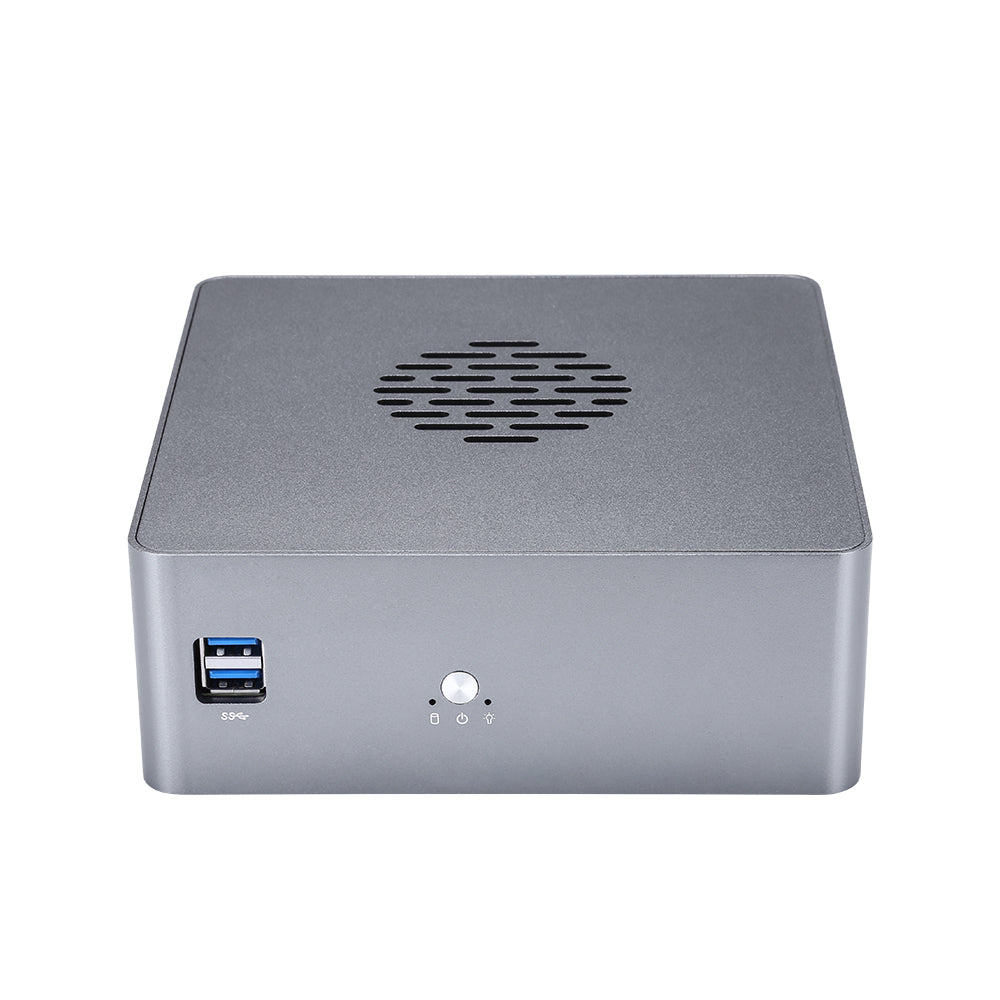

Front I/O
Power Button 1
LED 1 × Power LED, 1 × HDD LED
Serial Port 0
USB 2 × USB 3.0

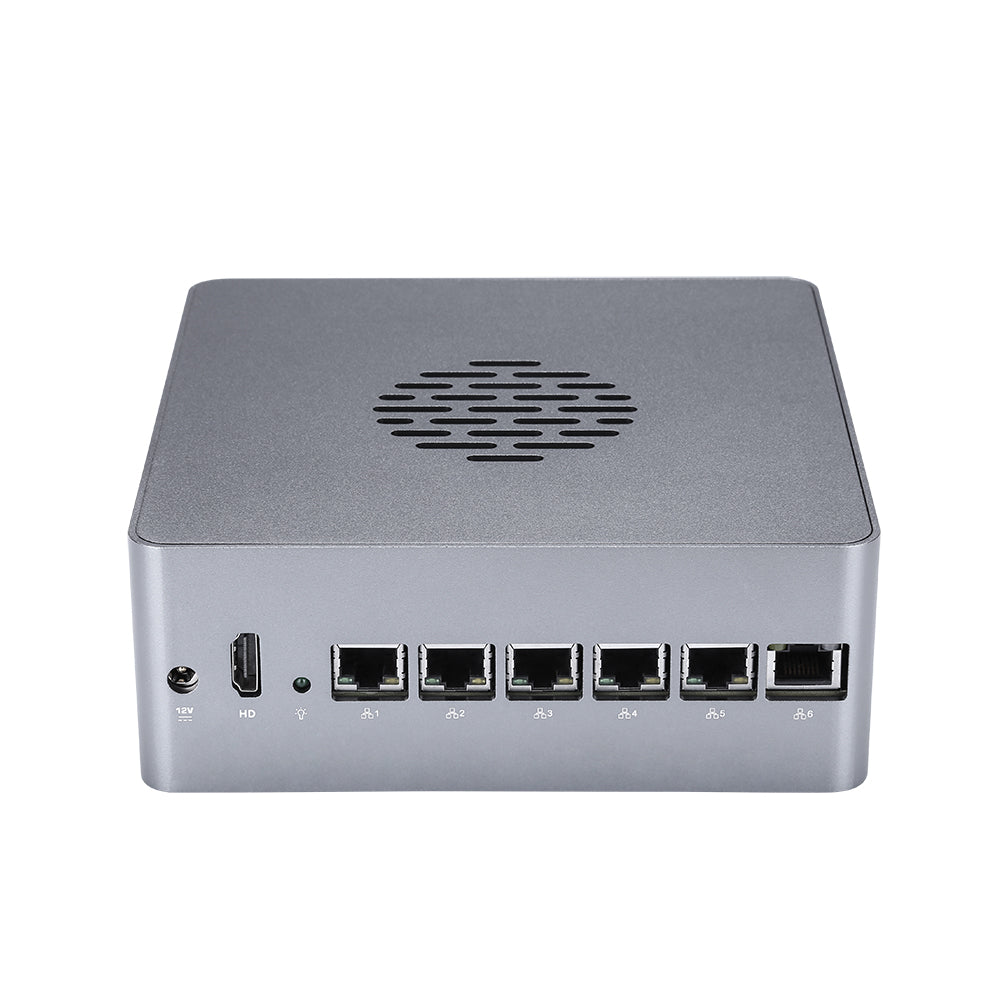

Rear I/O
Power 1 × DC Jack
Video Output 1 × HDMI
LED 1 × Power LED
LAN 6 × Intel I211-AT/I210-AT Gigabit LAN
Storage
Type 1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280)
Expansion
M.2 1 × M.2 for SSD (M key, Type: 2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
Mini PCIe 1 × Mini PCIe
Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot 1
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper Yes, 1 × 3Pin, Pitch 2.0mm
GPIO 1, 2 × 5Pin, Pitch 2.0mm
RS-485 0
Power Requirement
Power Adapter 19V5A/12V7A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension S09: 164 × 164 × 61mm
Mounting No
Kensington Lock No
Cooling Mode Fan
OS Support, Drivers, Bios
OS Windows 10, Linux
Windows 7 (Only for 6th Gen Skylake)
Drivers Visit
Bios Visit
