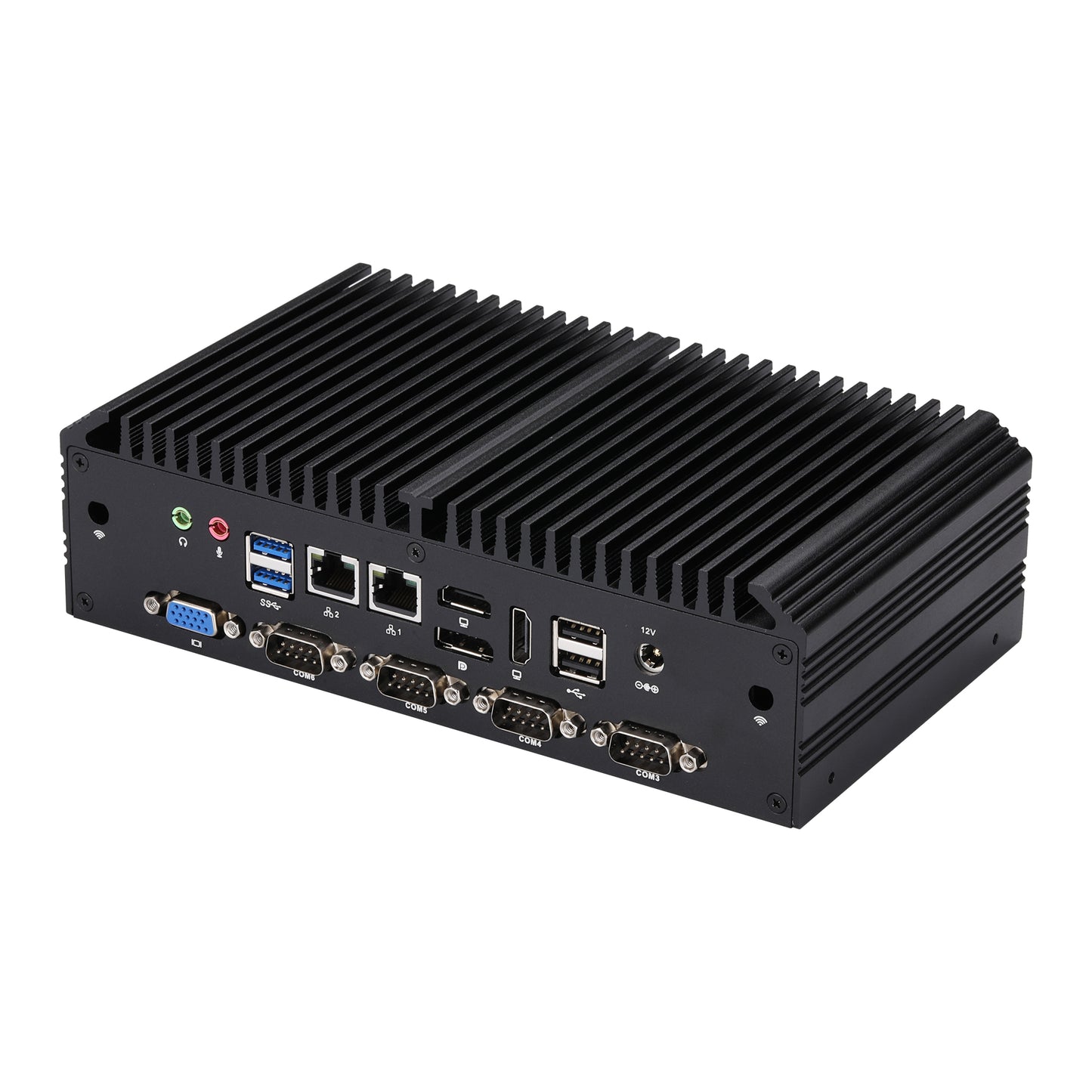

Qotom Multi COM Q31200X I5 1235U 1240P Industrial PC
Qotom Multi COM Q31200X I5 1235U 1240P Industrial PC
Regular price
$333.00 USD
Regular price
$0.00 USD
Sale price
$333.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.
| Instructions before purchase |
| 1. Import Duties & VAT & other fees (If Any) should be paid by buyer. |
| 2. Shipping way: DHL, UPS, FedEx |
| 3. Place of dispatch: Shenzhen, China |
|
4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label). If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order. |
| 5. Preinstall Ubuntu by default (except barebone device). |
| 6. Pre-set up the function of automatic start after power connected. |
| 7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com |
| Model | Case | CPU | #of Cores | #of Threads | Max Turbo Frequency | Cache |
| Q31211X | S10/S20 | Celeron 7305 | 5 | 5 | - | 8M |
| Q31221X | S10/S20 | Pentium 8505 | 5 | 6 | 4.4GHz | 8M |
| Q31231X | S10/S20 | Core i3 1215U | 6 | 8 | 4.4GHz | 10M |
| Q31251X | S10/S20 | Core i5 1235U | 10 | 12 | 4.4GHz | 12M |
| Q31271X | S10/S20 | Core i7 1255U | 10 | 12 | 4.7GHz | 12M |
| Q41231X | S10/S20 | Core i3 1220P | 10 | 12 | 4.4GHz | 12M |
| Q41251X | S10/S20 | Core i5 1240P | 12 | 16 | 4.4GHz | 12M |
| Q41271X | S10/S20 | Core i7 1260P | 12 | 16 | 4.7GHz | 18M |
| Processor System | |
| CPU | • Intel 12th Alder Lake–P Processor • Intel 13th Raptor Lake–P Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 3200MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Serial Port | 2 × RS-232 (COM1/2 Support 5V/12V) |
| SIM Card Slot | 1 |
| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × Display Port, 2 × HDMI, 1 × VGA |
| LAN | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 4 × RS-232 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| SIM Card Slot | 1 |
| AutoStart Jumper | 1, 1 × 3Pin, Pitch 2.54mm |
| CMOS Clear Jumper | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 2 × RS-232 (COM1/2 can be set up RS-485) |
| DC-in | 0 |
| Power Requirement | |
| Power Adapter | 19V4.74A (Power cord is included) |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | S10: 217 × 122 × 62mm S20: 221 × 121 × 62mm |
| Mounting | VESA Mounting Bracket |
| Kensington Lock | No |
| Cooling Mode | Fanless Design, Fan-assisted Cooling |
| OS Support, Drivers, Bios | |
| OS | UEFI Windows 10, UEFI Linux |
| Drivers | Visit |
| Bios | Visit |
