Qotom Multi COM Q30900X I3 I5 I7 Fanless Industrial PC

$145.00 USD

~~$0.00 USD~~ $145.00 USD

Sale Sold out

Shipping calculated at checkout.

Q30900X Series Q1012X 4305U Q1020X 5405U Q1052X i5-8260U Q1015X 5205U Q1035X i3-10110U Q1055X i5-10210U Q1077X i7-10710U

Configuration Barebone 4G RAM 128G SSD 8G RAM 128G SSD 16G RAM 256G SSD 16G RAM 512G SSD 32G RAM 512G SSD

Chassis S10 S20

Quantity

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q1012X	S10/S20	Celeron 4305U	2	2	2.40Ghz	2M
Q1020X	S10/S20	Pentium 5405U	2	4	2.30Ghz	2M
Q1052X	S10/S20	Core i5 8260U	4	8	1.60Ghz	6M
Q1015X	S10/S20	Celeron 5205U	2	2	1.90Ghz	2M
Q1035X	S10/S20	Core i3 10110U	2	4	2.10Ghz	4M
Q1055X	S10/S20	Core i5 10210U	4	8	1.60Ghz	6M
Q1077X	S10/S20	Core i7 10710U	6	12	1.10Ghz	12M

Processor System
CPU	• Intel 8th Whiskey Lake-U Processor • Intel 8th Coffee Lake-U Processor • Intel 10th Comet lake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

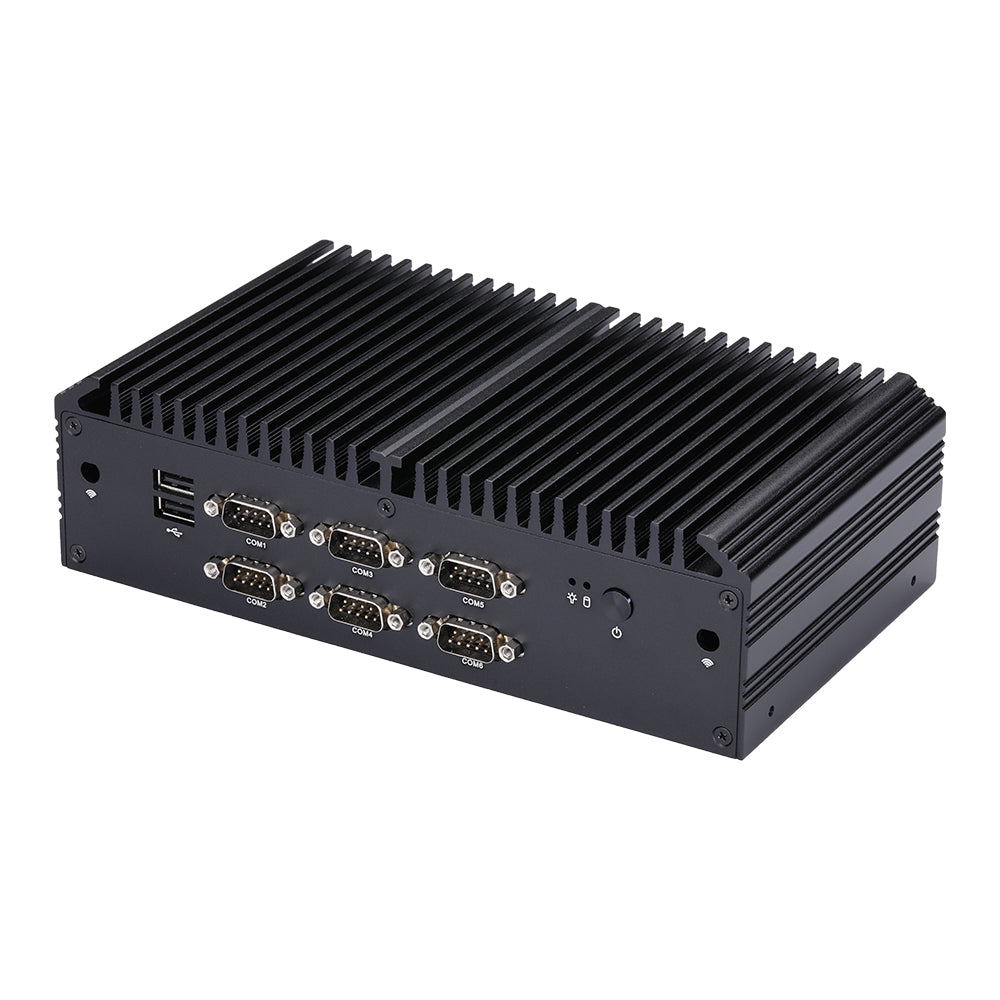

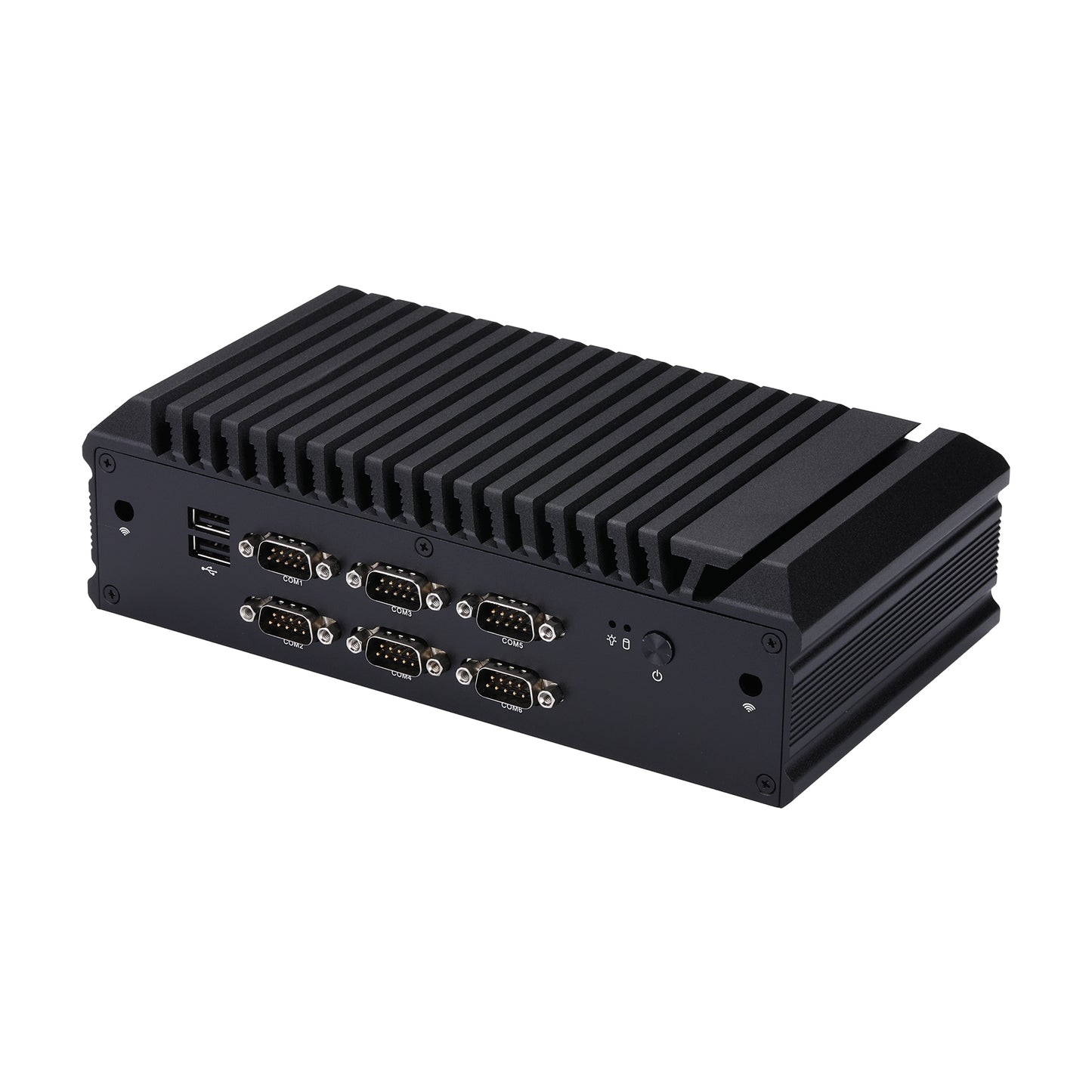

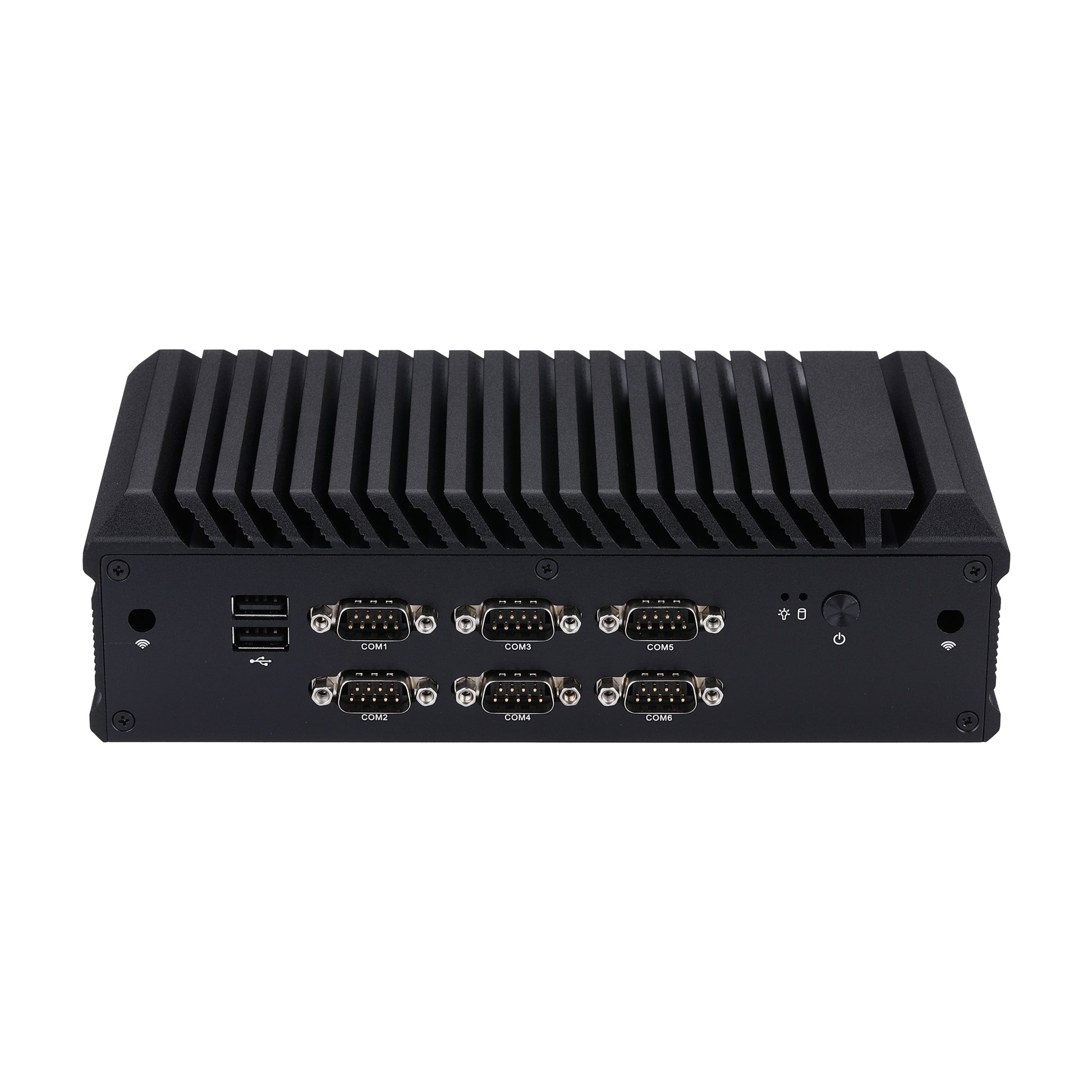

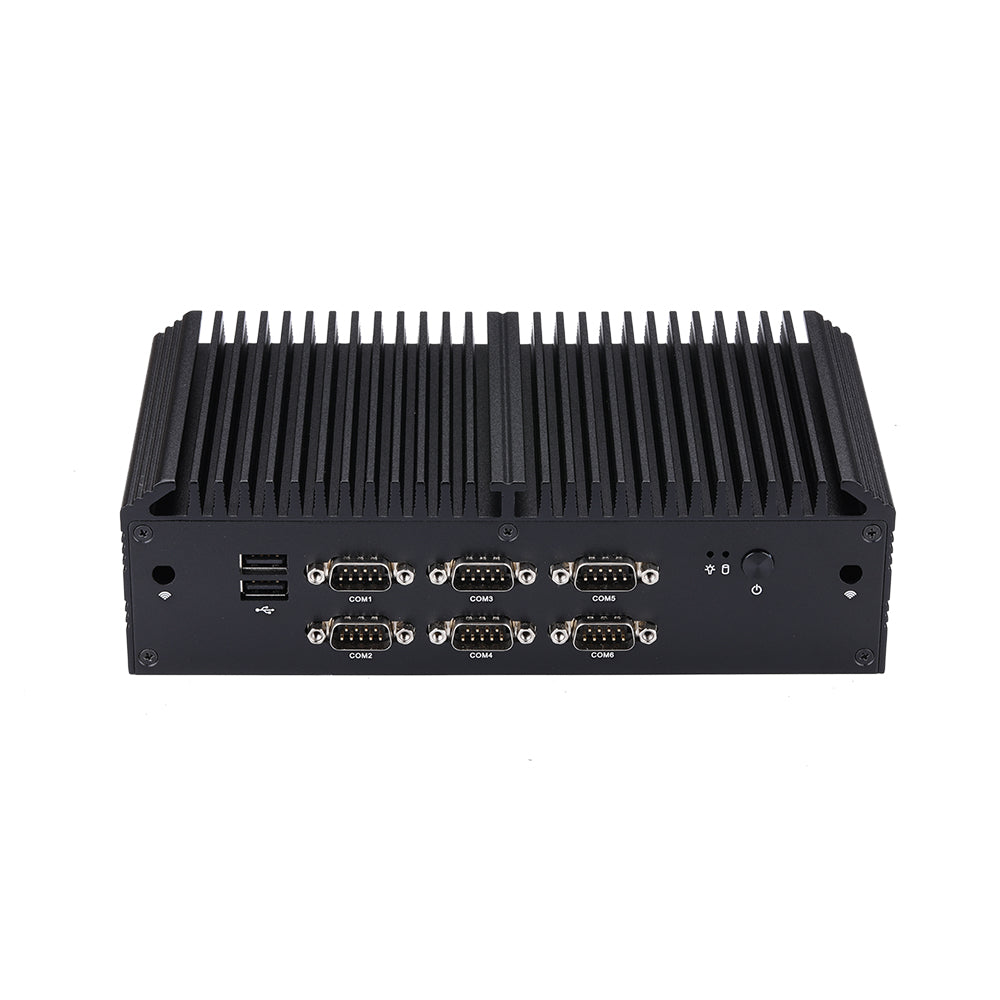

Front I/O
Power Button	1
LED	1 × Power LED, 1 × HDD LED
Serial Port	6 × RS-232 (COM1/2 can be set up as RS-485, Support 5V/12V)
USB	2 × USB 2.0 (Not for 5405U)

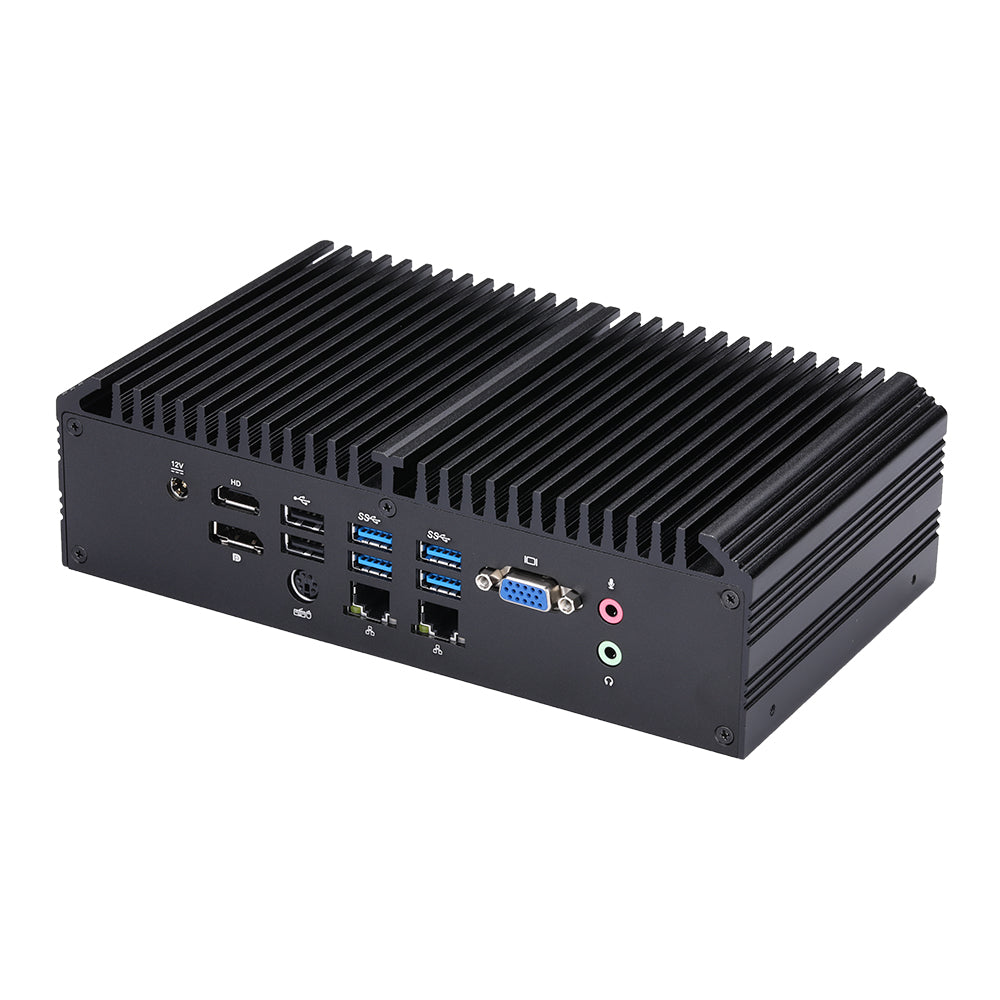

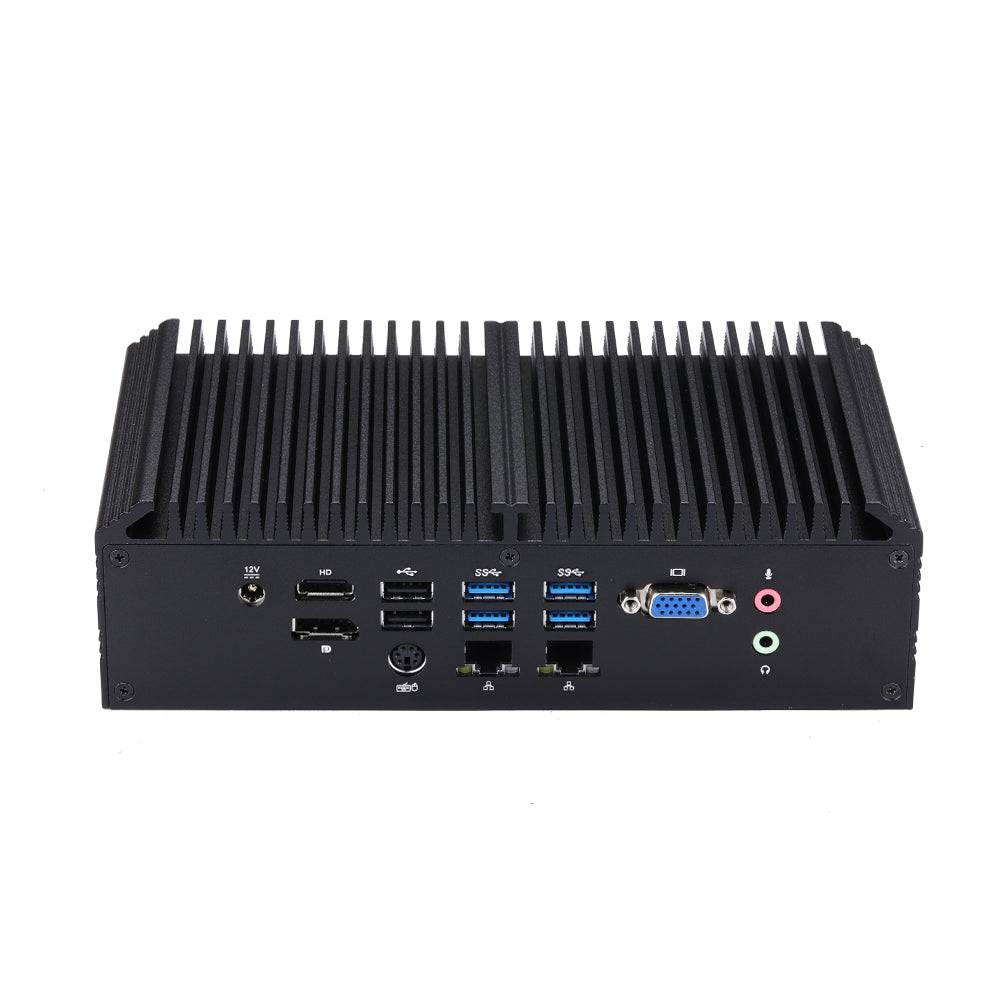

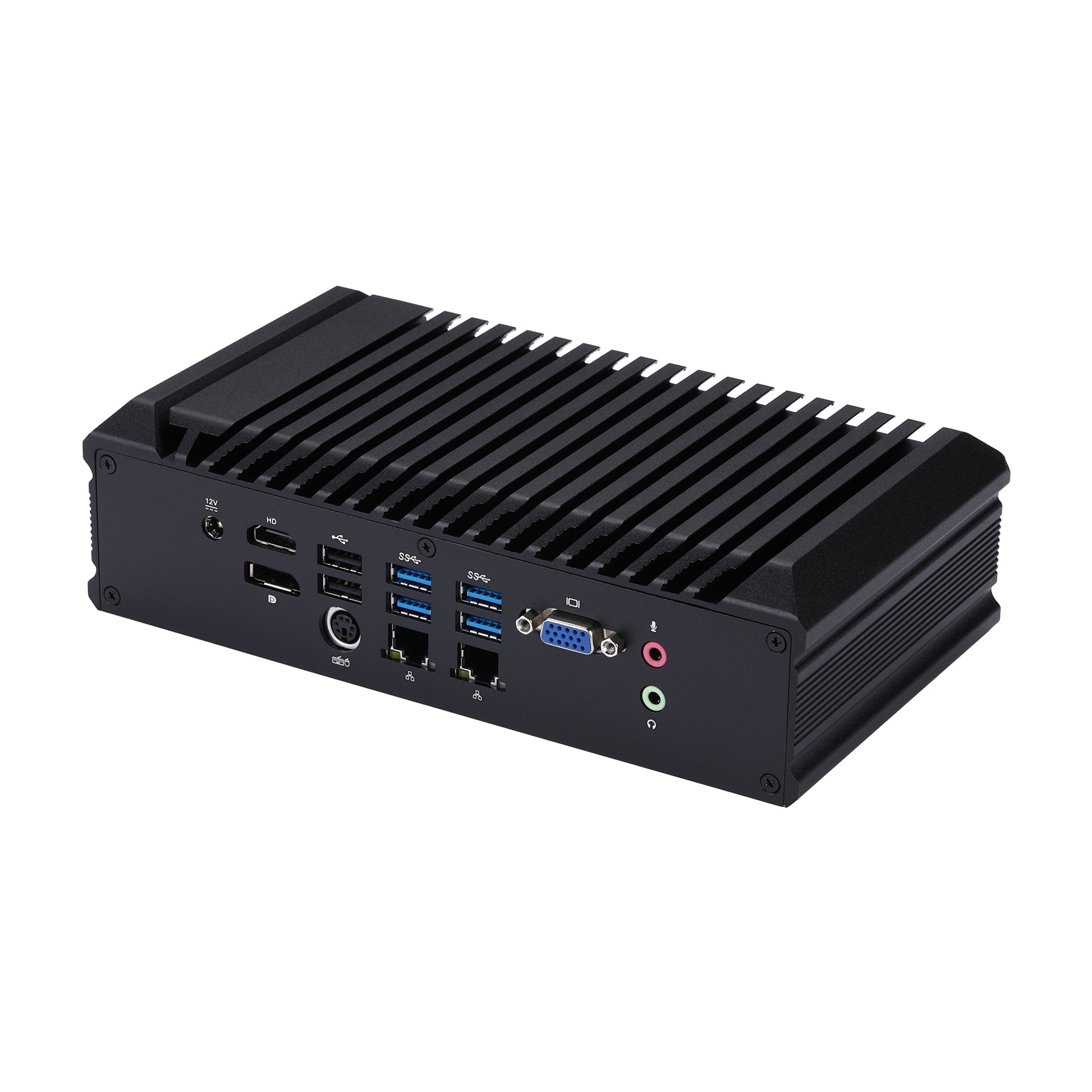

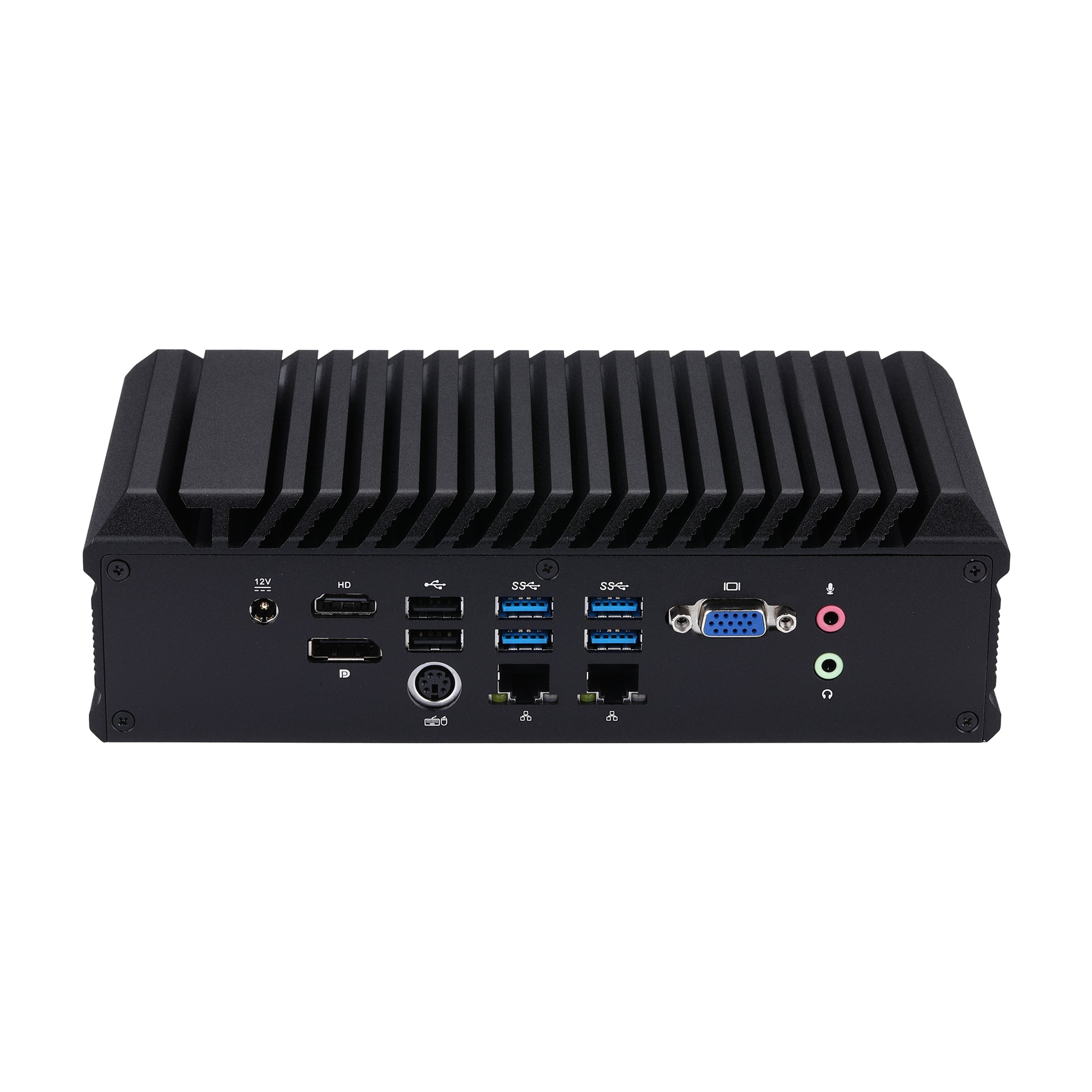

Rear I/O
Power	1 × DC Jack
Video Output	1 × Display Port, 1 × HDMI, 1 × VGA
LAN	2 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB	4 × USB 3.0, 2 × USB 2.0
Audio	1 × Mic-in, 1 × Line-out
PS/2	1 × PS/2 (Mouse or Keyboard)
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280)

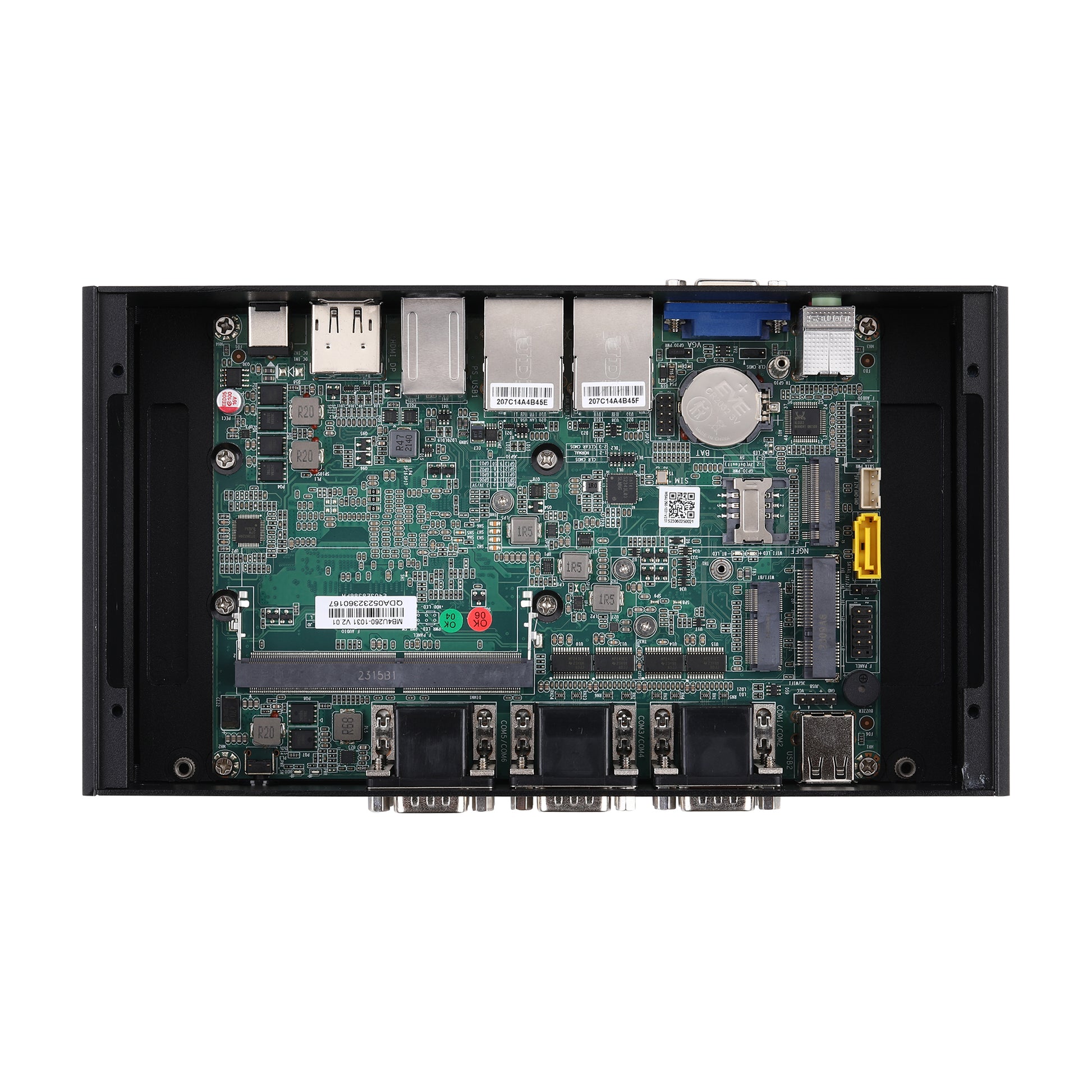

Expansion
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.2	1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	2
DC-in	No
Power Requirement
Power Adapter	12V3A, 4A, 5A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S10: 217 × 122 × 62mm S20: 221 × 121 × 62mm
Mounting	VESA Mounting Bracket
Kensington Lock	No
Cooling Mode	Fanless Design
OS Support, Drivers, Bios
OS	Windows 10, Linux
Drivers	Visit
Bios	Visit

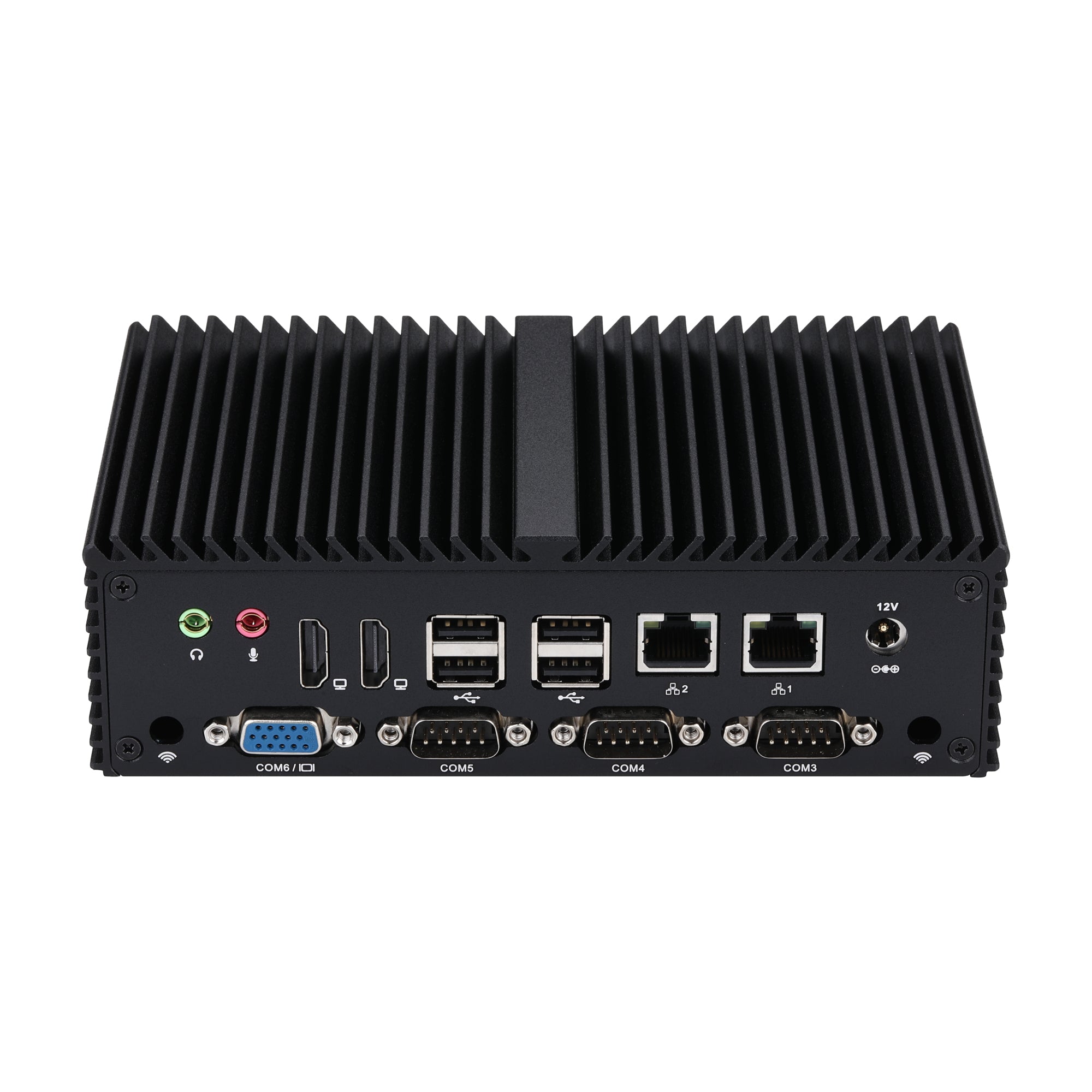

Multi COM Series
Model: Q10922X
Fanless PC, Intel CPU N100 is integrated onboard, support 1xDDR5 memory, 1xM.2 SSD and 1x2.5" HDD/SSD, 2x Realtek 2.G Lan, etc.
Click here

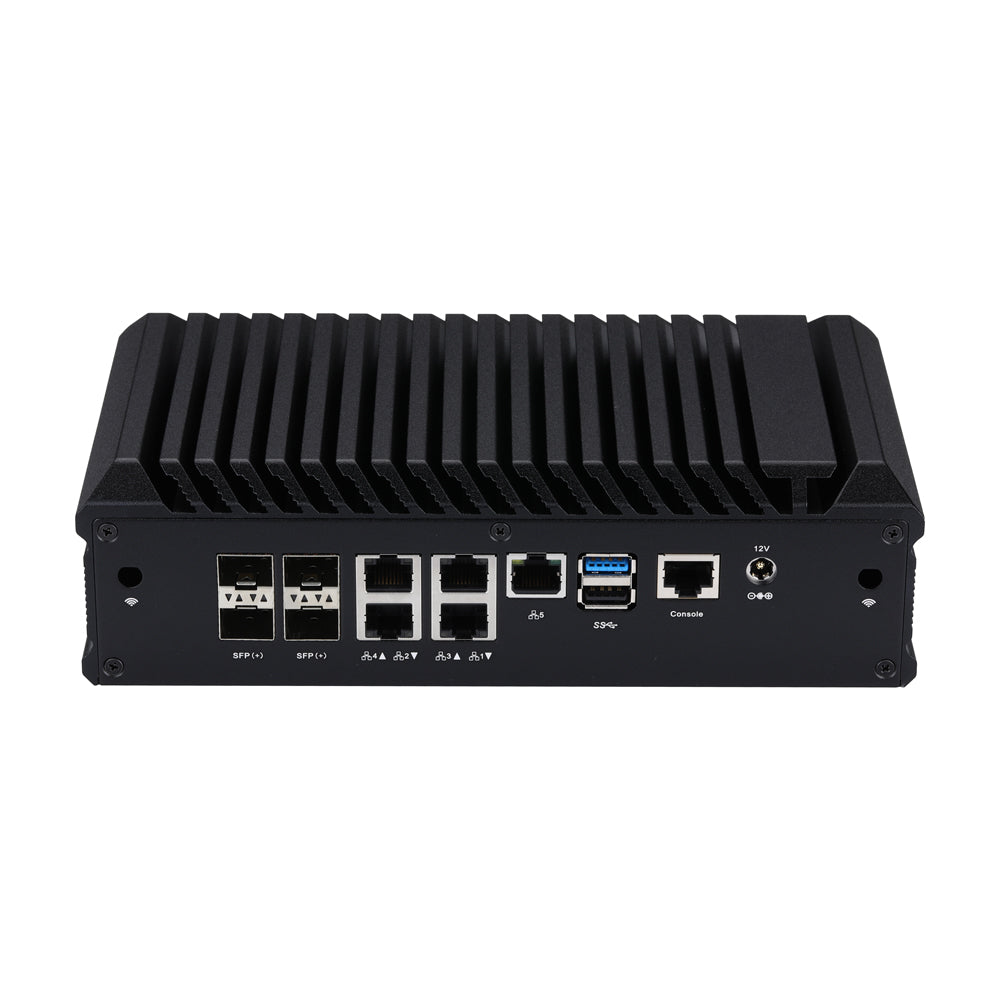

Multi LAN Series
Model: Q20342G9
Fanless PC, Intel Denverton CPU C3808 is integrated onboard, support 2 x DDR4 memory, 2 x M.2 SSD and 2 x 2.5" HDD/SSD, 5x Intel 2.5G i225-V/i226-V Lan, 4 x 10G SFP+ etc.
Click here

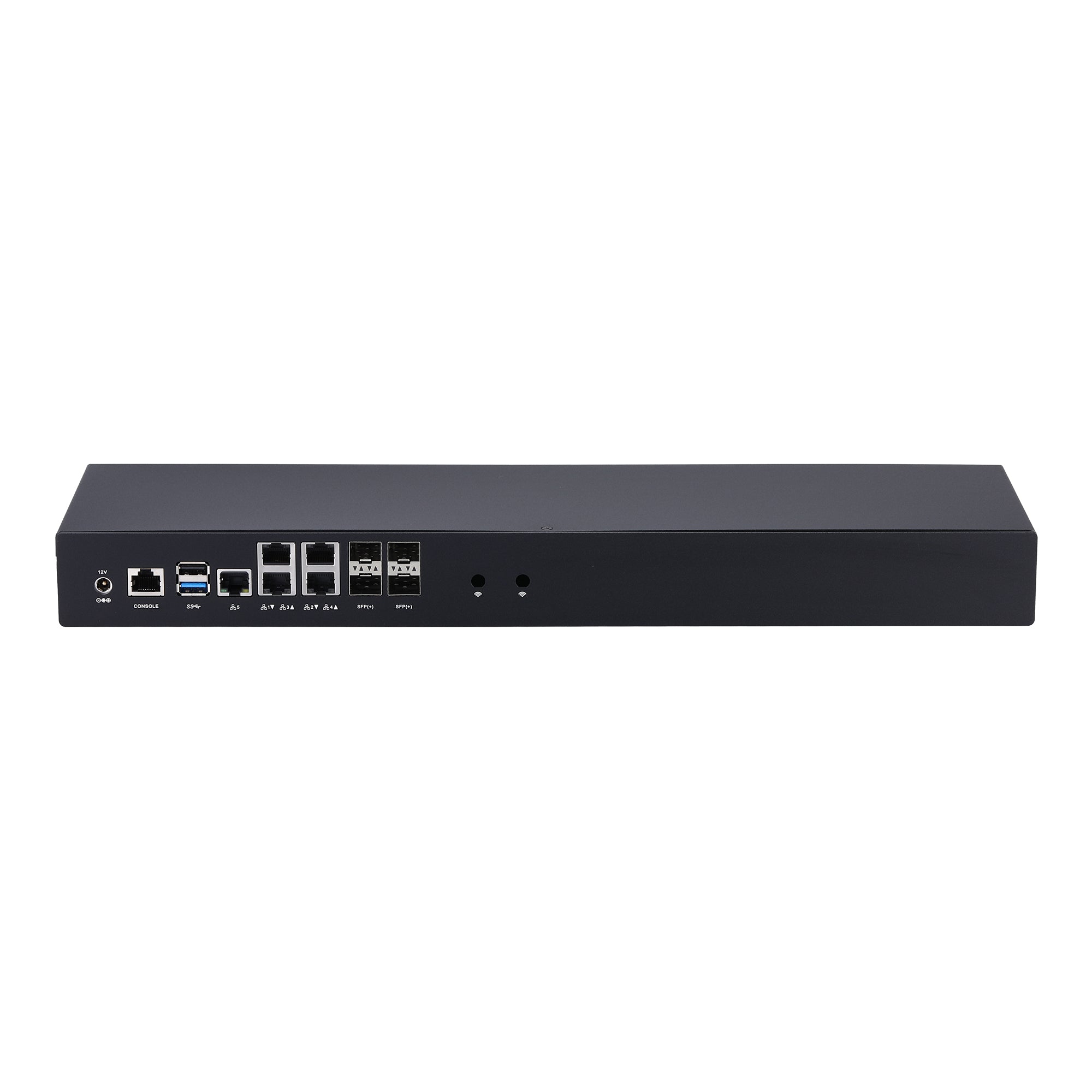

1U Series
