Qotom

Qotom Multi COM Q30600X I3 I5 I7 Fanless Industrial PC

$120.00 USD

~~$0.00 USD~~ $120.00 USD

Sale Sold out

Shipping calculated at checkout.

Chassis S10 S20

Q30600X Series Q30611X 3855U Q30651X i5-6200U Q30731X i3-7100U Q30751X i5-7200U Q30831X i3-8130U

Configuration Barebone 4G RAM 128G SSD 8G RAM 128G SSD 16G RAM 256G SSD 16G RAM 512G SSD 32G RAM 512G SSD

Quantity

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q30611X	S10/S20	Celeron 3855U	2	2	1.60Ghz	2M
Q30651X	S10/S20	Core i5 6200U	2	4	2.30Ghz	3M
Q30731X	S10/S20	Core i3 7100U	2	4	2.40Ghz	3M
Q30751X	S10/S20	Core i5 7200U	2	4	2.50Ghz	3M
Q30831X	S10/S20	Core i3 8130U	2	4	2.00Ghz	4M

Processor System
CPU	• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor • Intel 8th Kabylake-R-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × Realtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

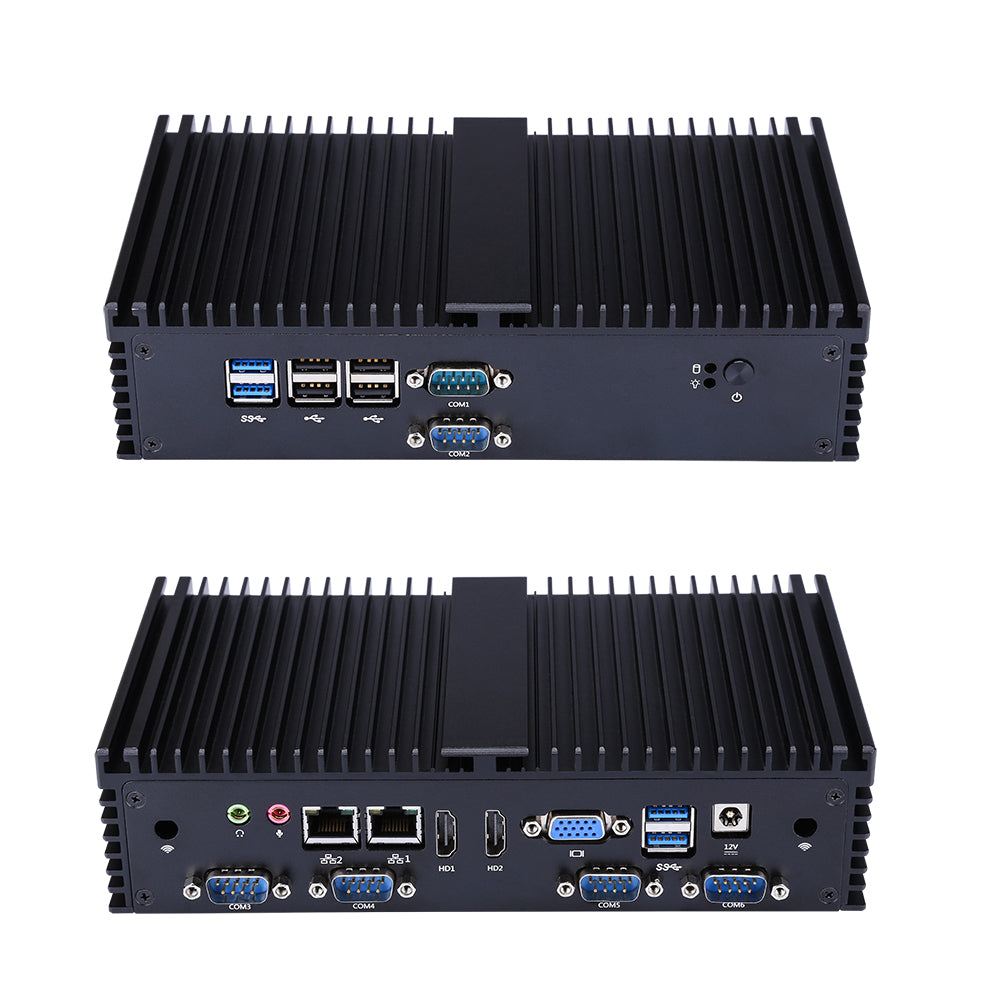

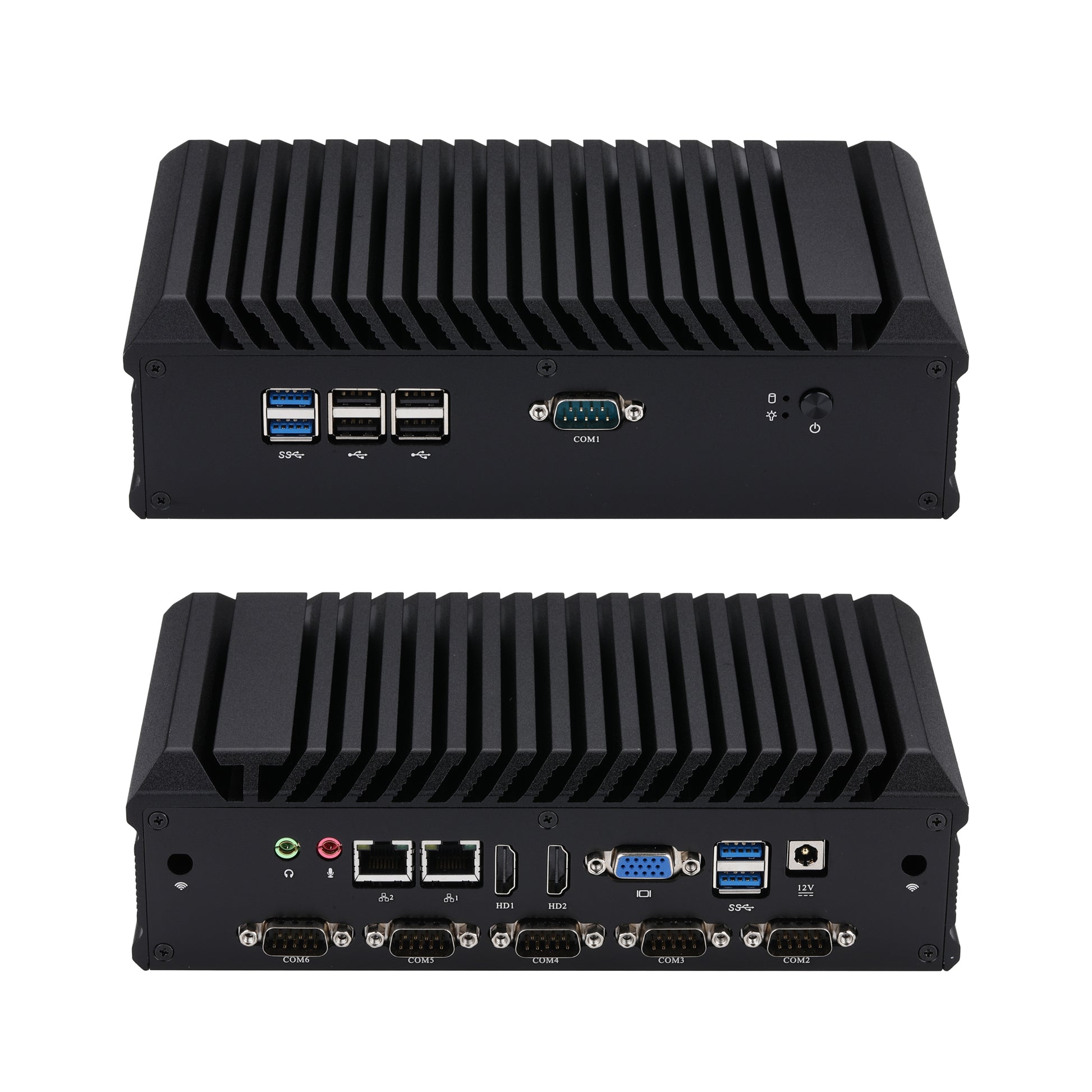

Front I/O
Power Button	1
LED	1 × Power LED, 1 × HDD LED
Serial Port	1 × RS-232
USB	2 × USB 3.0, 4 × USB 2.0

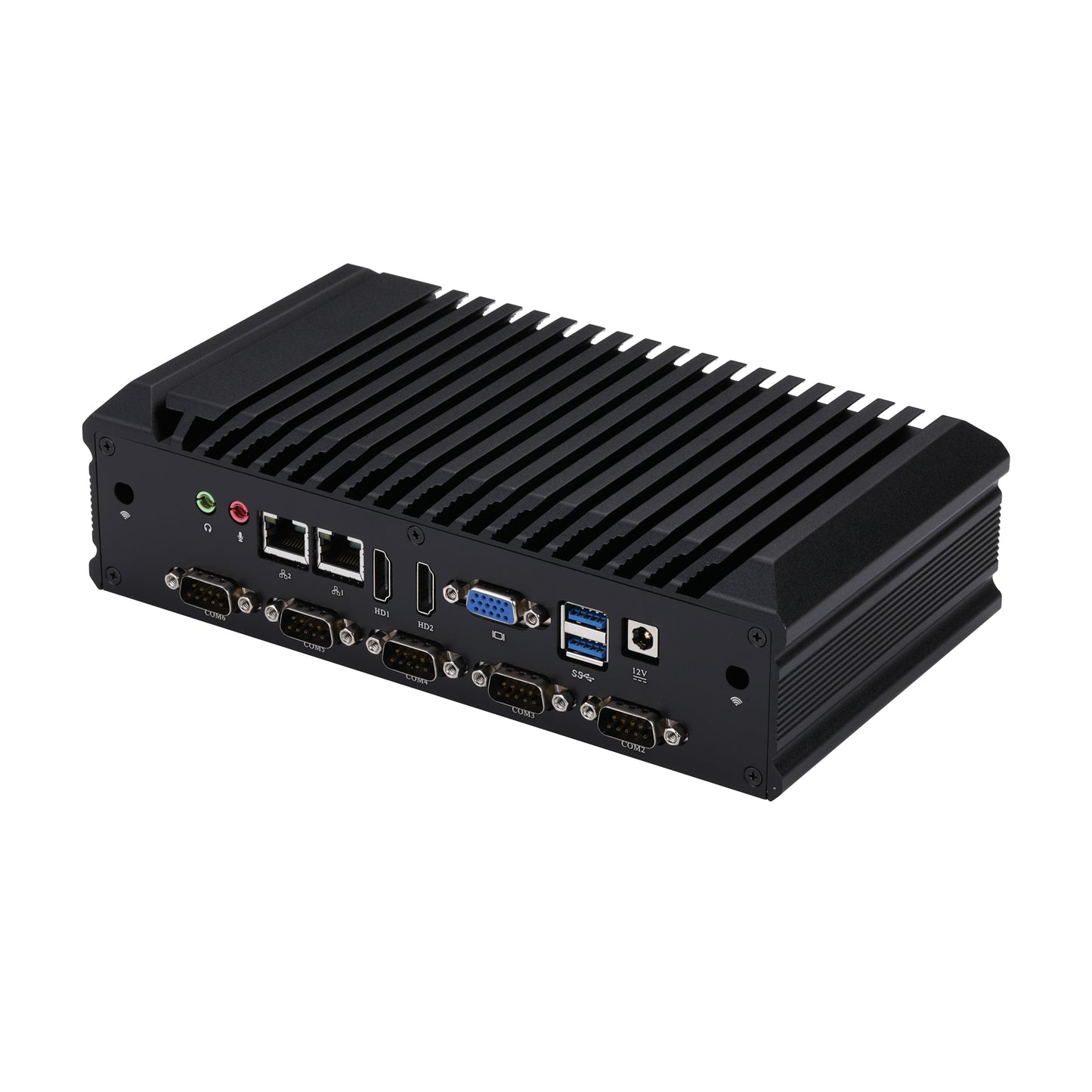

Rear I/O
Power	1 × DC Jack
Video Output	2 × HDMI, 1 × VGA
LAN	2 × Realtek Gigabit LAN
USB	2 × USB 3.0
Audio	1 × Mic-in, 1 × Line-out
Serial Port	5 × RS-232
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280)
Expansion
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.2	1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	2, COM3/4 can be set up as RS-485
Serial Port	COM3/COM4 support 5V/12V
Power Requirement
Power Adapter	12V4A, 5A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S10: 217 × 122 × 62mm S20: 221 × 121 × 62mm
Mounting	VESA Mounting Bracket
Kensington Lock	No
Cooling Mode	Fanless Design
OS Support, Drivers, Bios
OS	Windows 10, Linux Windows 7 (Only for 6th Gen Skylake)
Drivers	Visit
Bios	Visit
