Qotom

Qotom Multi COM Q30400P Series I3 I5 I7 Fanless Mini PC

$83.00 USD

~~$0.00 USD~~ $83.00 USD

Sale Sold out

Shipping calculated at checkout.

Q30400P S08 Series Q30411P 2955U Q30431P i3-4005U Q30451P i5-4200U Q30471P i7-4500U Q30531P i3-5005U Q30512P 3215U

Configuration Barebone 4G RAM 64G SSD 4G RAM 128G SSD 8G RAM 128G SSD 8G RAM 256G SSD 8G RAM 512G SSD

Quantity

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q30411P	S08	Celeron 2955U	2	2	1.40Ghz	2M
Q30431P	S08	Core i3 4005U	2	4	1.70Ghz	3M
Q30451P	S08	Core i5 4200U	2	4	1.60Ghz	3M
Q30471P	S08	Core i7 4500U	2	4	1.80Ghz	4M
Q30531P	S08	Core i3 5005U	2	4	2.20Ghz	3M
Q30512P	S08	Celeron 3215U	2	2	1.70Ghz	2M

Processor System
CPU	• Intel 4th Haswell –U/Y Processor • Intel 5th Broadwell-U Processor
CPU TDP	By CPU
Memory	1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × Realtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

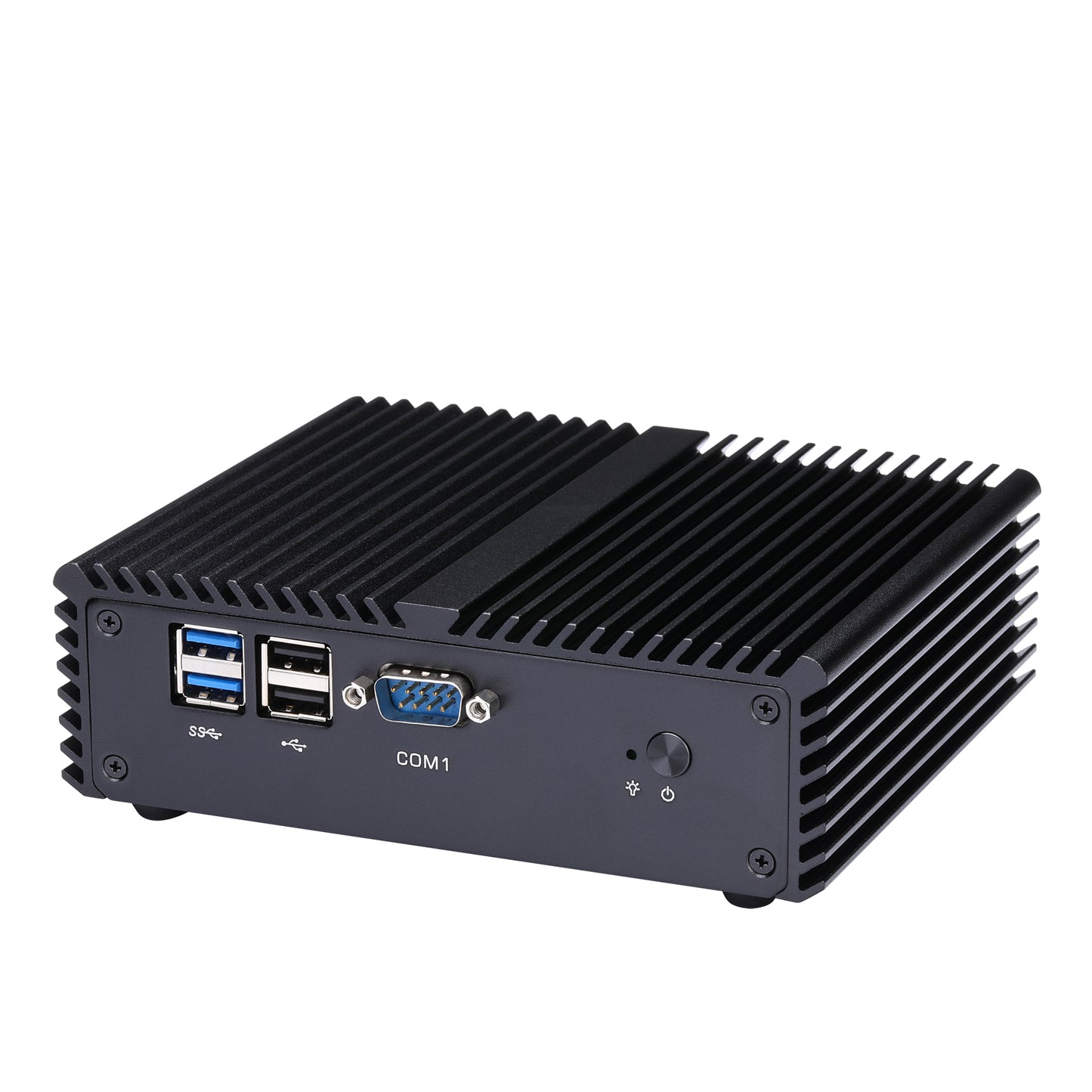

Front I/O
Power Button	1
LED	1 × Power LED
Serial Port	1 × RS-232
USB	2 × USB 3.0, 2 × USB 2.0

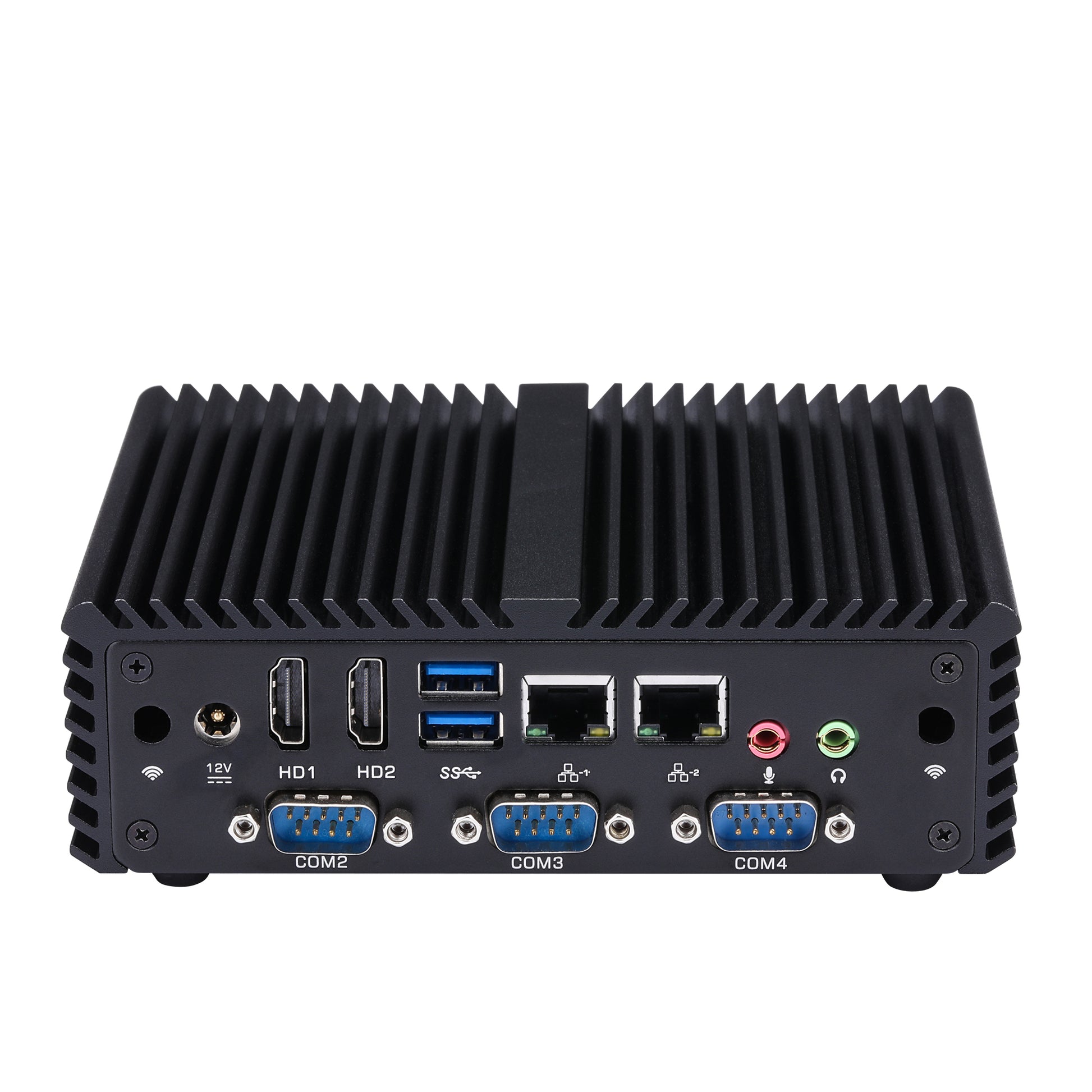

Rear I/O
Power	1 × DC Jack
Video Output	2 × HDMI
LAN	2 × Realtek Gigabit LAN
USB	2 × USB 3.0
Audio	1 × Mic-in, 1 × Line-out
Serial Port	3 × RS-232
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
mSATA	1 × Mini PCIe, Full-length for SSD
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	0
Power Requirement
Power Adapter	12V4A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	155 × 127 × 48mm
Mounting	VESA Mounting Bracket
Kensington Lock	No
Cooling Mode	Fanless Design
OS Support, Drivers, Bios
OS	Windows 7, Windows 8, Windows 10, Linux
Drivers	Visit
Bios	Visit
