Qotom Multi COM Mini PC Q30600P i3 i5 i7 Computer

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q515P	S02	3865U	2	2	1.80Ghz	2M
Q535P	S02	i3-7100U	2	4	2.40Ghz	3M
Q555P	S02	i5-7200U	2	4	2.50Ghz	3M
Q575P	S02	i7-7500U	2	4	2.70Ghz	4M

Processor System
CPU	• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G,2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × Realtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

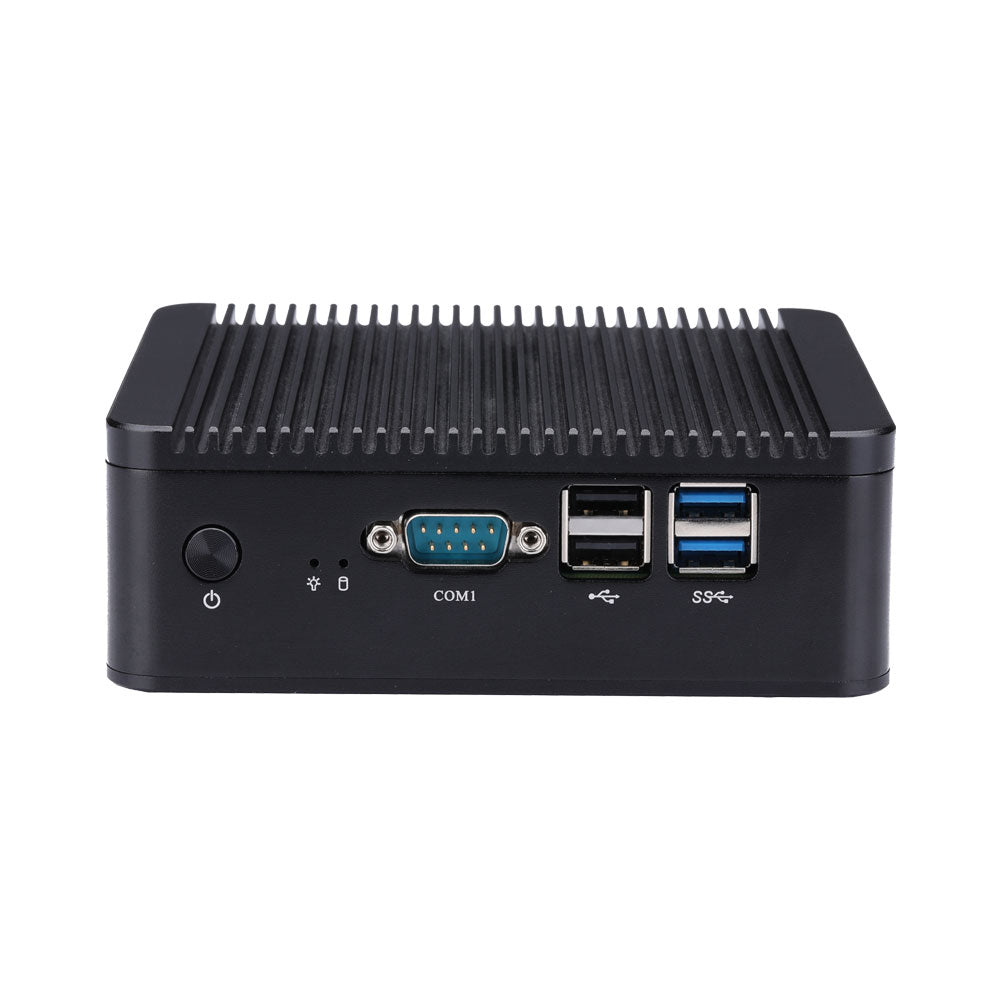

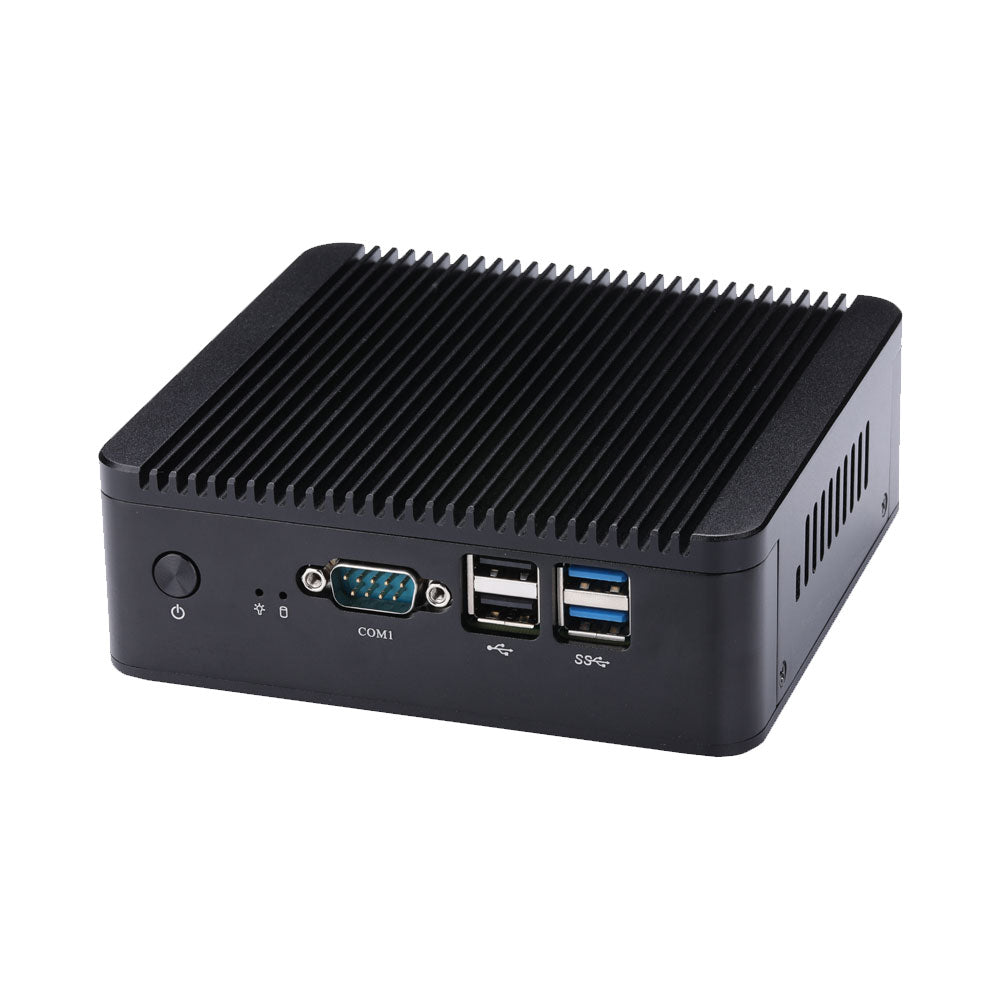

Front I/O
Power Button	1
LED	1 × Power LED, 1 × HDD LED
Serial Port	1 × RS-232 (COM1)
USB	2 × USB 3.0, 2 × USB 2.0
Audio	0

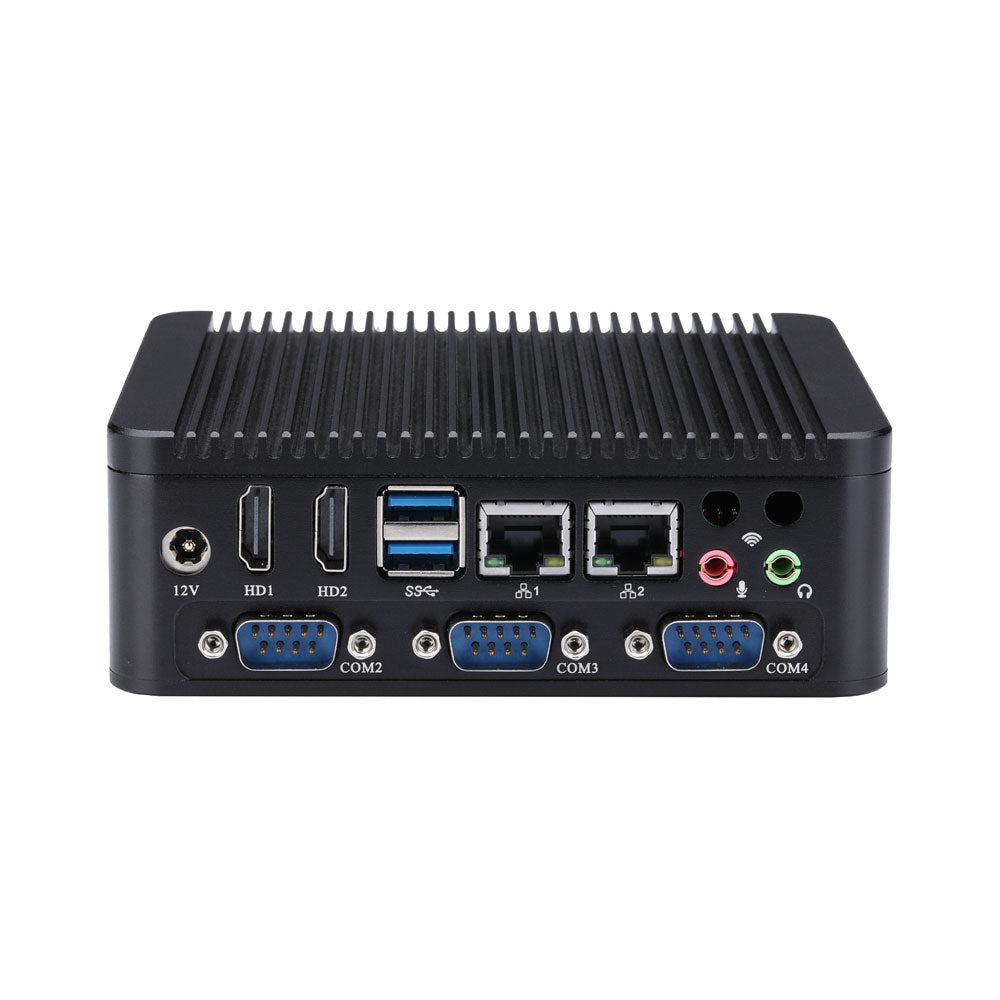

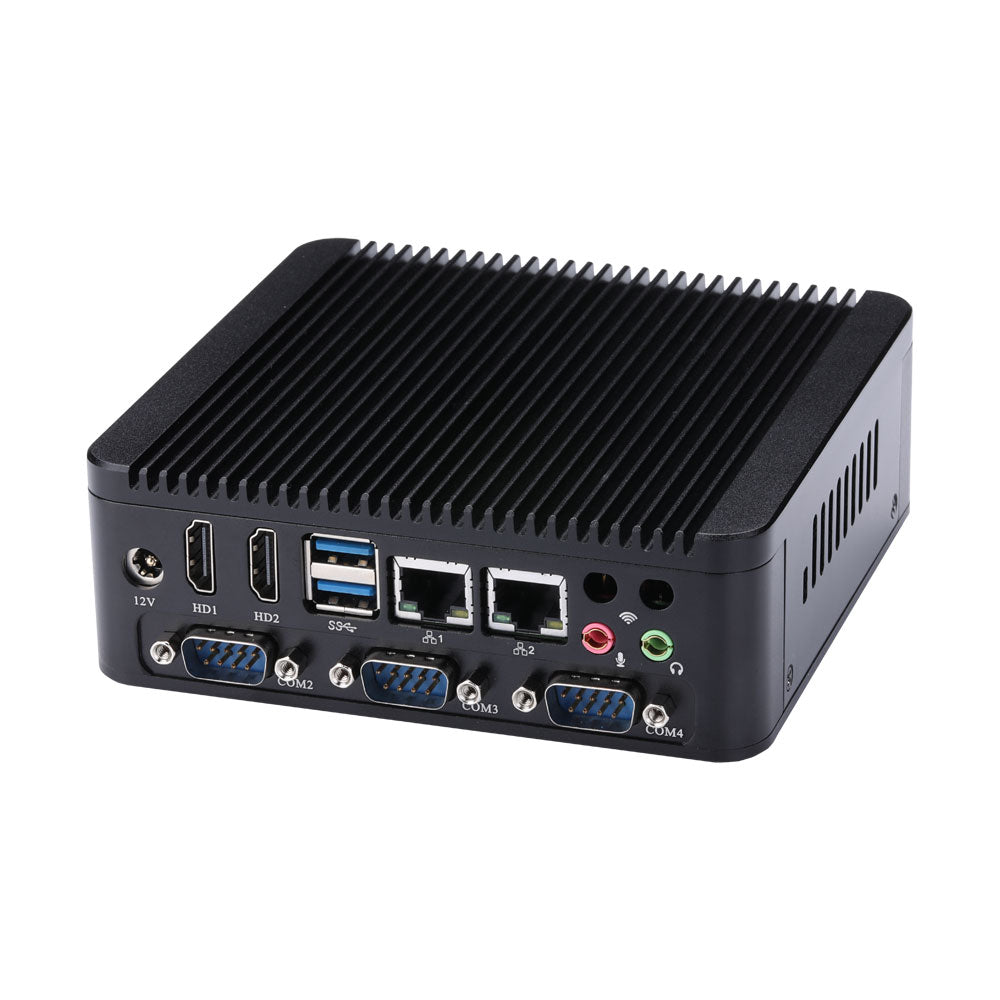

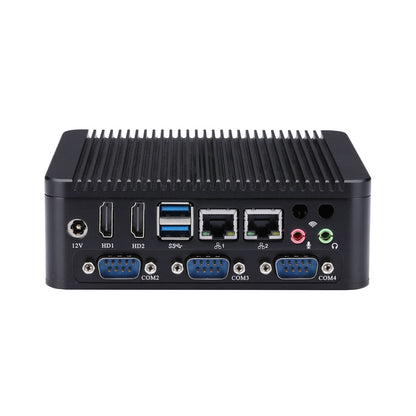

Rear I/O
Power	1 × DC Jack
Video Output	2 × HDMI
LAN	2 × Realtek Gigabit LAN
USB	2 × USB 3.0
Audio	1 × Mic-in, 1 × Line-out
Serial Port	3 × RS-232 (COM2, COM3, COM4)
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 Slot for SSD (M key, Type: 2280)
Expansion
M.2	1 × M.2 for SSD (M key, Type: 2280)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	0
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
VGA	0
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	0
Power Requirement
Power Adapter	12V4A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S02: 134 × 127 × 46mm
Mounting	VESA Mounting Bracket
Kensington Lock	Support
Cooling Mode	With Fan
OS Support, Drivers, Bios
OS	Windows 10, Linux Windows 7 (Only for 6th Gen Skylake)
Drivers	Visit
Bios	Visit
