Qotom Multi COM Mini PC Q10900X Series N100 i3 Computer

Qotom Multi COM Mini PC Q10900X Series N100 i3 Computer

$147.00 USD
$0.00 USD $147.00 USD
Sale Sold out
Shipping calculated at checkout.
Q10900X S04
Configuration

Urgent information!

Due to the extremely volatile cost of RAM and SSD (especially RAM), the default is to sell barebones systems. If you require a fully configured system, please contact me for a real-time quote. Thank you!



Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q10921X S04 N97 4 - 3.60Ghz 6M
Q10922X S04 N100 4 4 3.40Ghz 6M
Q10932X S04 N305 8 8 3.80Ghz 6M
Q11022X S04 N150 4 4 3.60Ghz 6M
Q11032X S04 N355 8 8 3.90Ghz 6M
Processor System
CPU Intel Alder Lake-N Processor
Intel Twin Lake-N Processor
CPU TDP By CPU
Memory 1 × DDR5 SO-DIMM Socket (Up to 48G)
Chipset By CPU
Graphics By CPU
Audio Realtek HD Audio
Watch Dog Yes

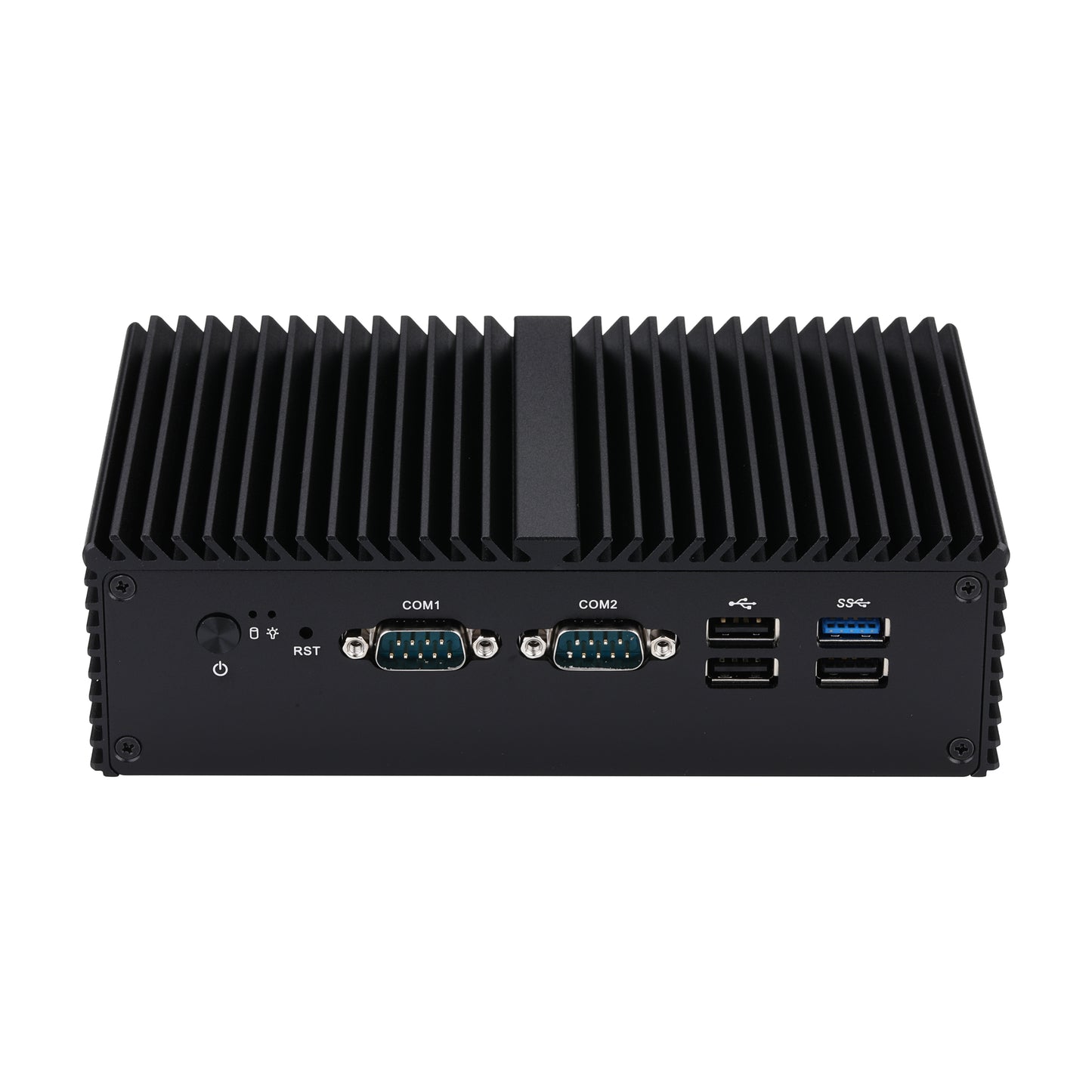

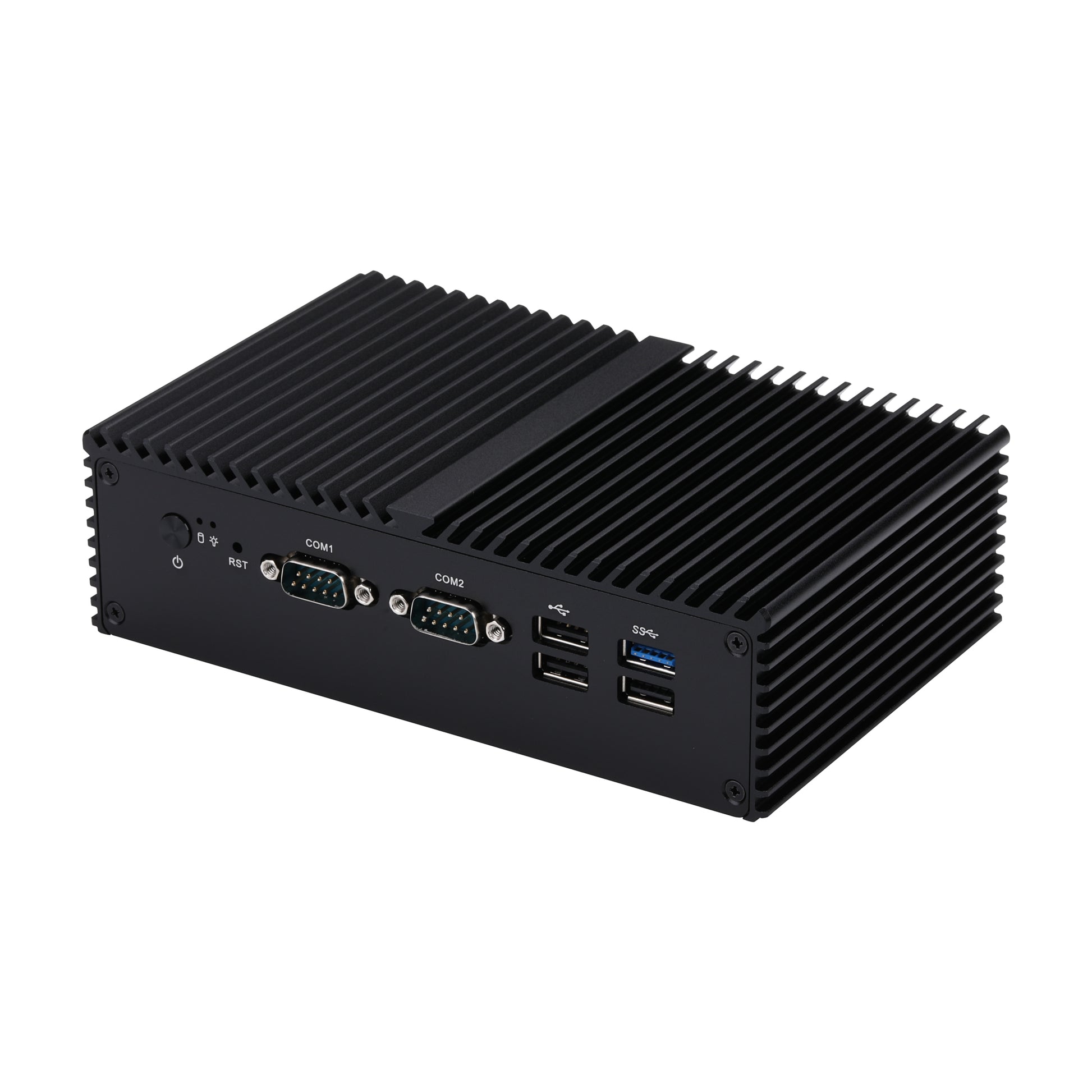

Front I/O
Power Button 1 × Power Button, 1 × Reset Button
LED 1 × Power LED, 1 × HDD LED
Serial Port 2 × RS-232 (COM1/2 can be set up as RS-485)
USB 3 × USB 2.0, 1 × USB 3.0

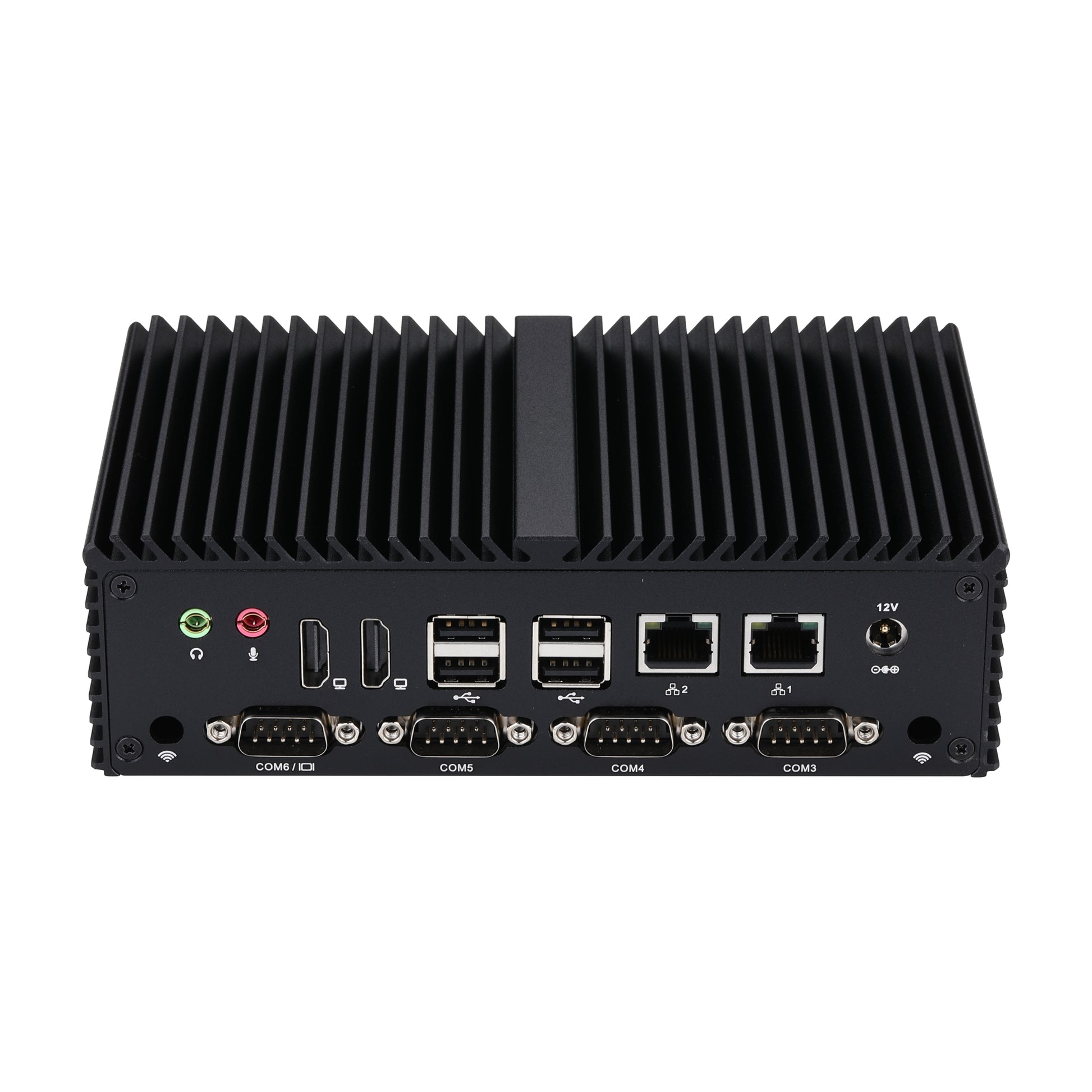

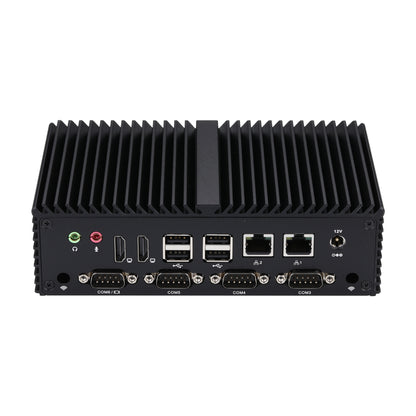

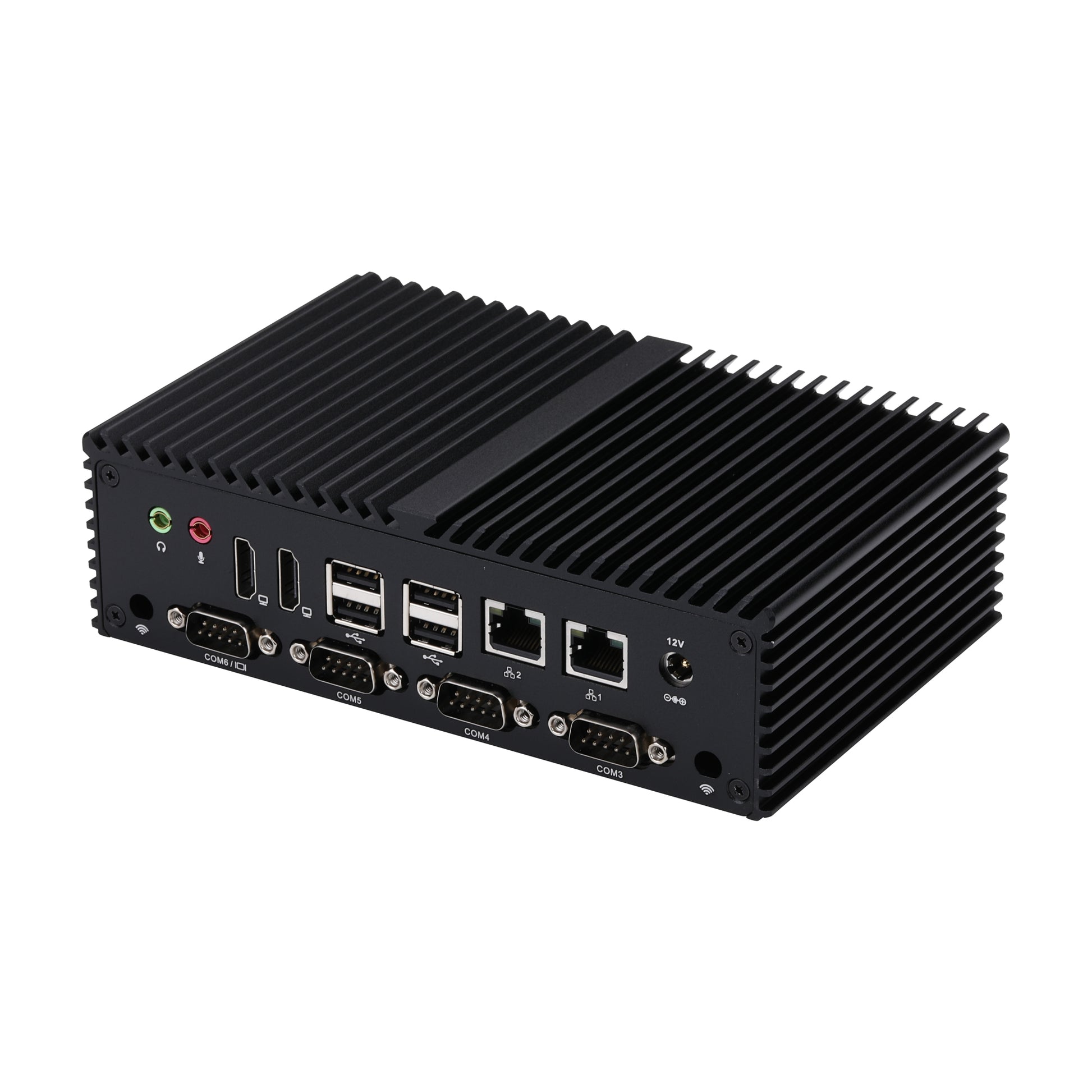

Rear I/O
Power 1 × DC Jack
LAN 2 × Realtek 2.5 Gigabit LAN
USB 4 × USB 2.0
Display 2 × HDMI
Serial Port 4 × RS-232
Audio 1 × Mic-in, 1 × Line-out
Storage
Type 1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)

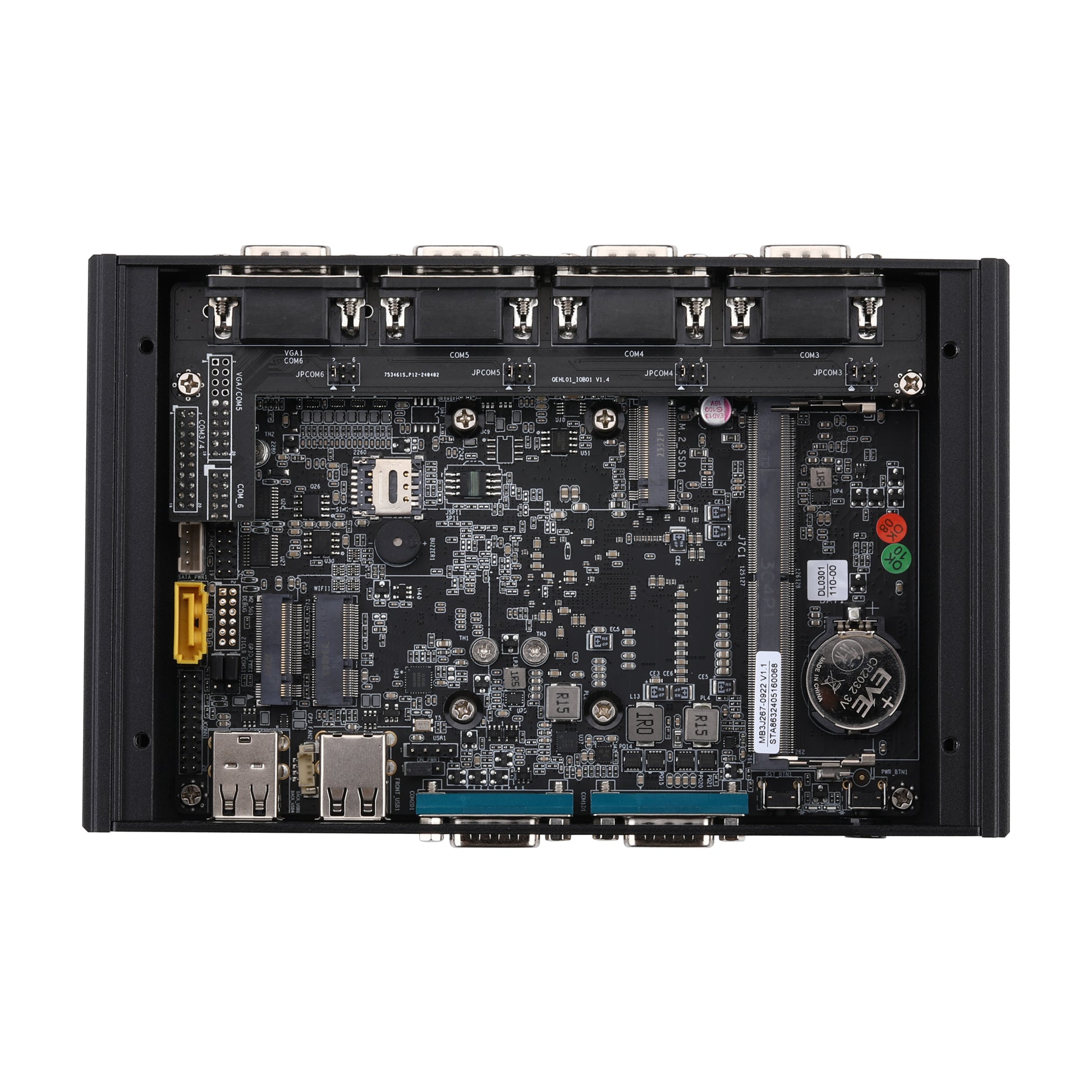

Expansion
M.2 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
M.2 1 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.2 1 × M.2 for Wi-Fi (E key, Type: 2230)
GPIO 1, 2 × 5Pin, Pitch 2.0mm
Power Header 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option)
SIM Card Slot 1
Clear CMOS Jumper Yes, 1 × 3Pin, Pitch 2.54mm
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.54mm
Front Panel Header 1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter 12V3A~12V5A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension S04: 178 × 111 × 52mm
Mounting VESA Mounting Bracket
Kensington Lock No
Cooling Mode Fanless Design
OS Support, Drivers, Bios
OS UEFI Windows 10, UEFI Linux
Drivers Visit
Bios Visit
