Qotom

Qotom Multi COM Mini PC Q10500P N4000 J4105 J4125 Linux

$99.00 USD

~~$0.00 USD~~ $99.00 USD

Sale Sold out

Shipping calculated at checkout.

Q10500P S08 Q720P N4000 Q730P J4105 Q750P J4125

Configuration Barebone 4G RAM 64G SSD 4G RAM 128G SSD 8G RAM 128G SSD 8G RAM 256G SSD 16G RAM 512G SSD

Quantity

Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Processor System
CPU	• Intel Gemini Lake Processor • Intel Gemini Lake-R Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × Realtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

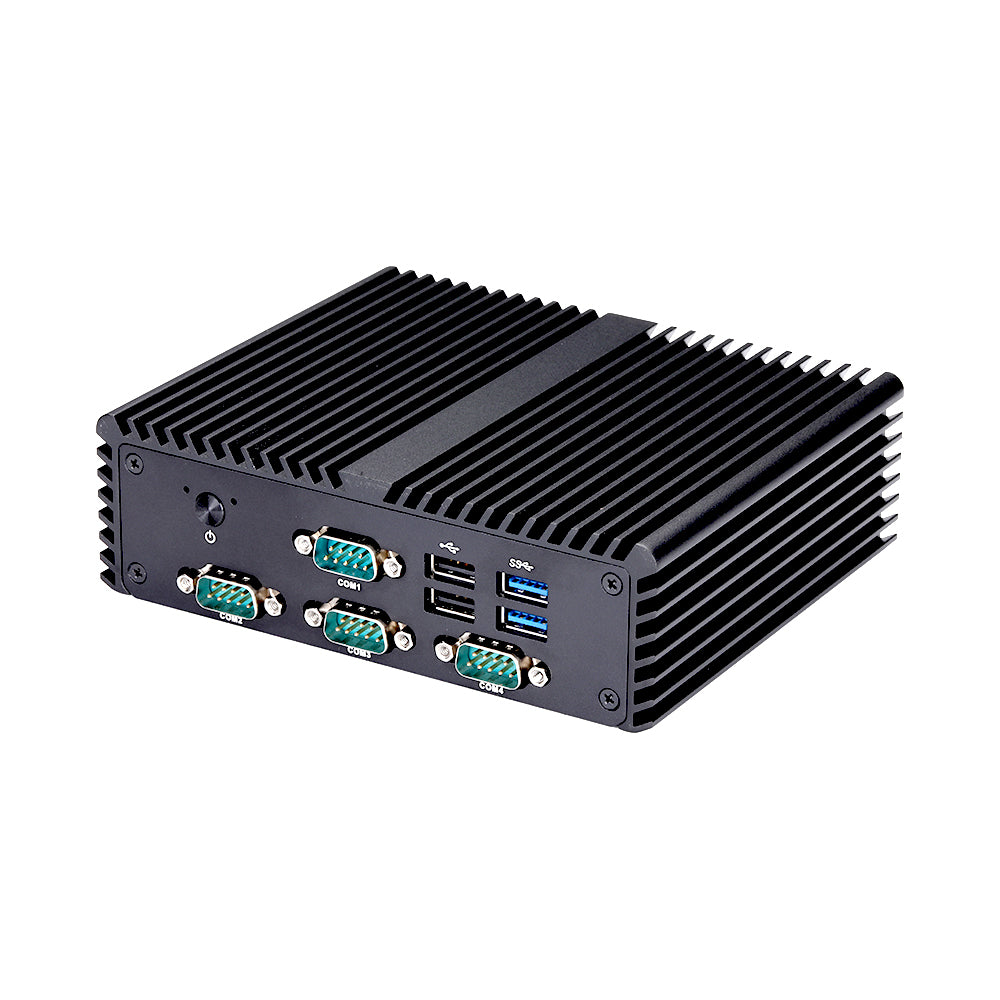

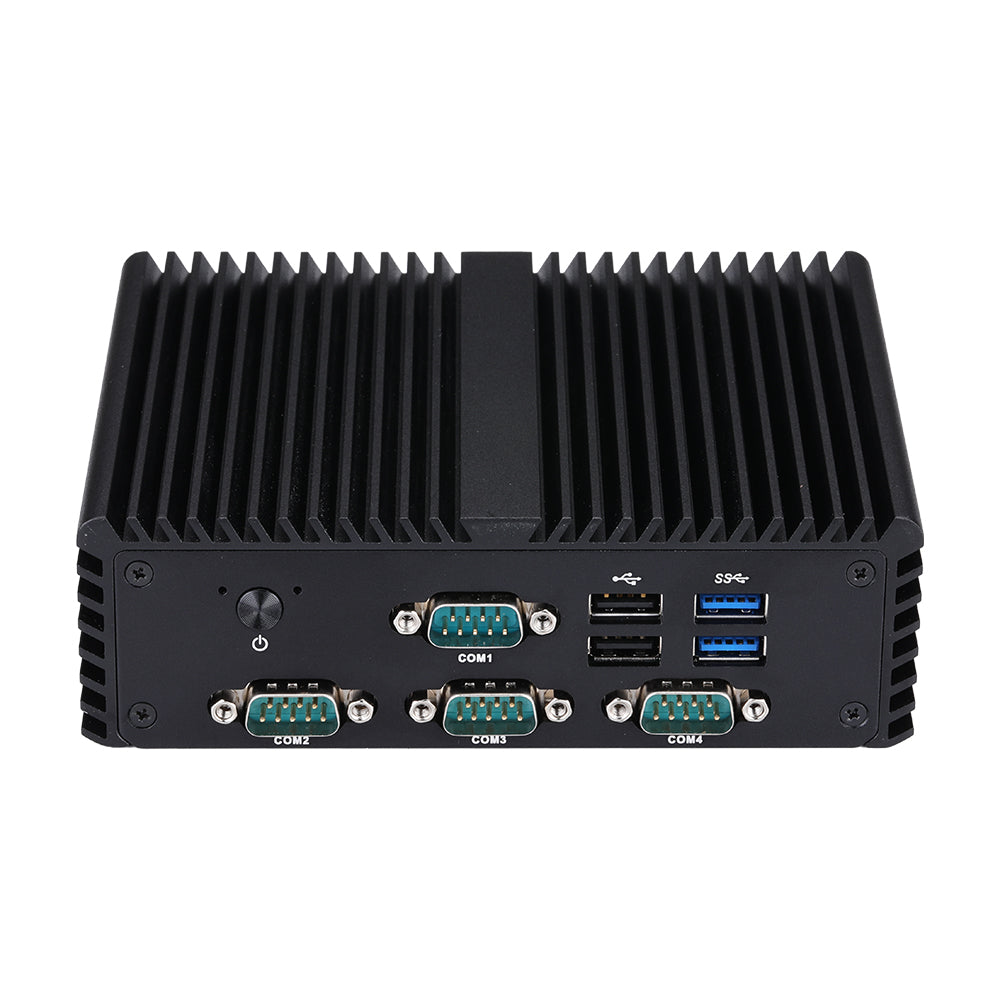

Front I/O
Power Button	1
LED	1 × Power LED, 1 × HDD LED
Serial Port	4 × RS-232 -COM3/4 can be set up as RS-485 -Pin 9 Factory Setting Supports 5V/12V)
USB	2 × USB2.0, 2 × USB3.0

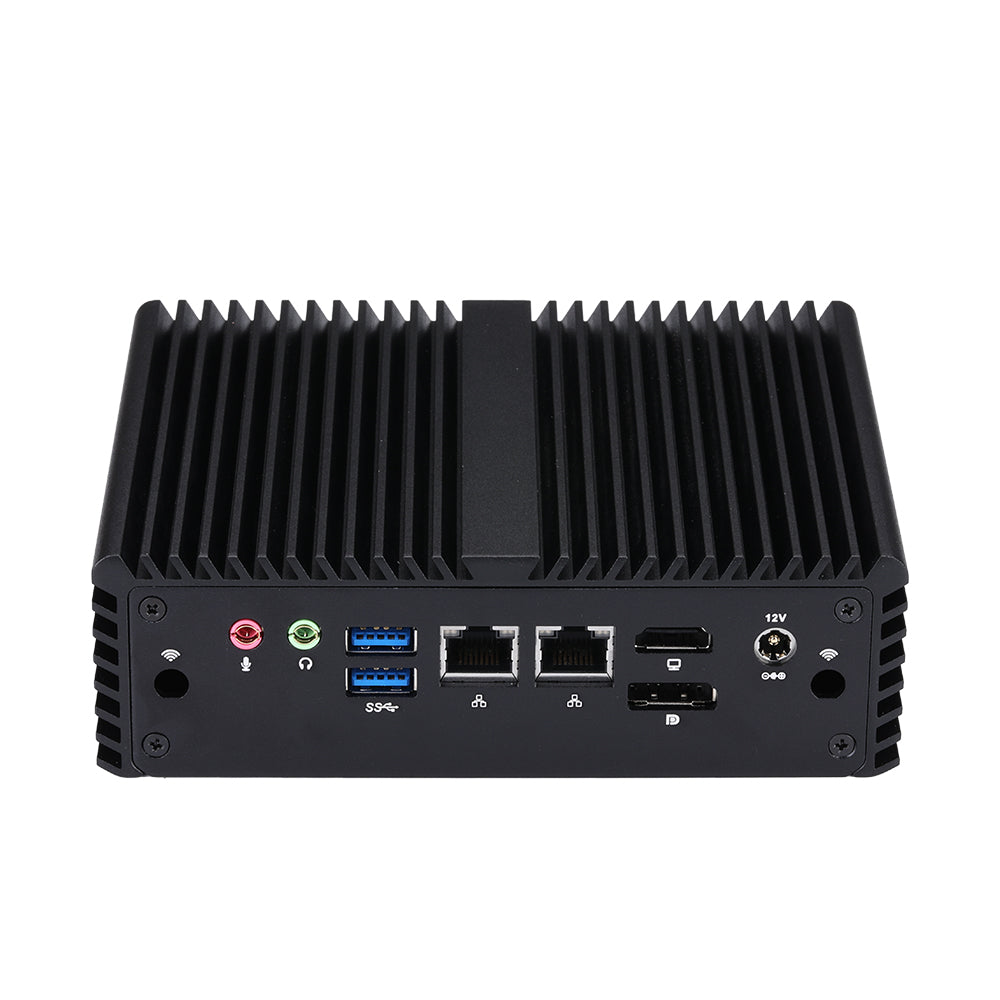

Rear I/O
Power	1 × DC Jack
Video Output	1 × HDMI, 1 × Display Port
USB	2 × USB 3.0
LAN	2 × Realtek Gigabit LAN
Audio	1 × Mic-in, 1 × Line-out
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
mSATA	1 × Full-length Mini PCIe for SSD
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter	12V3A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S08: 155 × 127 × 48mm
Mounting	S08: VESA bracket
Kensington Lock	No
Cooling Mode	Fanless Design
OS Support, Drivers, Bios
OS	Windows 10, Linux
Drivers	Visit
Bios	Visit
