Qotom Multi COM Fanless Mini PC Q30900P i3 i5 i7

Qotom Multi COM Fanless Mini PC Q30900P i3 i5 i7

$131.00 USD
$0.00 USD $131.00 USD
Sale Sold out
Shipping calculated at checkout.
Q30900P S08 Series
Configuration

Urgent information!

Due to the extremely volatile cost of RAM and SSD (especially RAM), the default is to sell barebones systems. If you require a fully configured system, please contact me for a real-time quote. Thank you!



Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q30912P S08 4305U 2 2 2.20Ghz 2M
Q30921P S08 5405U 2 4 2.30Ghz 2M
Q31011P S08 5205U 2 2 1.90Ghz 2M
Q31031P S08 i3-10110U 2 4 2.1Ghz 4M
Q31051P S08 i5-10210U 4 8 1.60Ghz 6M
Q31073P S08 i7-10710U 6 12 1.10Ghz 12M



Processor System
CPU • Intel 8th Whiskey Lake-U Processor
• Intel 8th Coffee Lake-U Processor
• Intel 10th Comet lake-U Processor
CPU TDP By CPU
Memory 1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
Chipset By CPU
Graphics By CPU
LAN Chipset 2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Watch Dog Yes

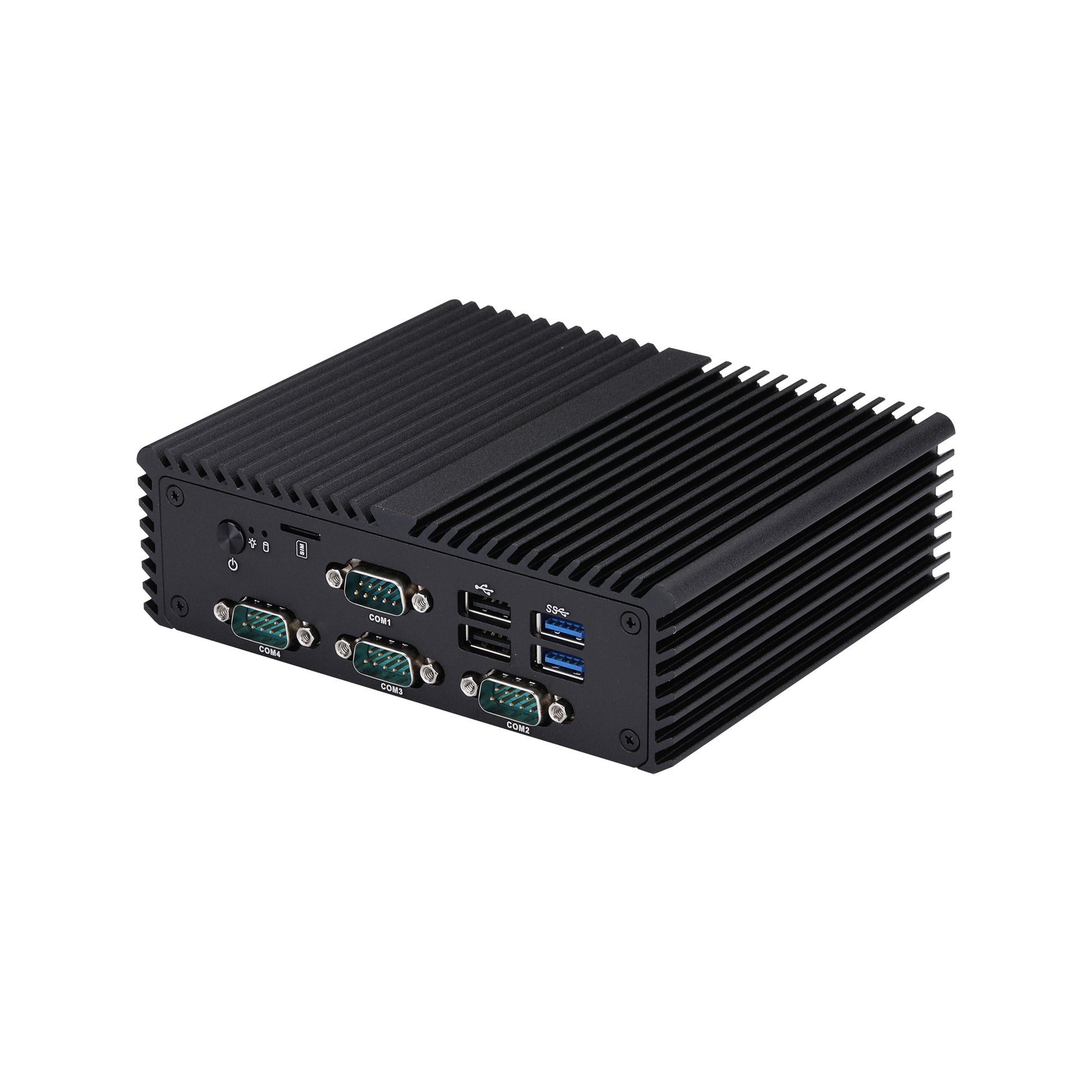

Front I/O
Power Button 1
LED 1 × Power LED, 1 × HDD LED
USB 2 × USB 3.0, 2 × USB 2.0
SIM Card Slot 1
Serial Port 4 × RS-232

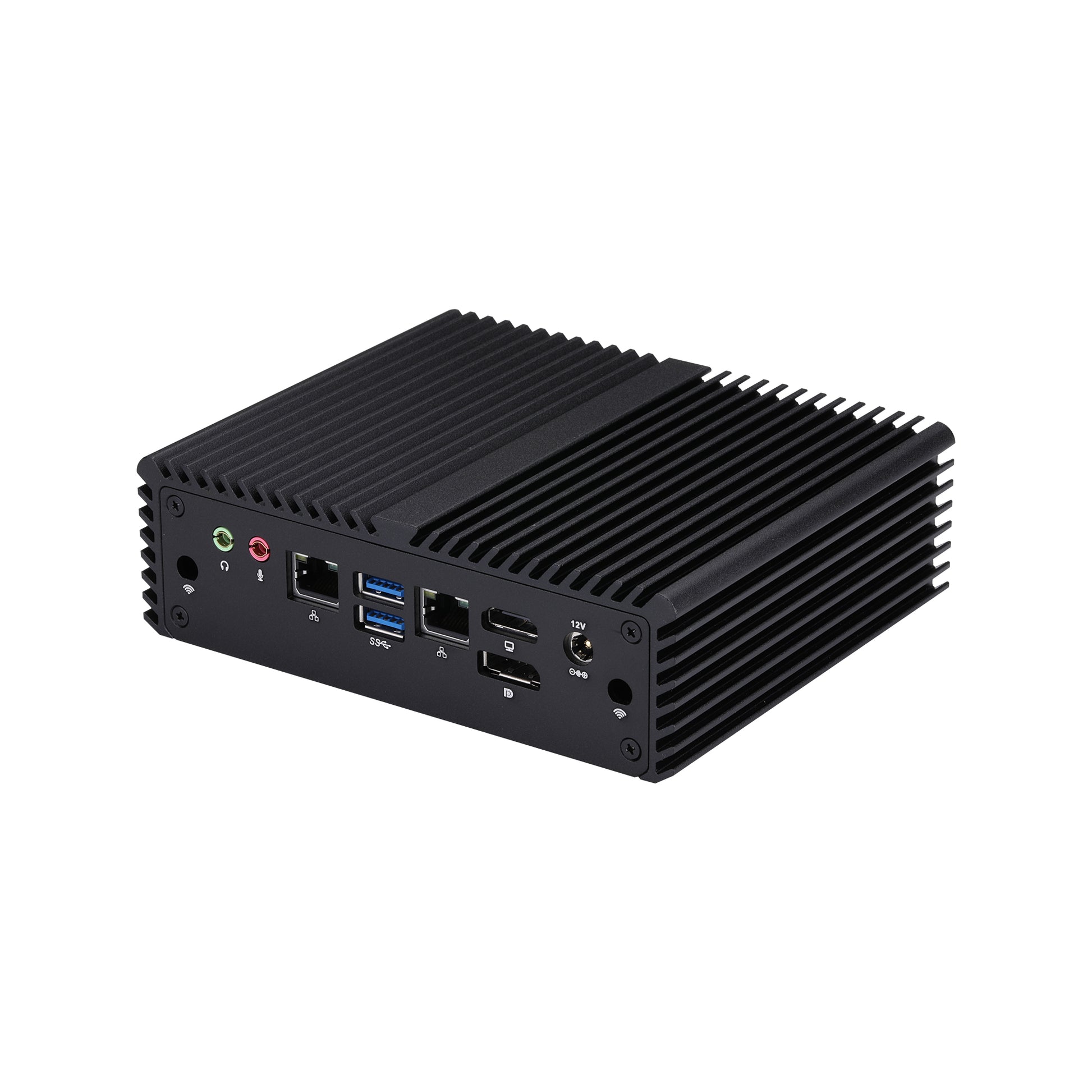

Rear I/O
Power 1 × DC Jack
Video Output 1 × Display Port, 1 × HDMI
LAN 2 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB 2 × USB 3.0
Audio 1 × Mic-in, 1 × Line-out
Storage
Type 1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280)
Expansion
M.2 1 × M.2 for 4G/5G (B key, Type: 3042/3052)
(4205U, 5405U, 5205U, 5305U don't support 5G)

1 × M.2 for SSD (M key, Type: 2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot 0
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper 1, 1 × 3Pin, Pitch 2.0mm
GPIO 1, 2 × 5Pin, Pitch 2.0mm
RS-485 0
DC-in 0
Power Requirement
Power Adapter 12V3A / 12V5A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension

155 × 127 × 48mm
Mounting VESA Mounting Bracket
Kensington Lock No
Cooling Mode Fanless Design
OS Support, Drivers, Bios
OS Windows 10, Linux
Drivers Visit
Bios Visit
