Qotom Multi COM Fanless Mini PC Q300X Series I3 I5 I7

Qotom Multi COM Fanless Mini PC Q300X Series I3 I5 I7

$139.00 USD
$0.00 USD $139.00 USD
Sale Sold out
Shipping calculated at checkout.
Q300X S05 Series
Configuration

 To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q301P S05 Celeron 2955U 2 2 1.40Ghz 2M
Q330P S05 Core i3 4005U 2 4 1.70Ghz 3M
Q350P S05 Core i5 4200U 2 4 1.60Ghz 3M
Q350PY S05 Core i5 4200Y 2 4 1.40Ghz 3M
Q370P S05 Core i7 4500U 2 4 1.80Ghz 4M
Q335P S05 Core i3 5005U 2 4 2.20Ghz 3M
Q355P S05 Core i5 5200U 2 4 2.40Ghz 4M
Processor System
CPU • Intel 4th Haswell –U/Y Processor
• Intel 5th Broadwell-U Processor
CPU TDP By CPU
Memory 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)
Chipset By CPU
Graphics By CPU
LAN Chipset 2 × Intel I211-AT/I210-AT Gigabit LAN
Audio Realtek HD Audio
Watch Dog Yes

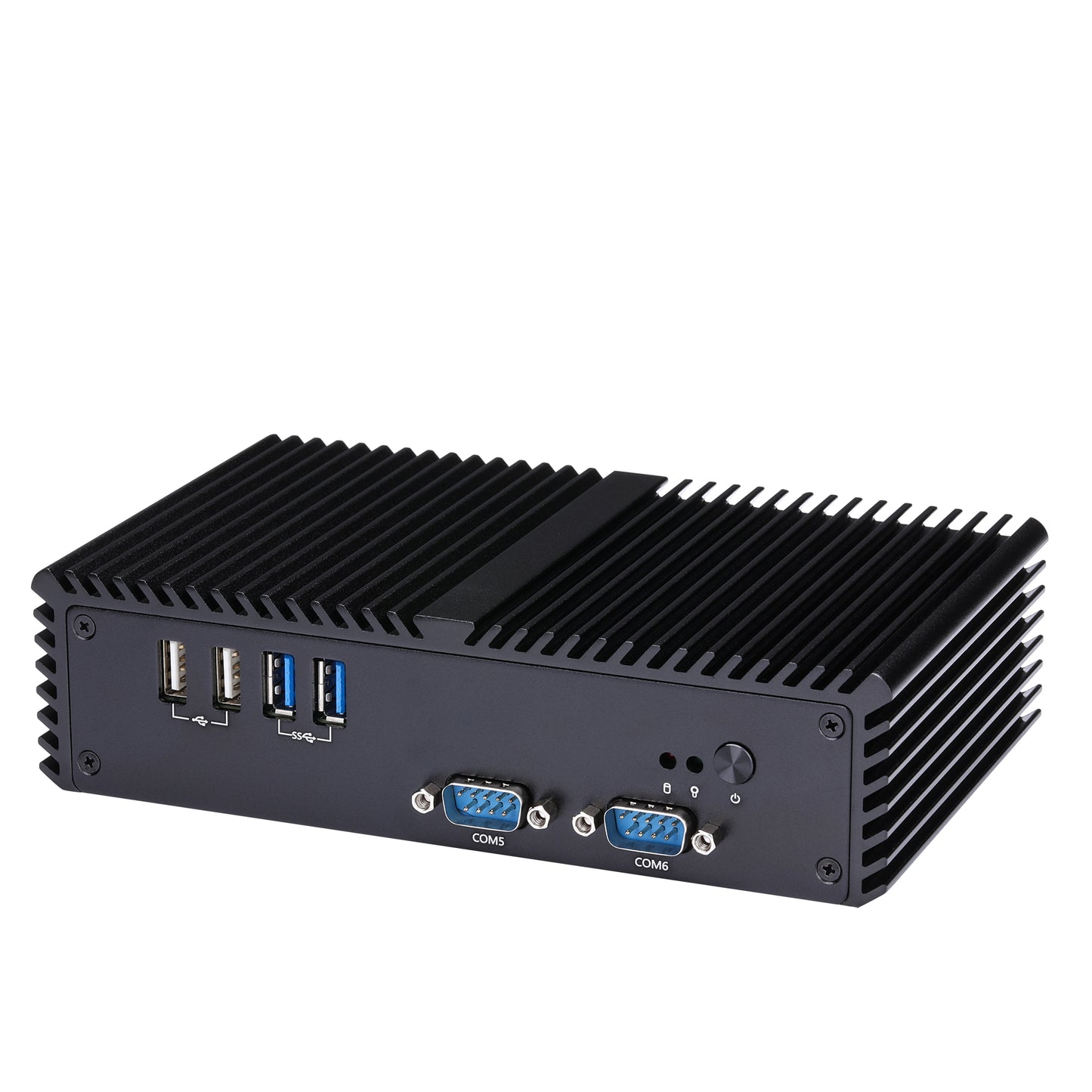

Front I/O
Power Button 1
LED 1 × Power LED, 1 × HDD LED
Serial Port 2 × RS-232 (COM5, COM6)
USB 2 × USB 3.0, 2 × USB 2.0

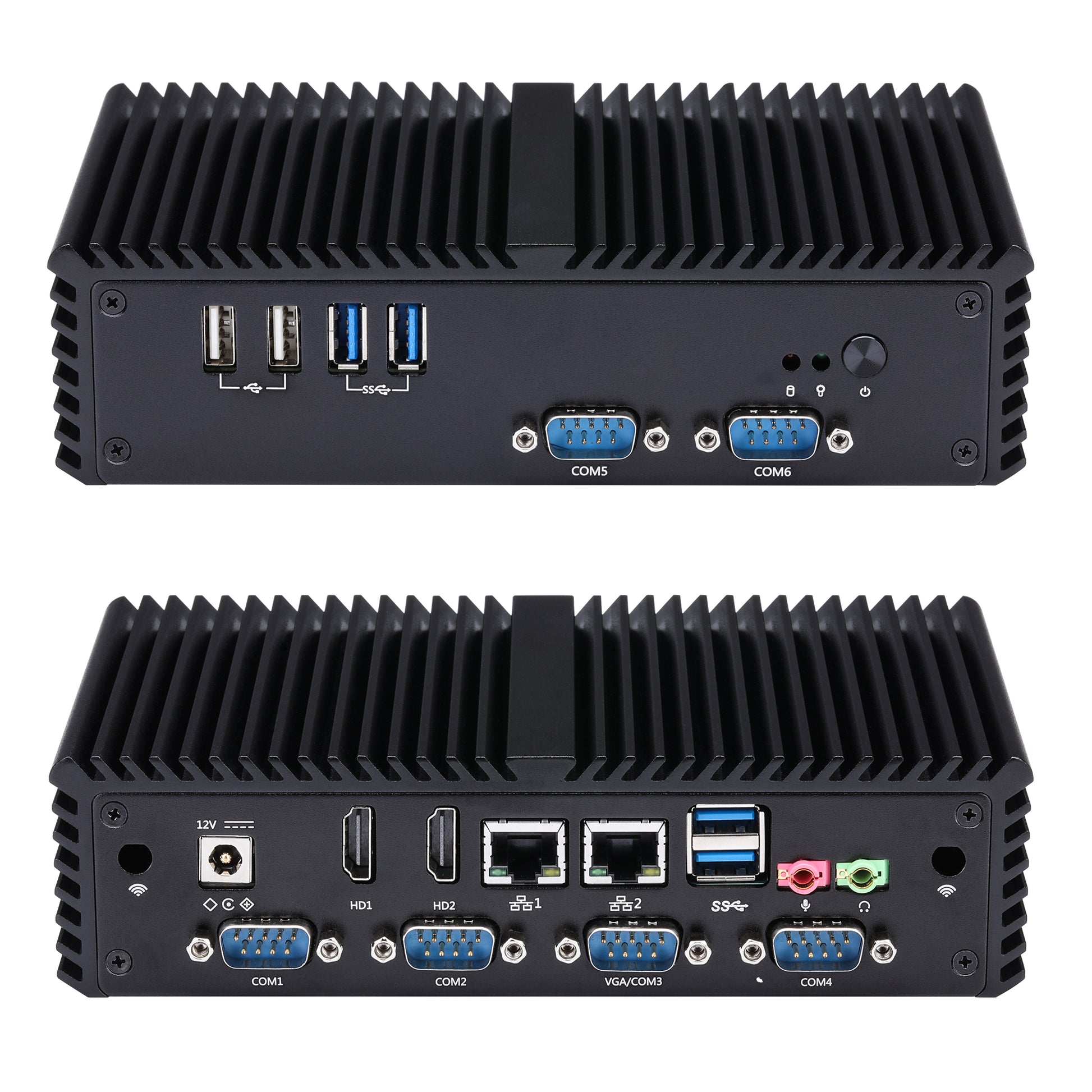

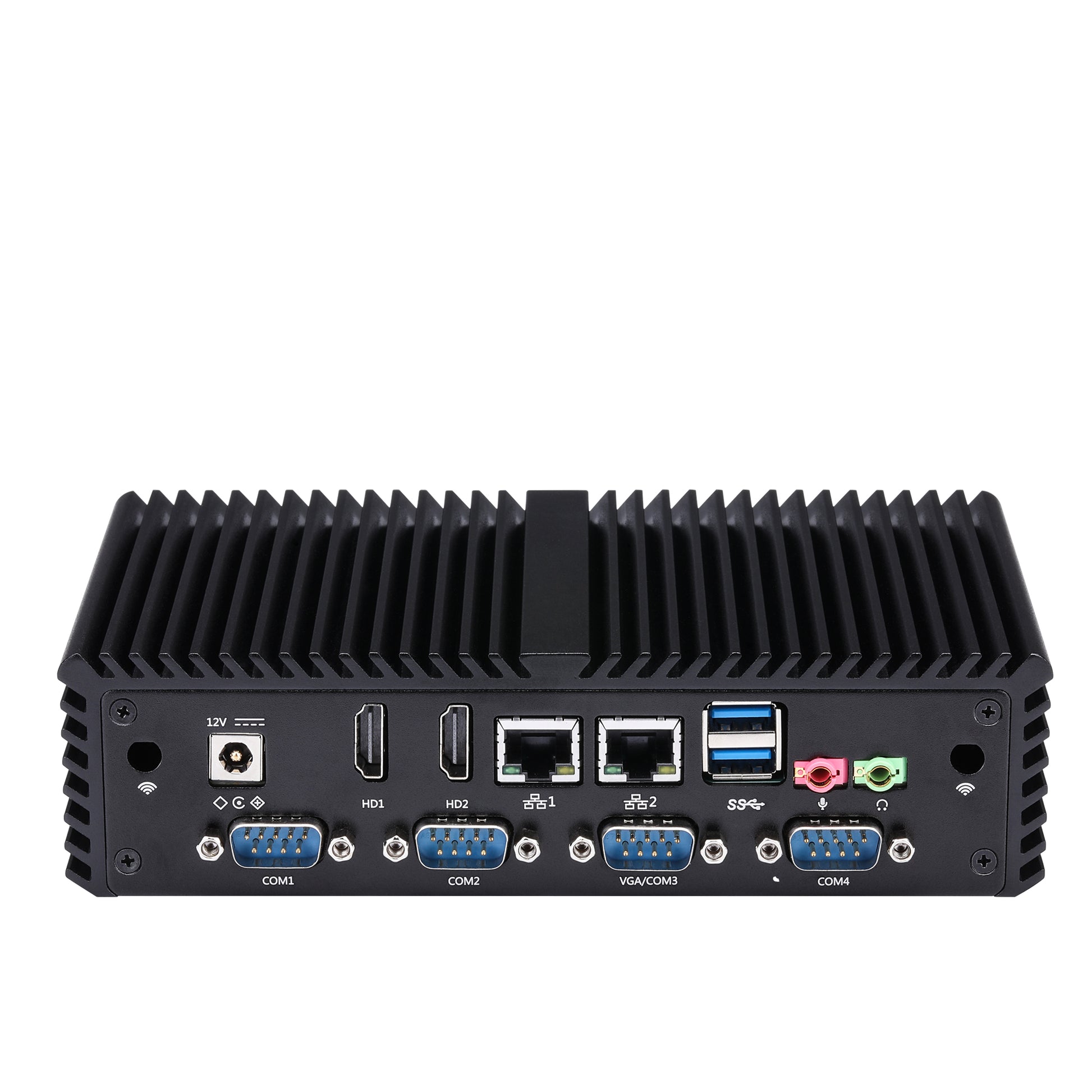

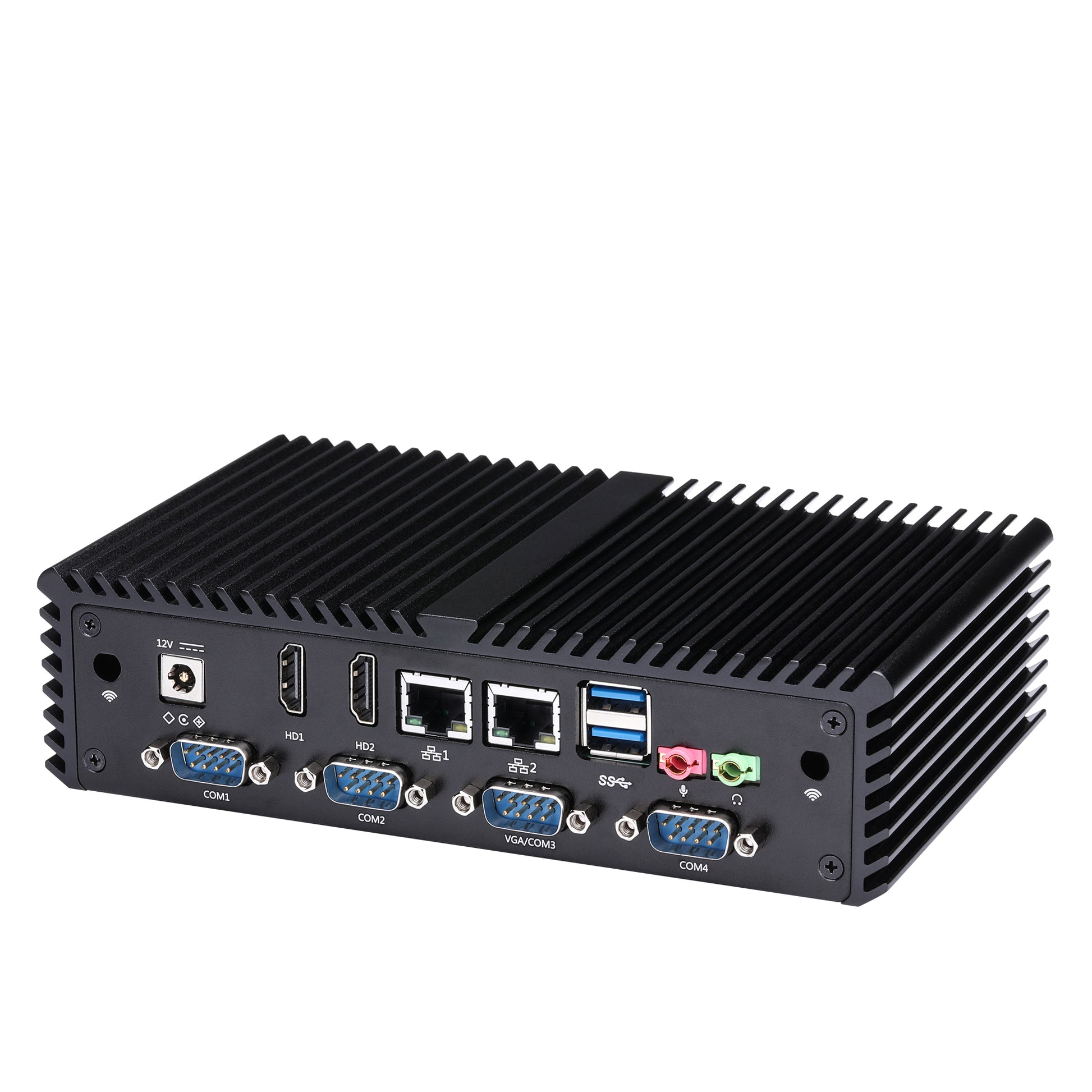

Rear I/O
Power 1 × DC Jack
Video Output 2 × HDMI
LAN 2 × Intel I211-AT/I210-AT Gigabit LAN
USB 2 × USB 3.0
Audio 1 × Mic-in, 1 × Line-out
Serial Port 4 × RS-232 (COM1, COM2, COM3, COM4)
Storage
Type 1 × 2.5-inch HDD/SSD
1 × Mini PCIe for mSATA SSD
Expansion
mSATA 1 × Full Length Mini PCIe for SSD
Mini PCIe 1 × Mini PCIe
Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot 1
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.54mm
VGA 1, 2 × 5Pin, Pitch 2.0mm
GPIO 1, 2 × 5Pin, Pitch 2.0mm
RS-485 COM2 can be set up as RS-485 (Factory
Setting)
VGA COM3 can be set up as VGA (Factory
Setting)
CMOS Clear Jumper Yes, 1 × 3Pin, Pitch 2.0mm
Power Requirement
Power Adapter 12V4A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension 187 × 111 × 49mm
Mounting VESA Mounting Bracket
Kensington Lock No
Cooling Mode Fanless Design
OS Support, Drivers, Bios
OS Windows 7, Windows 8, Windows 10, Linux
Drivers Visit
Bios Visit
