Qotom

Qotom Multi COM Desktop PC Q71200X with 12th 13th CPU i3 i5

Qotom Multi COM Desktop PC Q71200X with 12th 13th CPU i3 i5

$225.00 USD
$0.00 USD $225.00 USD
Sale Sold out
Shipping calculated at checkout.
Q71200X
Configuration

Urgent information!

Due to the extremely volatile cost of RAM and SSD (especially RAM), the default is to sell barebones systems. If you require a fully configured system, please contact me for a real-time quote. Thank you!



Dear all clients, especially from European and American, to avoid misunderstandings, please read the "Instructions Before Purchase" carefully, we don't accept any return or refund requests due to customs duties. Please be aware of this before purchasing. Thank you for your understanding.

Instructions before purchase
1. Import Duties & VAT & other fees (If Any) should be paid by buyer.
2. Shipping way: DHL, UPS, FedEx
3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.
5. Preinstall Ubuntu by default (except barebone device).
6. Pre-set up the function of automatic start after power connected.
7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com
Model Case CPU #of Cores #of Threads Base Frequency Cache
Q71211X S15 G6900 2 2 3.40GHz 4M
Q71221X S15 G7400 2 4 3.70Ghz 6M
Q71231X S15 i3-12100 4 8 3.30Ghz 12M
Q71251X S15 i5-12400 6 12 2.50Ghz 18M
Q71331X S15 i3-13100 4 8 3.40Ghz 12M
Q71351X S15 i5-13400 10 16 2.50Ghz 20M

Processor System
CPU • Intel 12th Alder lake -S Processor
• Intel 13th Raptor Lake-S Processor
CPU TDP By CPU
Memory 2 × DDR4 SO-DIMM Socket (Up to 64G)
Chipset Intel H610
Graphics By CPU
LAN Chipset 2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Audio Realtek HD Audio
Watch Dog Yes

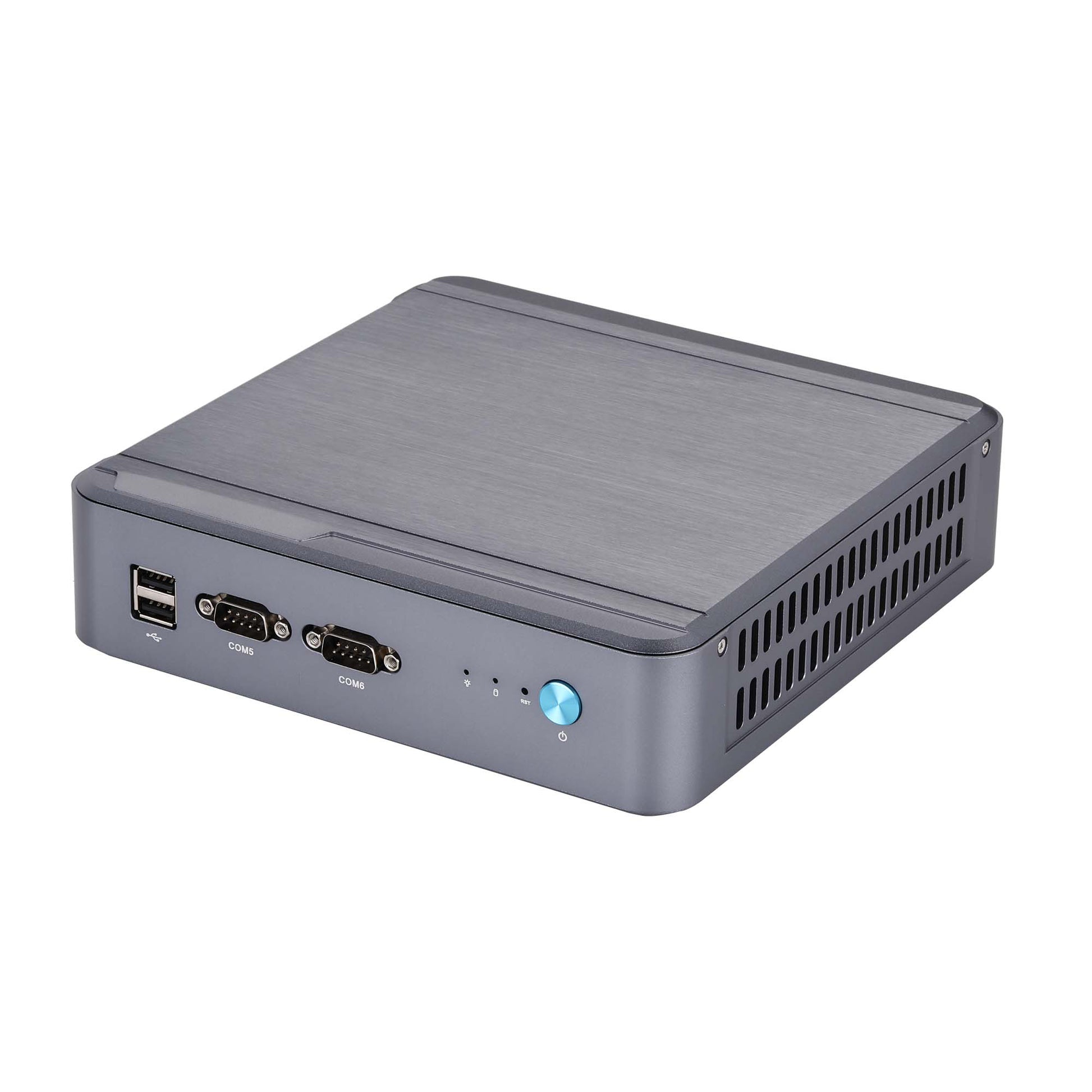

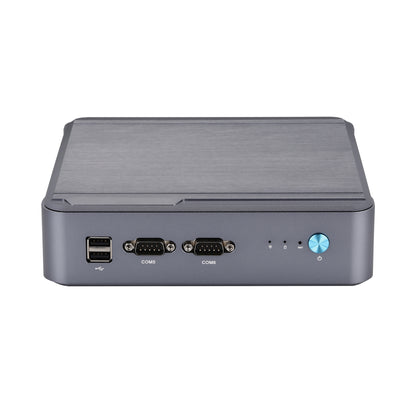

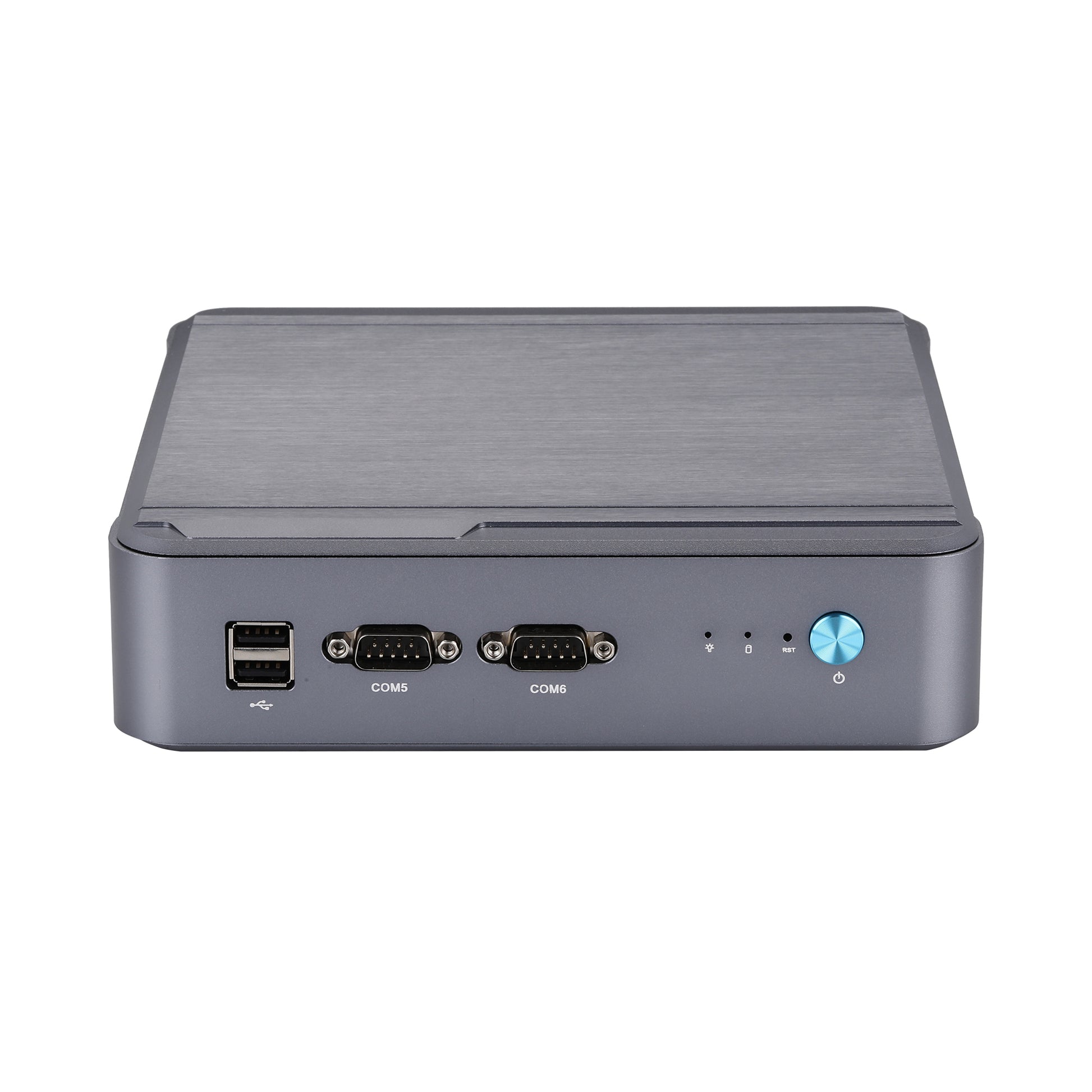

Front I/O
Power Button 1 × Power Button, 1 × Reset Button
LED 1 × Power LED, 1 × HDD LED
Serial Port 2 × RS-232
USB 2 × USB 2.0

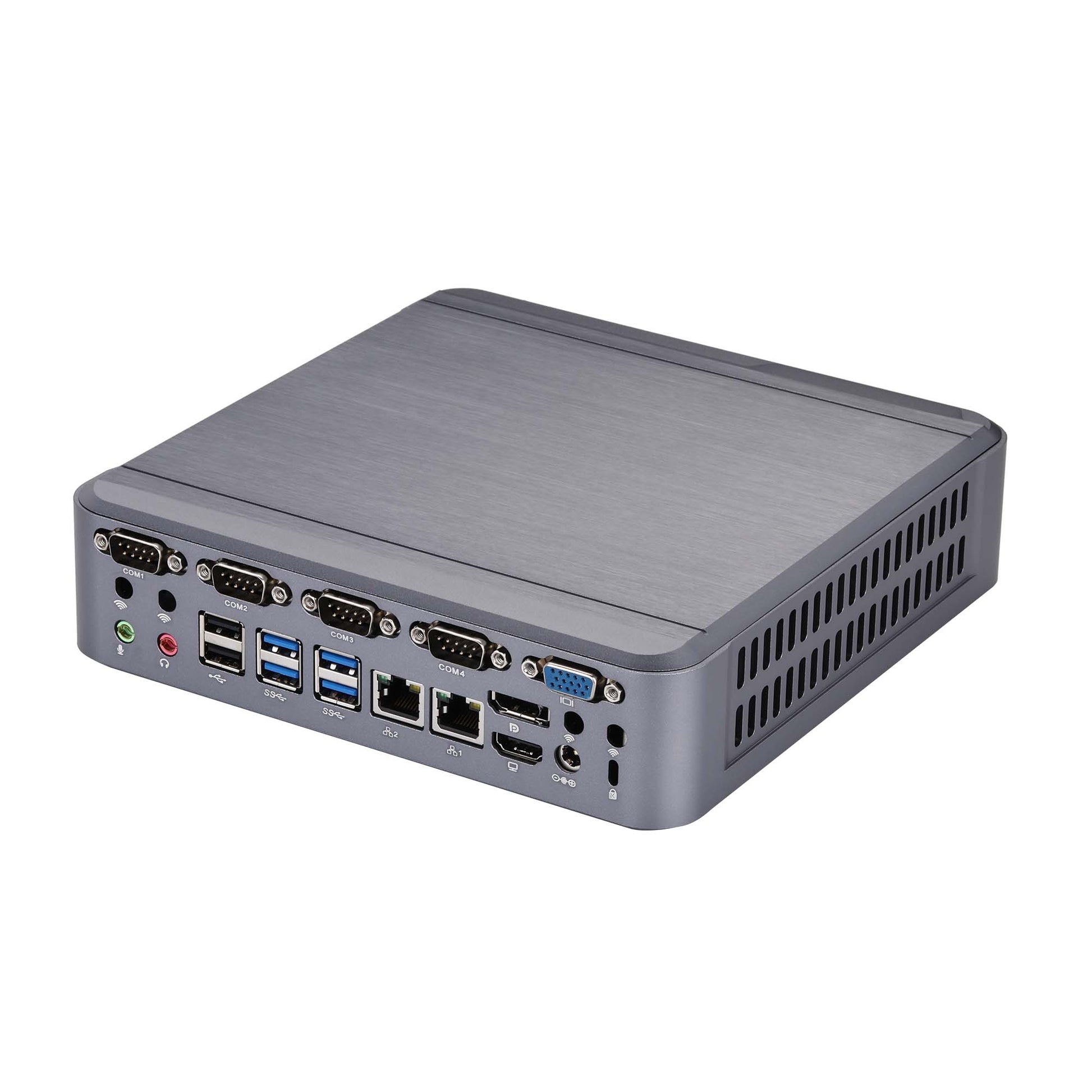

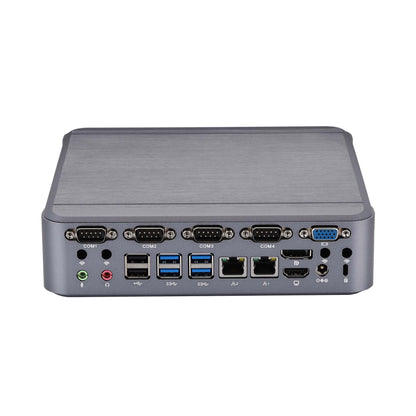

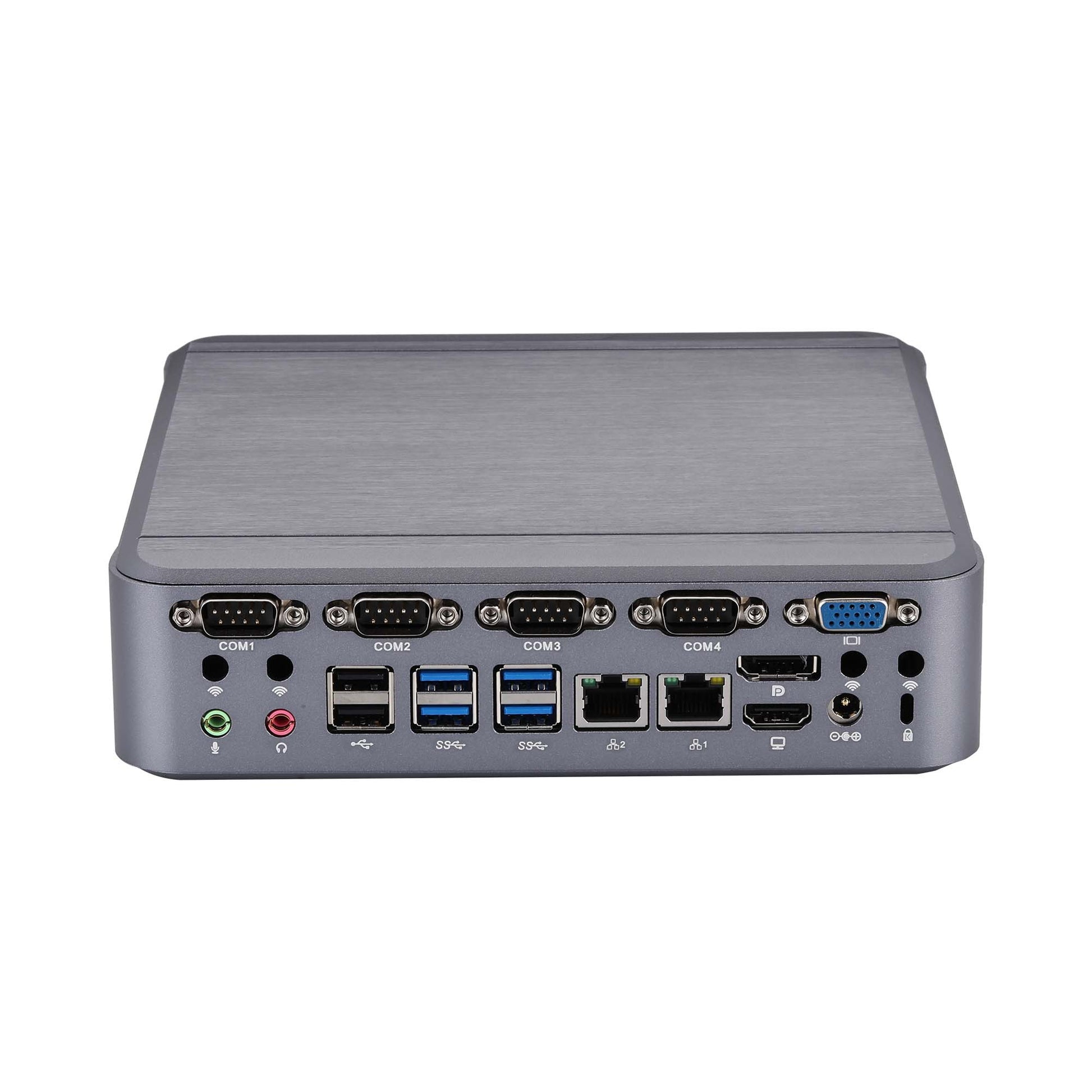

Rear I/O
Power 1 × DC Jack
Video Output 1 × Display Port, 1 × HDMI, 1 × VGA
LAN 2 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB 4 × USB 3.0, 2 × USB 2.0
Audio 1 × Mic-in, 1 × Line-out
Serial Port 4 × RS-232
Storage
Type 1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
Expansion
M.2 1 × M.2 for SSD (M key, Type: 2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
1 × M.2 for 4G/5G (B key, Type: 3042/3052)
5G Defaults to PCIe Mode,
USB 3.0 Mode Requires Customization
SIM Card Slot 1
AutoStart Jumper Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper Yes, 1 × 3Pin, Pitch 2.0mm
GPIO 1, 2 × 5Pin, Pitch 2.0mm
RS-485 2 × RS-232 (COM3/4 can be set up as RS-
422/RS-485)
Serial Port COM1-COM6 Support 5V/12V
Power Requirement
Power Adapter 19V4.74A (Power cord is included)
DC Jack 5.5mm, 2.5mm
Environmental
Operating Temp 0°C~50°C
Non-Operating Temp -20°C~80°C
Humidity 10%~90%
Mechanical
Material Aluminium Alloy
Dimension S15: 200 × 200 × 53mm
Weight 1.6kg
Mounting VESA Mounting Bracket
Packaging Dimension 285 × 260 × 120mm
Kensington Lock Yes
Cooling Mode Fan
OS Support, Drivers, Bios
OS UEFI Windows 10, UEFI Linux
Drivers Visit
Bios Visit
