Qotom

Qotom i3 i5 Multi LAN Router PC Q800GE 1U Rack 8 Ethernet

$161.00 USD

~~$0.00 USD~~ $161.00 USD

Sale Sold out

Shipping calculated at checkout.

Q800GE Q818GE 3867U Q838GE i3-8130U Q858GE i5-8250U

Chassis S10 1U Rack

Configuration Barebone 4G RAM 64G SSD 4G RAM 128G SSD 8G RAM 128G SSD 8G RAM 256G SSD 16G RAM 512G SSD 32G RAM 512G SSD

Quantity

To avoid misunderstandings, please read the "Instructions Before Purchase" carefully, especially the 1st point, thanks.

Instructions before purchase

1. Import Duties & VAT & other fees (If Any) should be paid by buyer.

2. Shipping way: DHL, UPS, FedEx

3. Place of dispatch: Shenzhen, China

4. Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).

If you need to add your LOGO or don't need the Qotom logo, pls contact me within 2 hours after placing the order.

5. Preinstall Ubuntu by default (except barebone device).

6. Pre-set up the function of automatic start after power connected.

7. If you require an Invoice (PDF file) or have other questions, pls email to sally@qotom.com

Model	Case	CPU	#of Cores	#of Threads	Base Frequency	Cache
Q818GE	S20/1U	3867U	2	2	1.80Ghz	2M
Q838GE	S20/1U	I3-8130U	2	4	2.00Ghz	4M
Q858GE	S20/1U	I5-8250U	4	8	1.60Ghz	6M

Processor System
CPU	• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor • Intel 8th Kabylake-R-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	8 × Intel I211-AT/I210-AT Gigabit LAN
Watch Dog	Yes

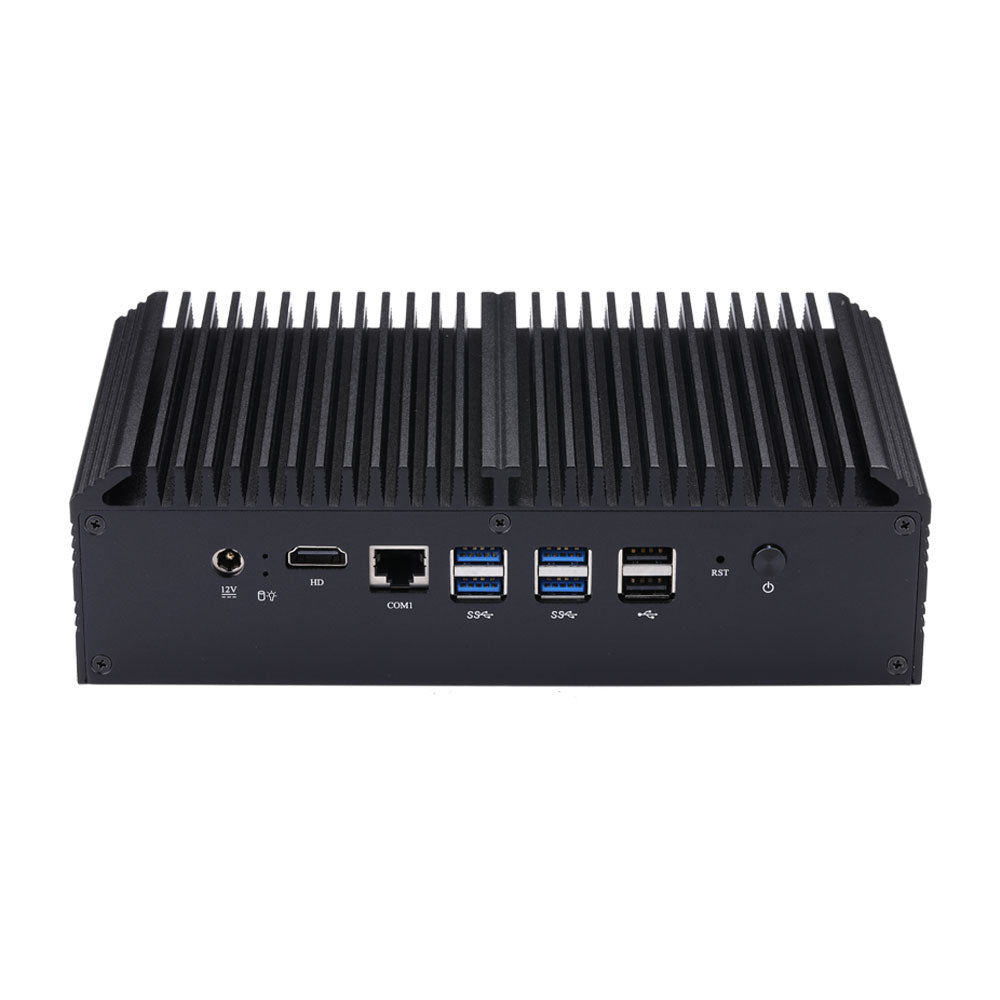

Front I/O
Power Button	1
Reset Button	1
LED	1 × Power LED, 1 × HDD LED
USB	4 × USB 3.0, 2 × USB 2.0
Power	1 × DC Jack
Video Output	1 × HDMI
Serial Port	1 × RS-232 Port (RJ-45)

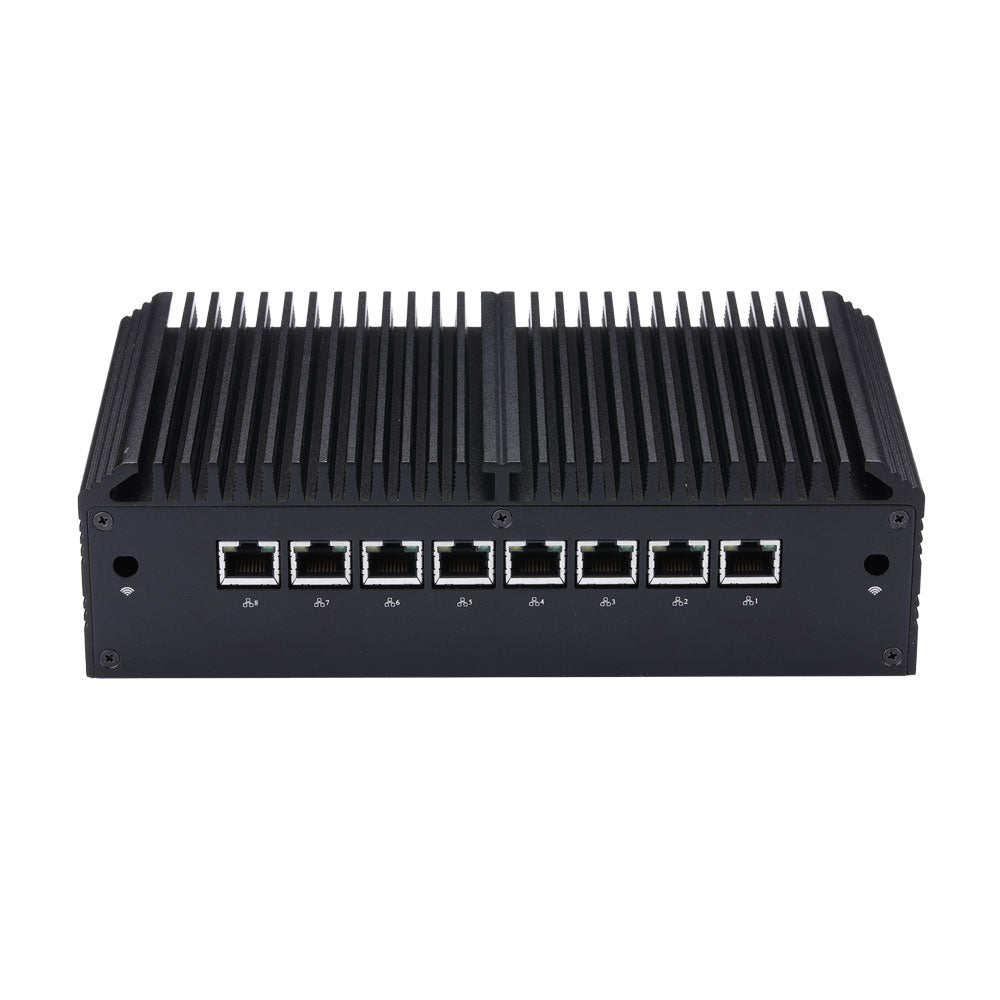

Rear I/O
LAN	8 × I211-AT/I210-AT Gigabit LAN
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe	1 × Mini PCIe (Only Support USB Device) Full-length for 4G Half-length for Wi-Fi
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
RS-485	0
GPIO	1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter	12V3A / 12V5A (Power cord is included)
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	S20: 221 × 121 × 62mm 1U Rack: 440 x 113 x 44mm
Mounting	S20: VESA bracket 1U Rack: Ear bracket
Kensington Lock	No
Cooling Mode	Fan (1U Rack) Fanless (S20)
OS Support, Drivers, Bios
OS	Windows 10, Linux Windows 7 (Only for 6th Gen Skylake)
Drivers	Visit
Bios	Visit
